Derived type to manage a cubed-sphere 2D computational domain. More...

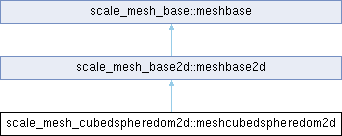

Inheritance diagram for scale_mesh_cubedspheredom2d::meshcubedspheredom2d:

Public Member Functions
procedure	init (this, negx, negy, rplanet, refelem, nlocalmeshperprc, nproc, myrank)
procedure	final (this)
procedure	generate (this)
procedure	assigndomid (this, nprcx_lc, nprcy_lc, tileid_table, panelid_table, pi_table, pj_table)
Public Member Functions inherited from scale_mesh_base2d::meshbase2d
procedure(meshbase2d_generate), deferred	generate meshbase2d_generate
procedure	getlocalmesh (this, id, ptr_lcmesh)
Public Member Functions inherited from scale_mesh_base::meshbase
procedure(meshbase_get_localmesh), deferred	getlocalmesh meshbase_get_localmesh
procedure	setdiminfo (this, dimid, name, unit, desc, positive_down)

Public Attributes
integer	negx
	Number of elements in X-direction in a panel of cubed-sphere mesh.
integer	negy
	Number of elements in Y-direction in a panel of cubed-sphere mesh.
real(rp), public	xmin_gl
	Minimum X-coordinate in a panel of cubed-sphere mesh.
real(rp), public	xmax_gl
	Maximum X-coordinate in a panel of cubed-sphere mesh.
real(rp), public	ymin_gl
	Minimum Y-coordinate in a panel of cubed-sphere mesh.
real(rp), public	ymax_gl
	Maximum Y-coordinate in a panel of cubed-sphere mesh.
integer, dimension(:,:,:), allocatable	rcdomijp2lcmeshid
	Mapping from (i,j,panel) to local mesh ID.
real(rp)	rplanet
	Planetary radius.
integer	halosize_1d
	Halo size in 1D direction.
Public Attributes inherited from scale_mesh_base2d::meshbase2d
type(localmesh2d), dimension(:), allocatable	lcmesh_list
	Array of local meshes in each MPI process.
type(elementbase2d), pointer	refelem2d
	Pointer to an object with a reference element for 2D.
Public Attributes inherited from scale_mesh_base::meshbase
integer	local_mesh_num
	Number of local meshes in each MPI process.
integer	prc_num
	Number of MPI processes.
integer	local_mesh_num_global
	Total number of local meshes across all MPI processes.
integer, dimension(:,:), allocatable	tileid_globalmap
integer, dimension(:,:), allocatable	tilefaceid_globalmap
integer, dimension(:,:), allocatable	tilepanelid_globalmap
integer, dimension(:), allocatable	tileid_global2localmap
integer, dimension(:), allocatable	prcrank_globalmap
class(elementbase), pointer	refelem
	Pointer to an object with a reference element.
type(meshdiminfo), dimension(:), allocatable	diminfo
	Array of information for each dimension.
real(rp)	dom_vol
	Total volume of the computational domain.
logical	isgenerated
	Flag whether the mesh is generated.

Detailed Description

Derived type to manage a cubed-sphere 2D computational domain.

Definition at line 41 of file scale_mesh_cubedspheredom2d.F90.

Member Function/Subroutine Documentation

◆ init()

procedure scale_mesh_cubedspheredom2d::meshcubedspheredom2d::init	(	class(meshcubedspheredom2d), intent(inout)	this,
		integer, intent(in)	negx,
		integer, intent(in)	negy,
		real(rp), intent(in)	rplanet,
		type(quadrilateralelement), intent(in), target	refelem,
		integer, intent(in)	nlocalmeshperprc,
		integer, intent(in), optional	nproc,
		integer, intent(in), optional	myrank )

Definition at line 55 of file scale_mesh_cubedspheredom2d.F90.

◆ final()

procedure scale_mesh_cubedspheredom2d::meshcubedspheredom2d::final ( class(meshcubedspheredom2d), intent(inout) this )

Definition at line 56 of file scale_mesh_cubedspheredom2d.F90.

◆ generate()

procedure scale_mesh_cubedspheredom2d::meshcubedspheredom2d::generate ( class(meshcubedspheredom2d), intent(inout), target this )

Definition at line 57 of file scale_mesh_cubedspheredom2d.F90.

◆ assigndomid()

procedure scale_mesh_cubedspheredom2d::meshcubedspheredom2d::assigndomid	(	class(meshcubedspheredom2d), intent(inout), target	this,
		integer, intent(in)	nprcx_lc,
		integer, intent(in)	nprcy_lc,
		integer, dimension(this%local_mesh_num, this%prc_num), intent(out)	tileid_table,
		integer, dimension(this%local_mesh_num*this%prc_num), intent(out)	panelid_table,
		integer, dimension(this%local_mesh_num*this%prc_num), intent(out)	pi_table,
		integer, dimension(this%local_mesh_num*this%prc_num), intent(out)	pj_table )
