2D thermal convection (Benard-Rayleigh problem)


  • The left figure is temperature distribution of boussinesq fluid heated from lower boundary (Benard-Rayleigh problem).
  • On the lower and upper boundary, temperature is fixed and tangential stress is equal to zero (free-slip boundary condition).
  • The horizontal boundary condition is cyclic.
  • Click figure to start movie.
  • Source code

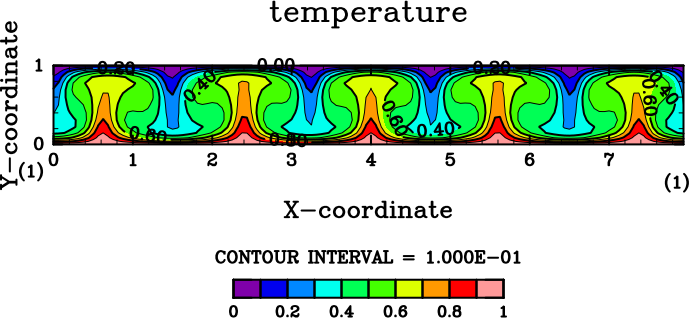

  • The same as upper figure but with large horizontal domain.
  • Click figure to start movie.
  • Source code

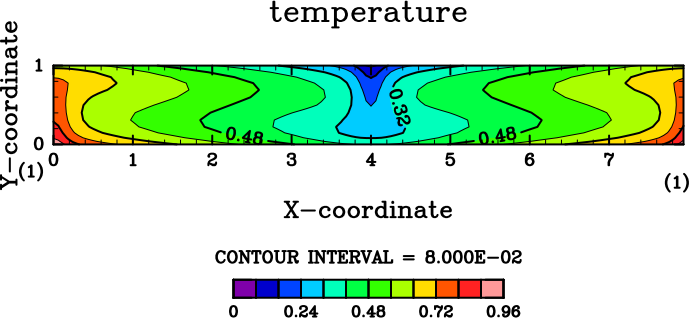

  • The left figure is temperature distribution of boussinesq fluid heated from lower boundary with constant heat flux.
  • Click figure to start movie.
  • The aspect ratio of convection cell becomes large as time goes on.
  • Source code

References

  • Chandrasekhar, S., 1961 : Hydrodynamic and Hdromagnetic stability. Oxford University Press.
  • Ishiwatari, M., Takehiro, S., Hayashi, Y.-Y., 1994 : The effects of thermal conditions on the cell sizes of two-dimensional convection. J. Fluid Mech., 281, 33--50.
