Meridional circulation advection test

Model

• dcpam5-20150804

But, compile options, -DSLTT2D1DMONOTONIC and -DAXISYMMETRY, are used.

Setting and results

Common settings

• Advection test by Earth's Hadley type meridional circulation

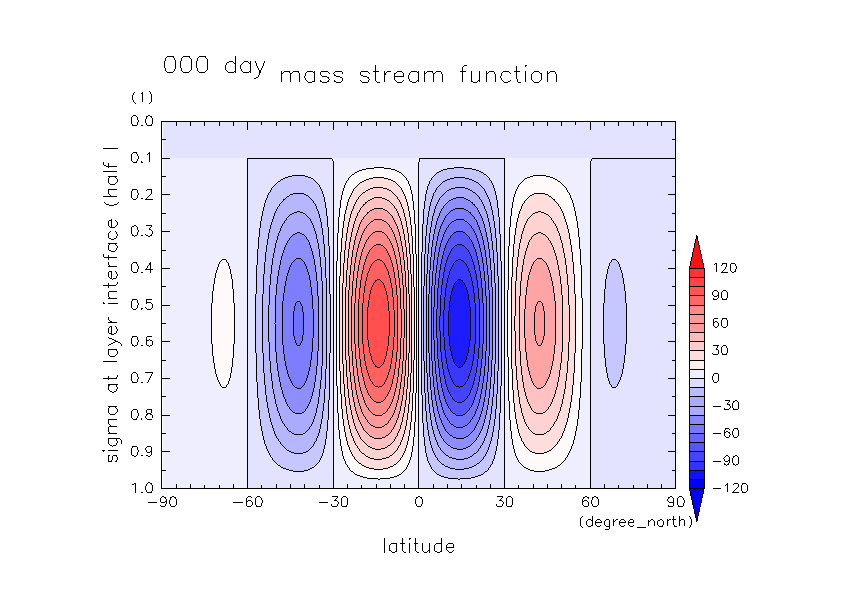

  • Wind velocities are assumed (mass stream function(x1e10)).
  • No Physical processes.
  • MEMO:
    • This is similar to Case 1-2 described in this document.
• Integration period: 30 days
• Resolution: T170L100
  • namelist file: Initial condition, Execution
  • Results

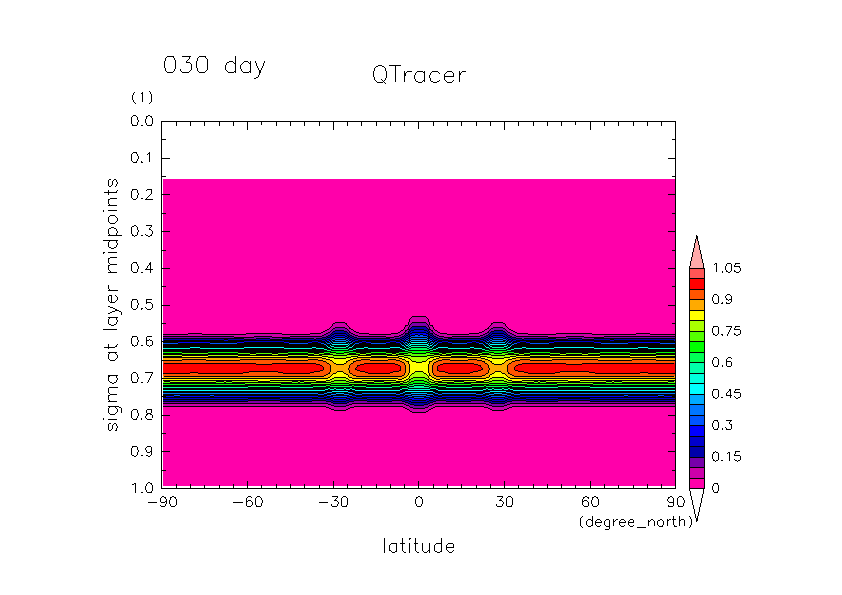

    • Mixing ratio at sigma=0.6
      • Using mass fixer (animation), (30th day)

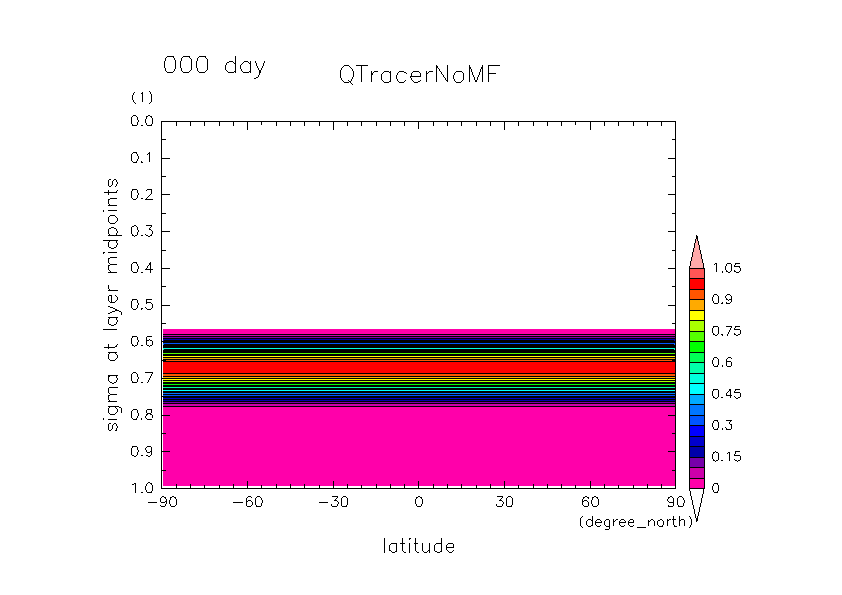

      • No mass fixer (animation), (30th day)

Example of visualization scripts using GPhys

• Scripts
