Additional colormaps for DCL

Last modified: 2008-02-07 01:37:58 JST

まとめてダウンロード: dcl-add-clrmap-20080131.tar.gz
※colormap_76.x11, colormap_77.x11, colormap_78.x11 を変更しました. ご注意ください.

が含まれています.

使い方は以下のとおりです. (DCLのインストール先は適宜読み替えてください)

  1. 資源を展開
    % tar zxvf dcl-add-clrmap-20080131.tar.gz

  2. dcl-5.3.3.tar.gz を別途とってきて, パッチをあててインストール
    (dcl-5.3.3-C.tar.gz の場合は cdcl-swcmll.patch をあててください)
    % tar zxvf dcl-5.3.3.tar.gz
    % cd dcl-5.3.3
    % patch -p1 < ../dcl-add-clrmap-20080131/dcl-swcmll.patch
    % ./configure
    % make
    # make install

  3. cmaplist を上書き, カラーマップを追加
    (dcl-5.3.3-C の場合は /usr/local/lib/cdcldbase/ になります)
    % cd ../dcl-add-clrmap-20080131
    # cp cmaplist /usr/local/lib/dcldbase/
    # cp colormap_* /usr/local/lib/dcldbase/

この追加カラーマップは, 以下のソフトウェア, ウェブサイトを参考に作成しました. 感謝します.

ギャラリー

DCL標準添付カラーマップ

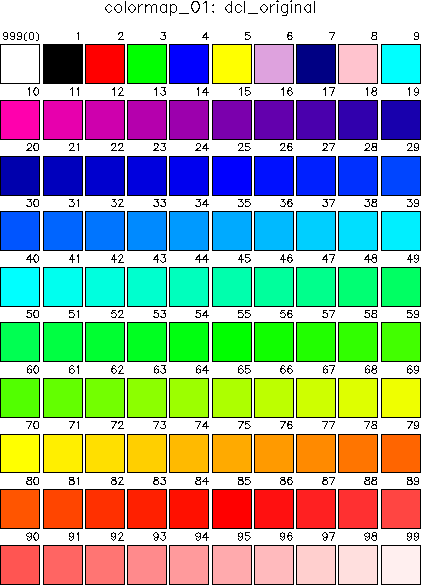

colormap_01
dcl_original

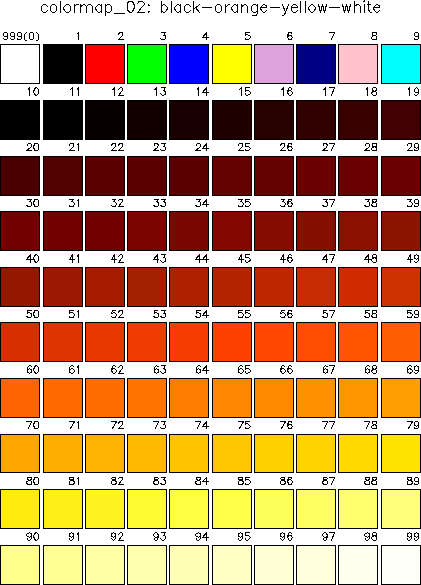

colormap_02
black-orange-yellow-white

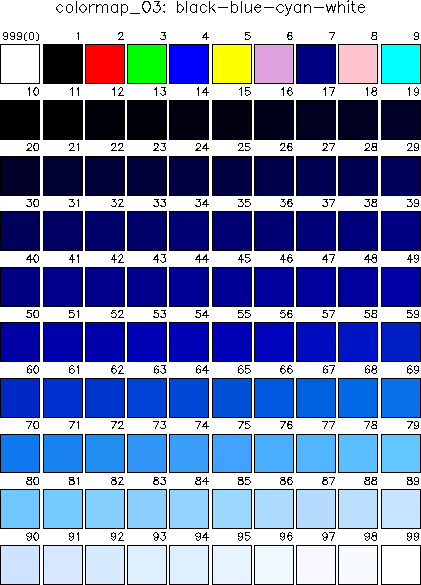

colormap_03
black-blue-cyan-white

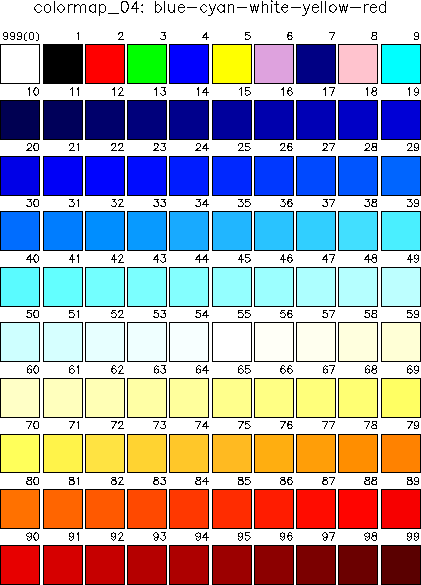

colormap_04
blue-cyan-white-yellow-red


colormap_05
gray_scale

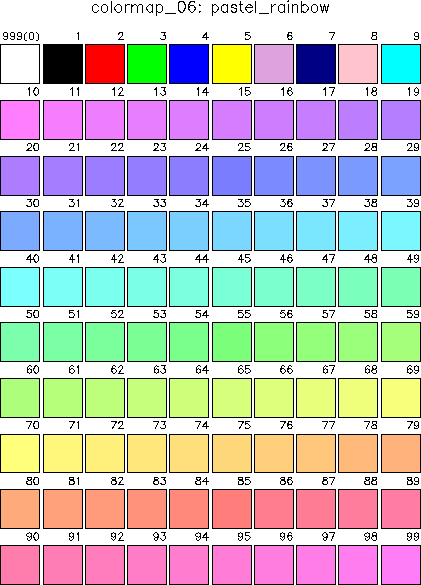

colormap_06
pastel_rainbow

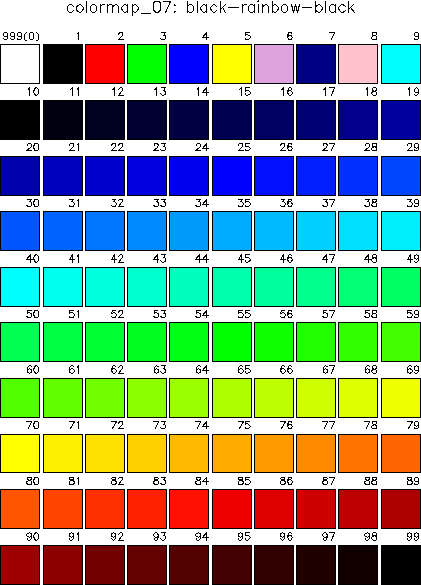

colormap_07
black-rainbow-black

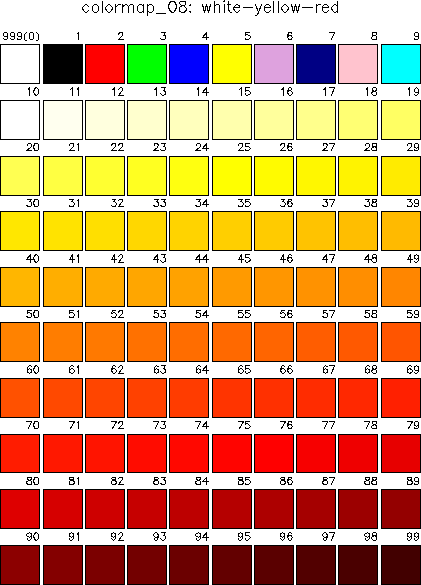

colormap_08
white-yellow-red

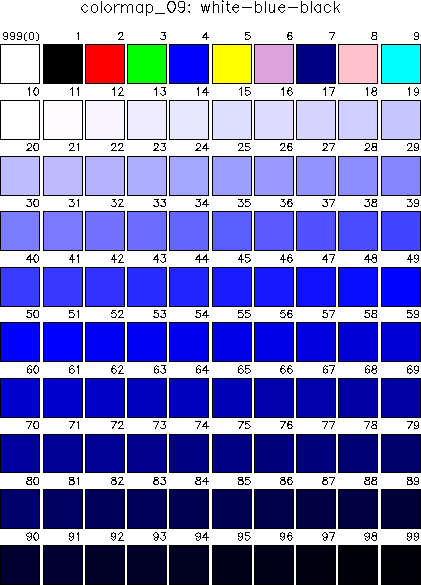

colormap_09
white-blue-black

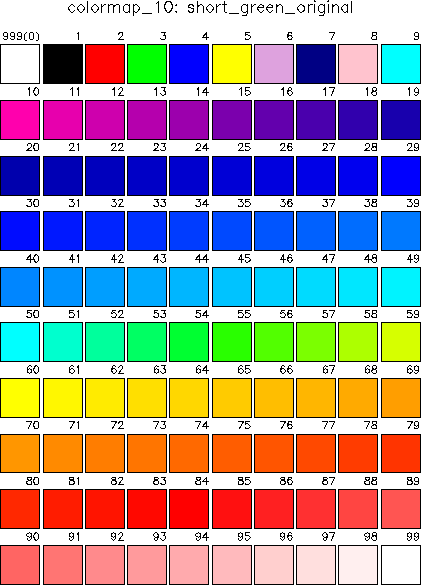

colormap_10
short_green_original

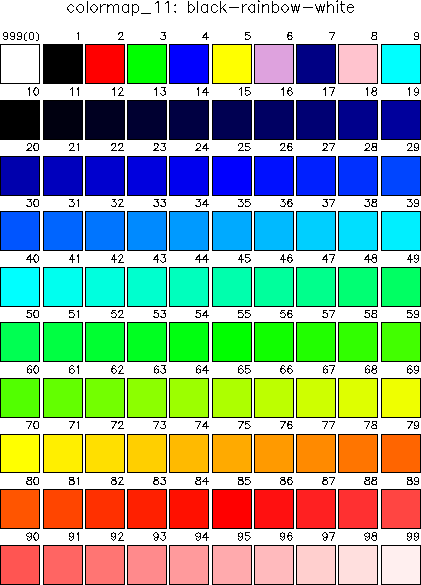

colormap_11
black-rainbow-white

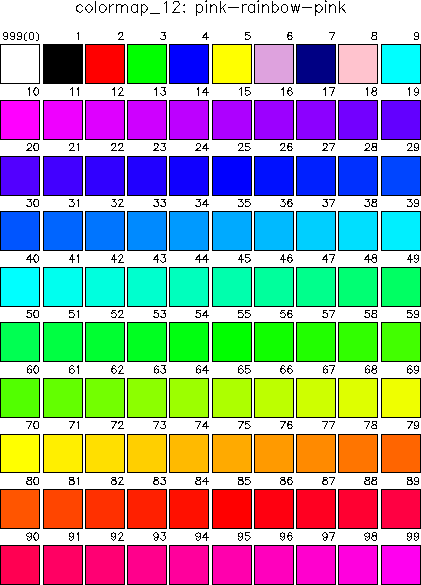

colormap_12
pink-rainbow-pink

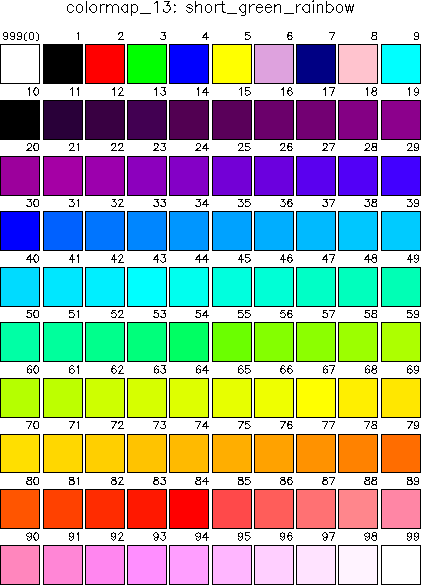

colormap_13
short_green_rainbow

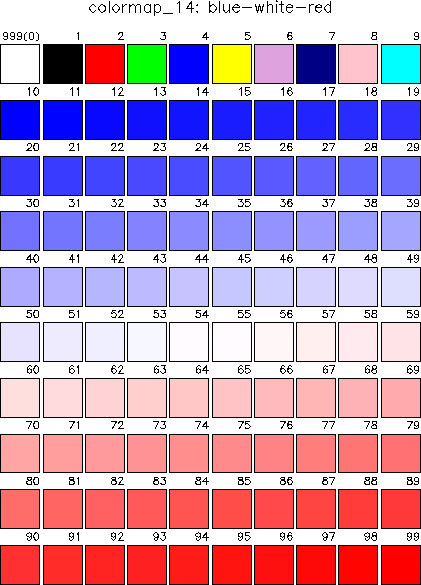

colormap_14
blue-white-red


追加カラーマップ

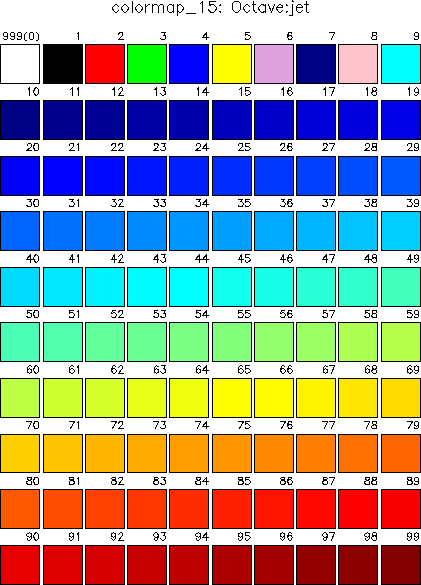

colormap_15
Octave:jet

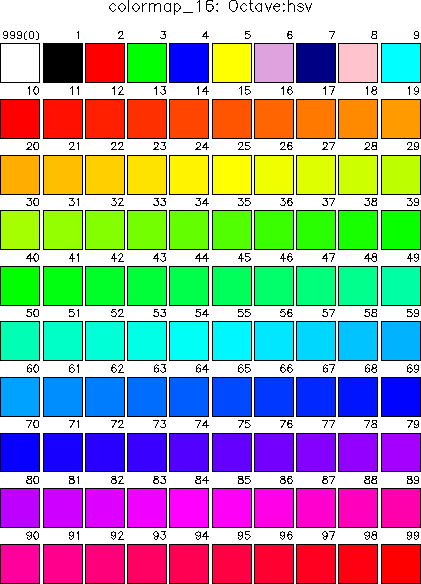

colormap_16
Octave:hsv

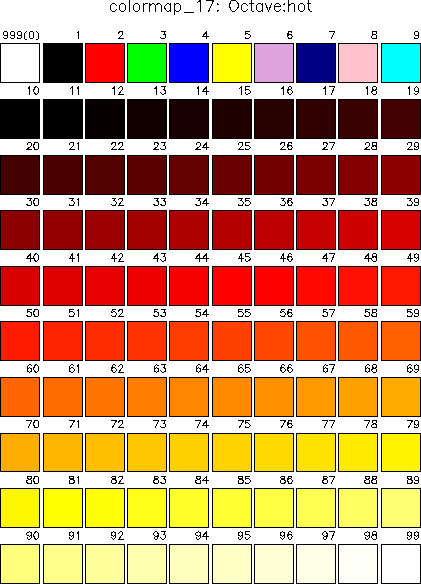

colormap_17
Octave:hot

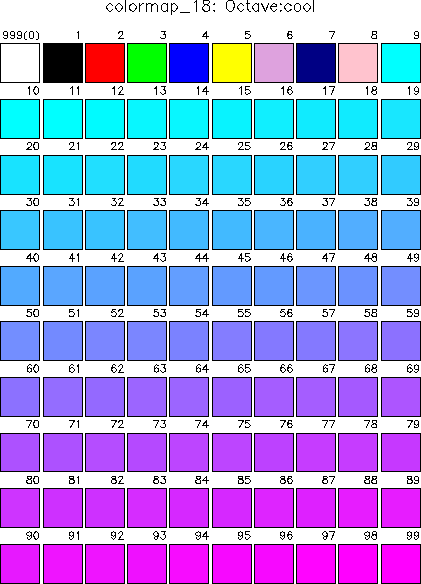

colormap_18
Octave:cool

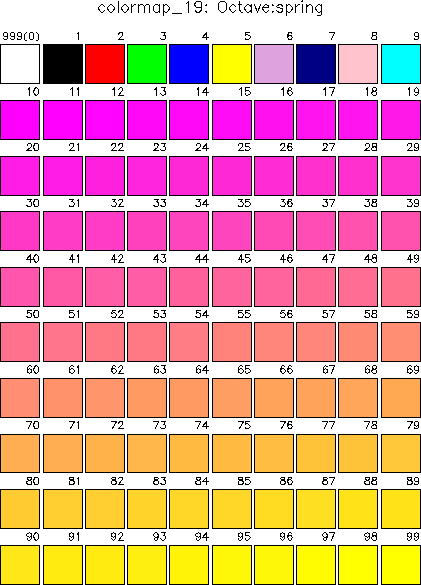

colormap_19
Octave:spring


colormap_20
Octave:summer


colormap_21
Octave:autumn

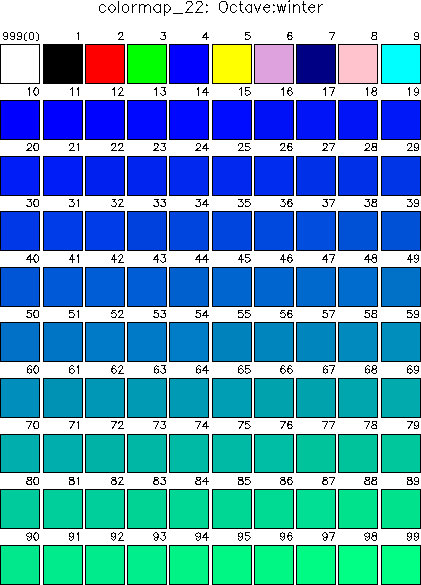

colormap_22
Octave:winter

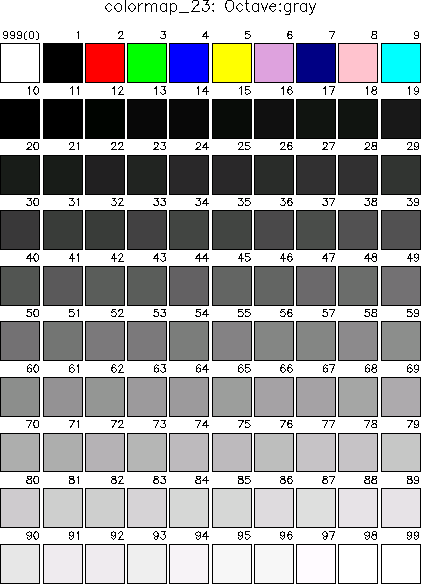

colormap_23
Octave:gray

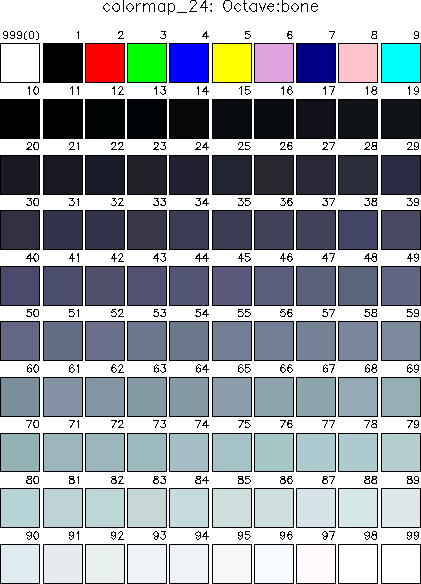

colormap_24
Octave:bone

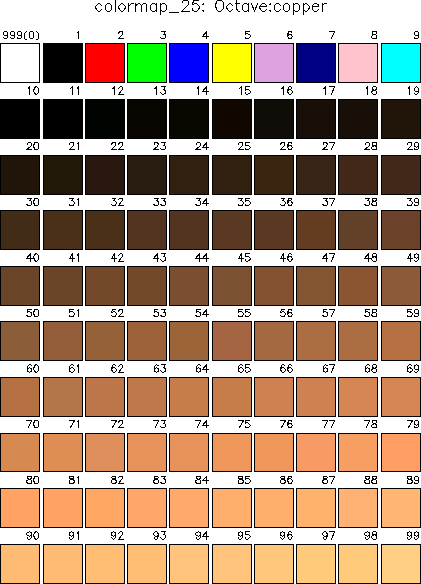

colormap_25
Octave:copper

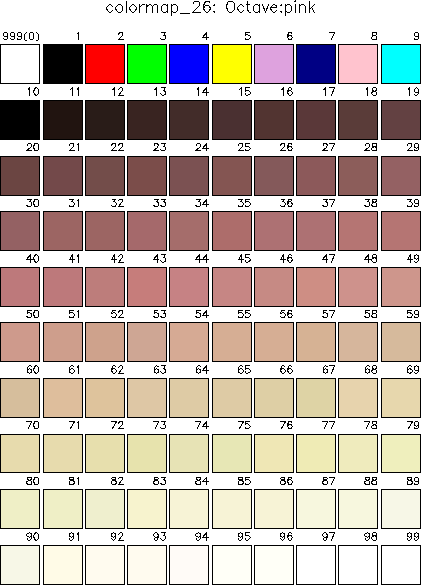

colormap_26
Octave:pink

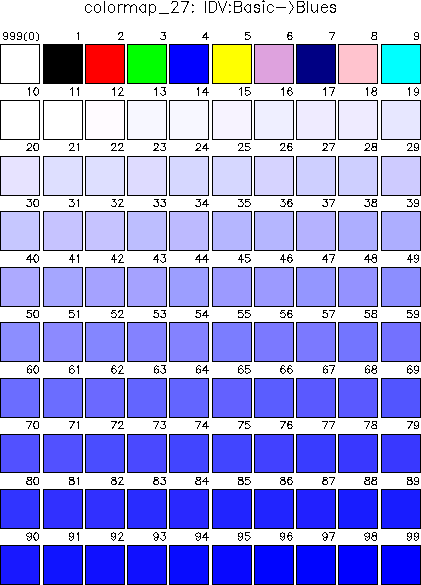

colormap_27
IDV:Basic->Blues

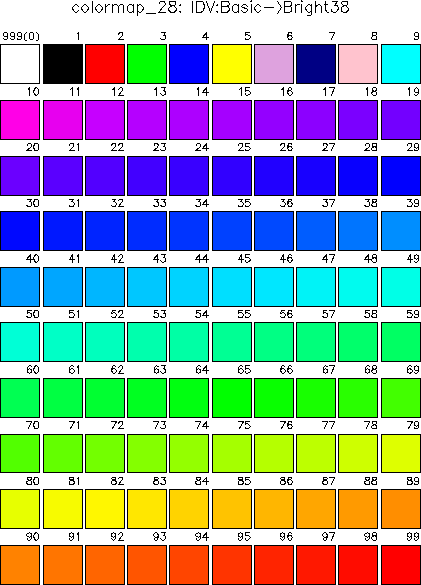

colormap_28
IDV:Basic->Bright38

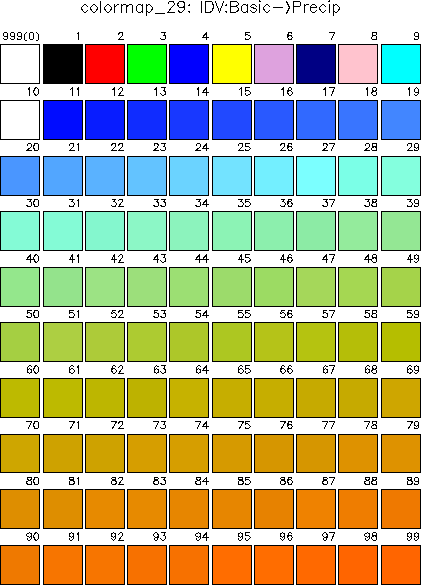

colormap_29
IDV:Basic->Precip

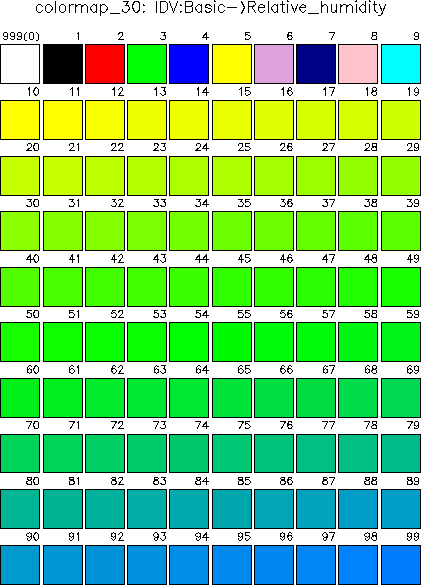

colormap_30
IDV:Basic->Relative_humidity

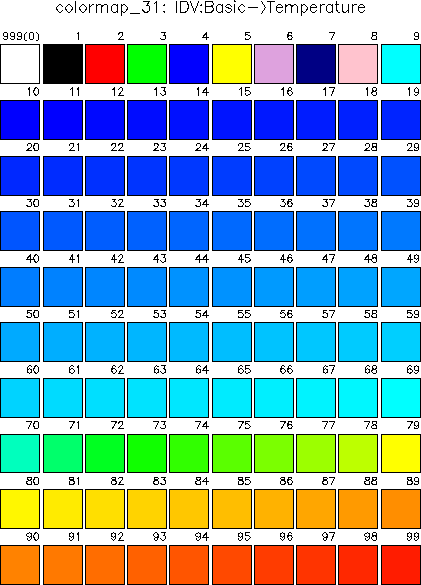

colormap_31
IDV:Basic->Temperature

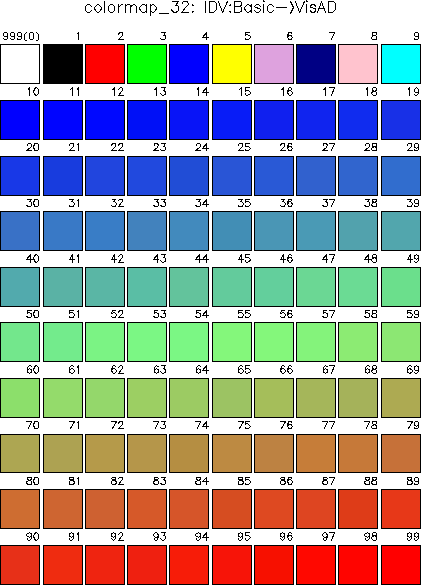

colormap_32
IDV:Basic->VisAD

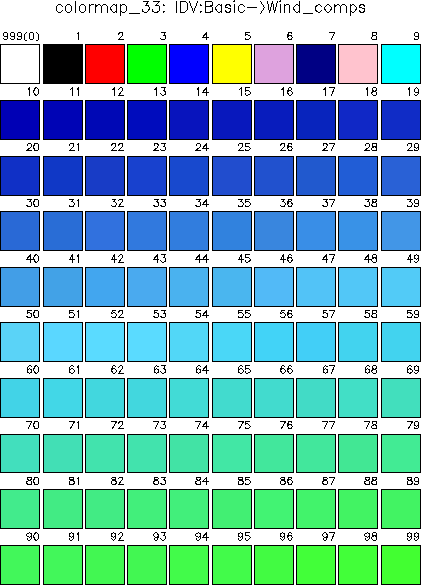

colormap_33
IDV:Basic->Wind_comps

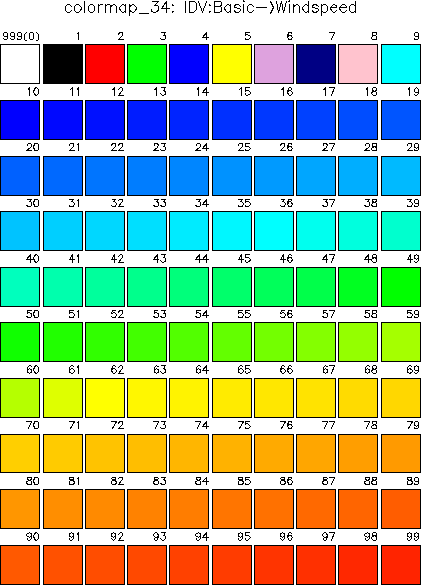

colormap_34
IDV:Basic->Windspeed

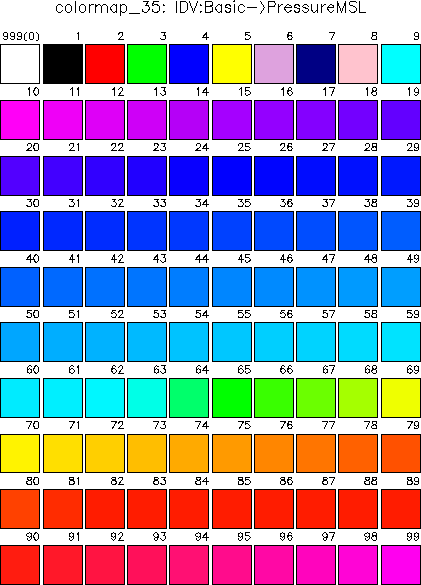

colormap_35
IDV:Basic->PressureMSL

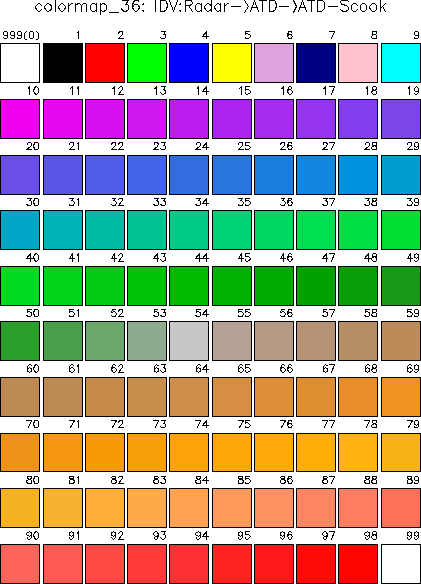

colormap_36
IDV:Radar->ATD->ATD-Scook

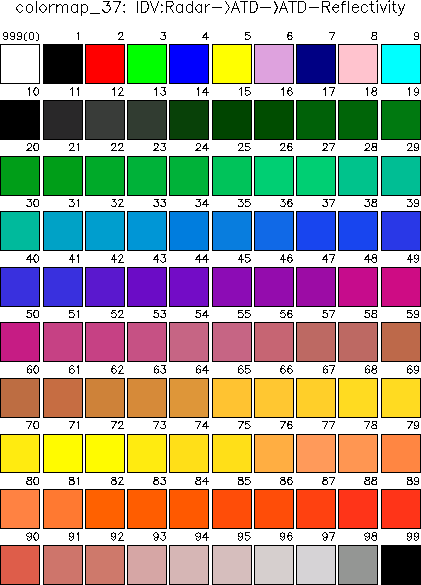

colormap_37
IDV:Radar->ATD->ATD-Reflectivity

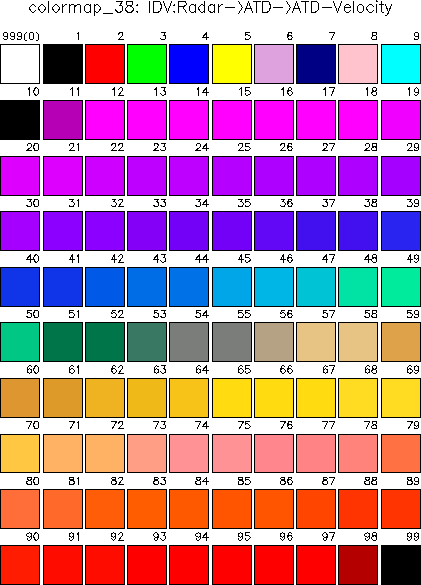

colormap_38
IDV:Radar->ATD->ATD-Velocity

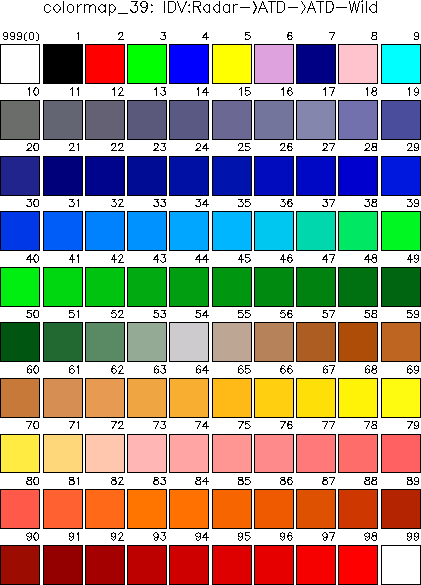

colormap_39
IDV:Radar->ATD->ATD-Wild

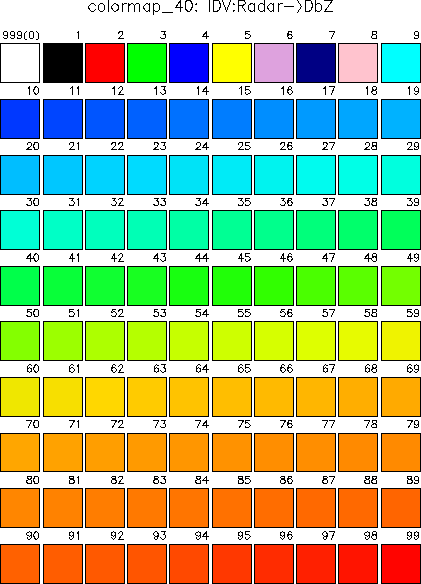

colormap_40
IDV:Radar->DbZ

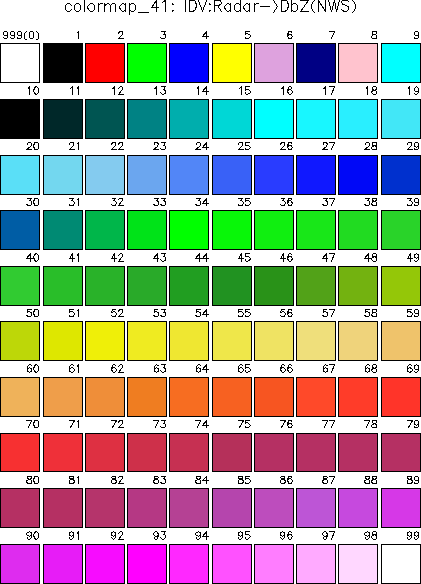

colormap_41
IDV:Radar->DbZ(NWS)

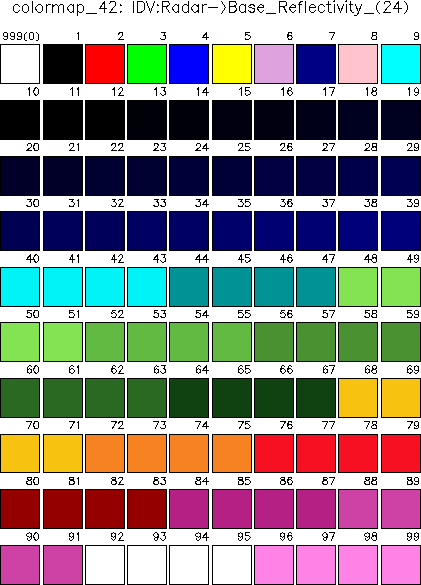

colormap_42
IDV:Radar->Base_Reflectivity_(24)

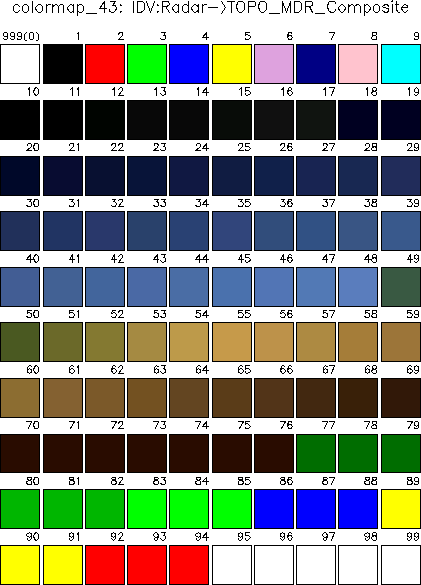

colormap_43
IDV:Radar->TOPO_MDR_Composite

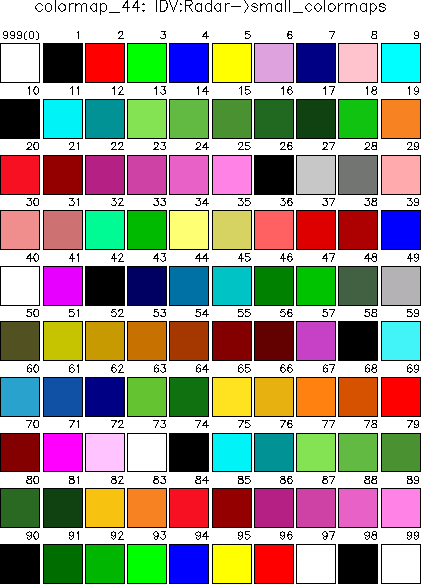

colormap_44
IDV:Radar->small_colormaps


Radar Precip



Composite Reflectivity



Radial Velocity



Echo Tops



VIL



MDR Radar

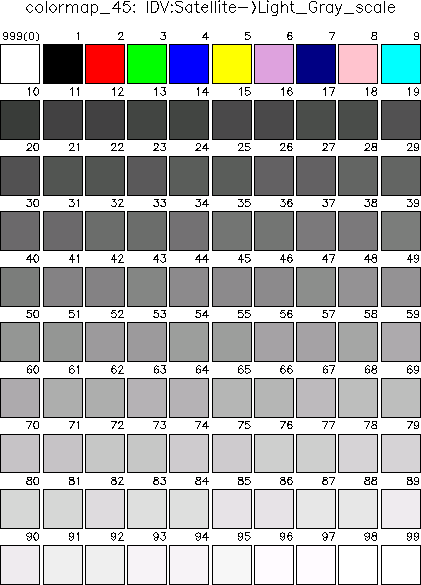

colormap_45
IDV:Satellite->Light_Gray_scale

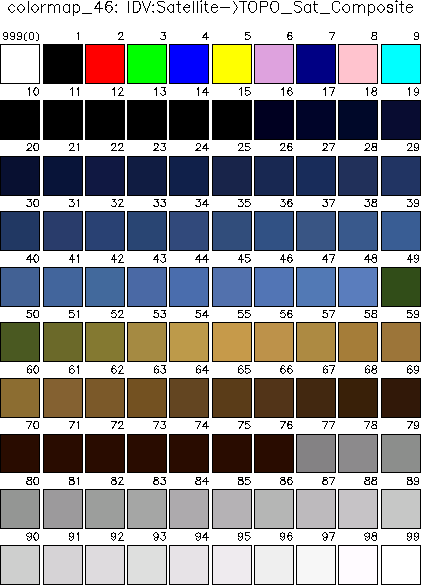

colormap_46
IDV:Satellite->TOPO_Sat_Composite

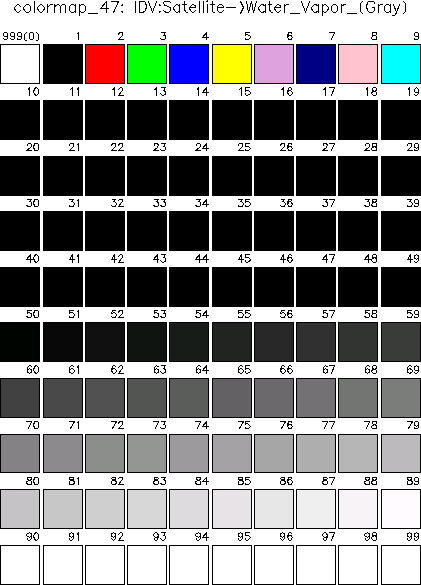

colormap_47
IDV:Satellite->Water_Vapor_(Gray)

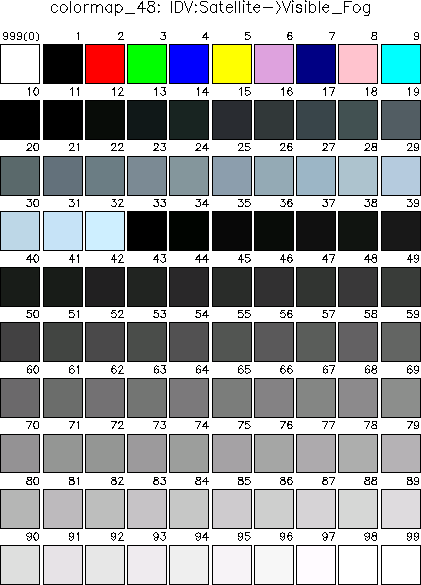

colormap_48
IDV:Satellite->Visible_Fog

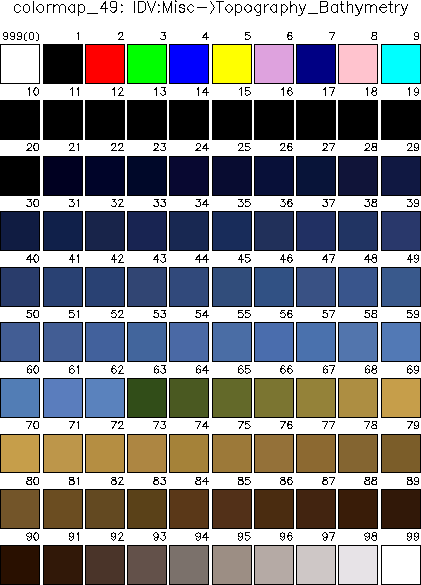

colormap_49
IDV:Misc->Topography_Bathymetry

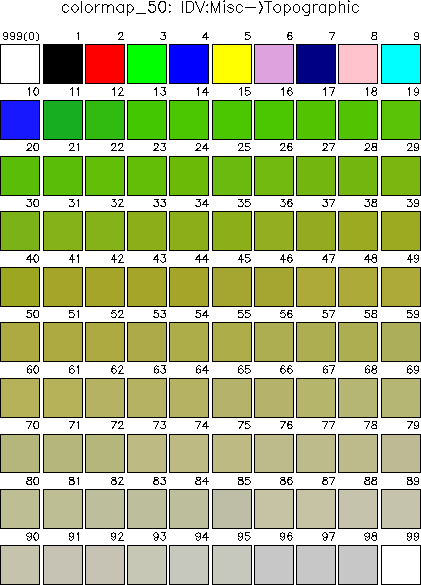

colormap_50
IDV:Misc->Topographic

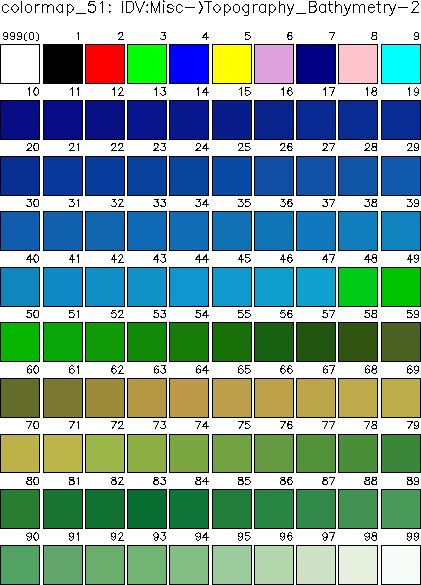

colormap_51
IDV:Misc->Topography_Bathymetry-2

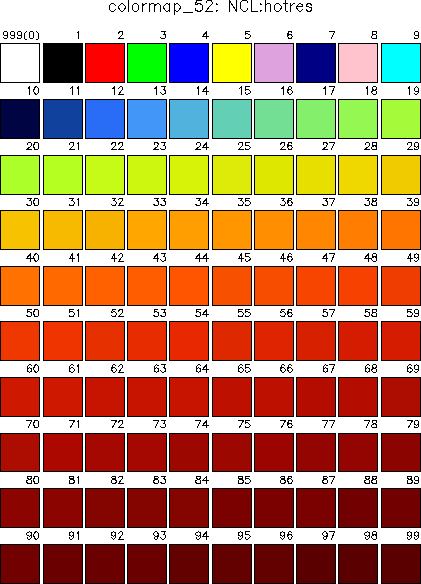

colormap_52
NCL:hotres

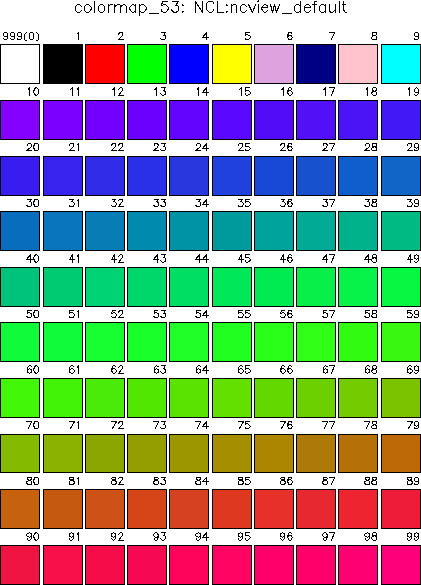

colormap_53
NCL:ncview_default

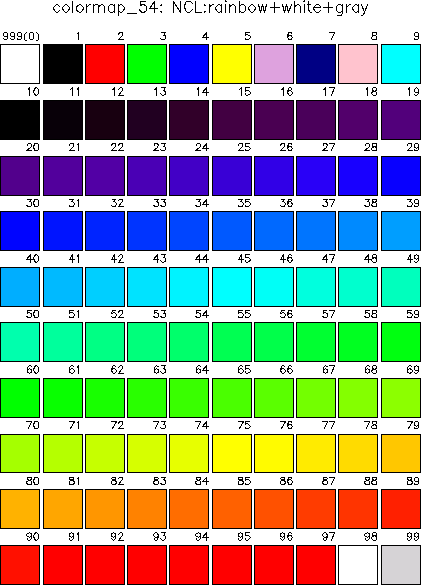

colormap_54
NCL:rainbow+white+gray

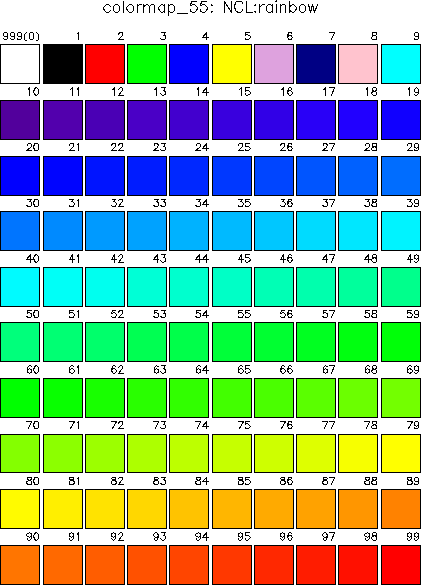

colormap_55
NCL:rainbow

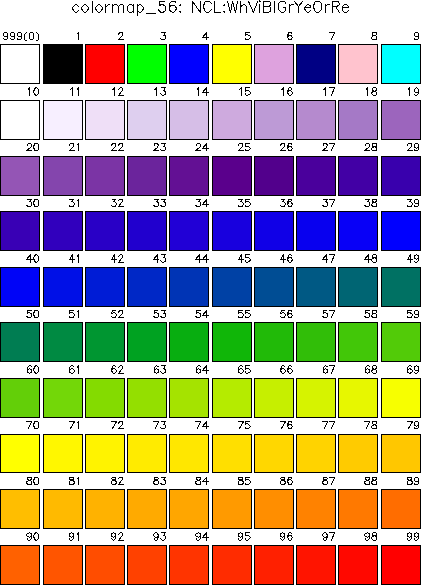

colormap_56
NCL:WhViBlGrYeOrRe

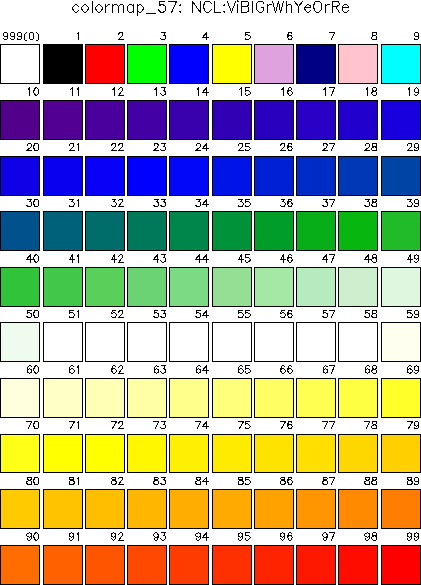

colormap_57
NCL:ViBlGrWhYeOrRe

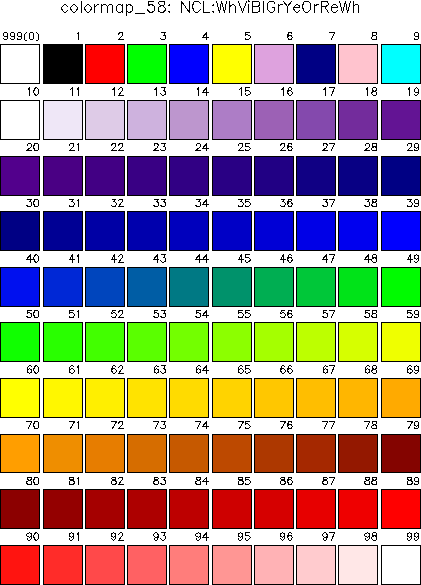

colormap_58
NCL:WhViBlGrYeOrReWh

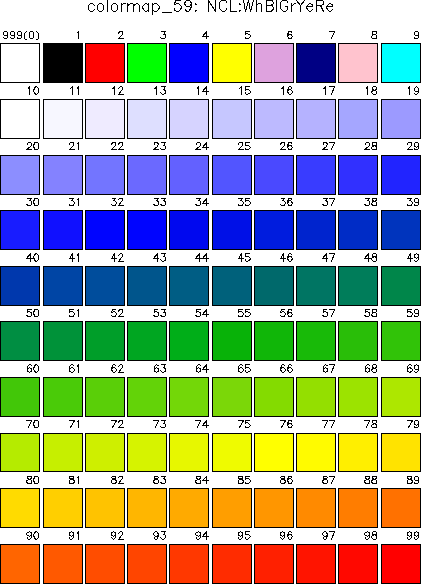

colormap_59
NCL:WhBlGrYeRe

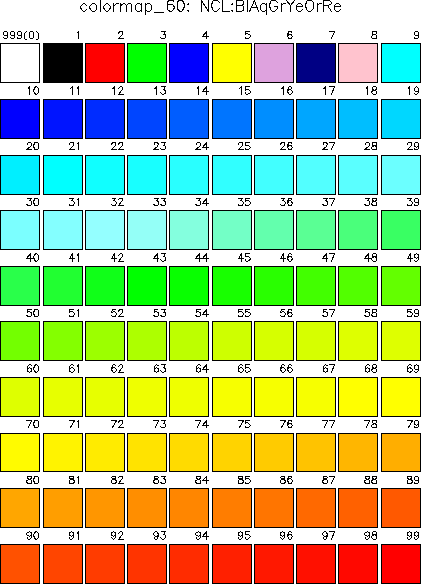

colormap_60
NCL:BlAqGrYeOrRe

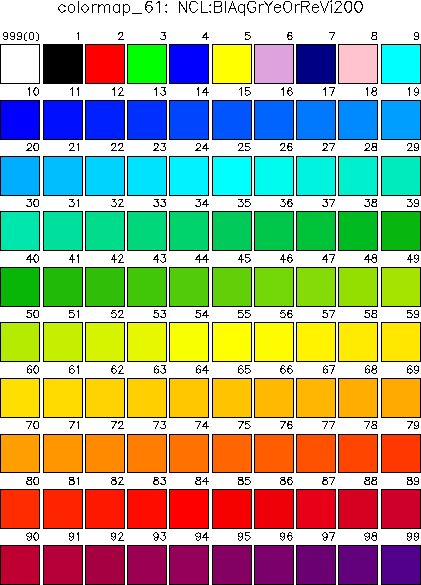

colormap_61
NCL:BlAqGrYeOrReVi200

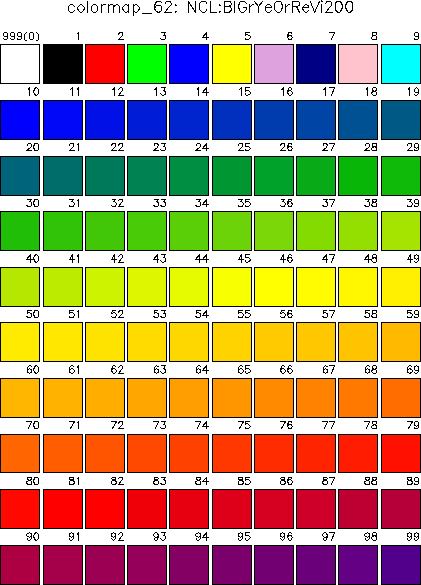

colormap_62
NCL:BlGrYeOrReVi200

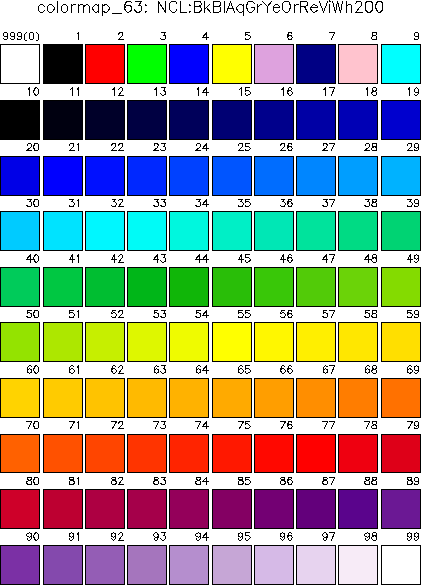

colormap_63
NCL:BkBlAqGrYeOrReViWh200

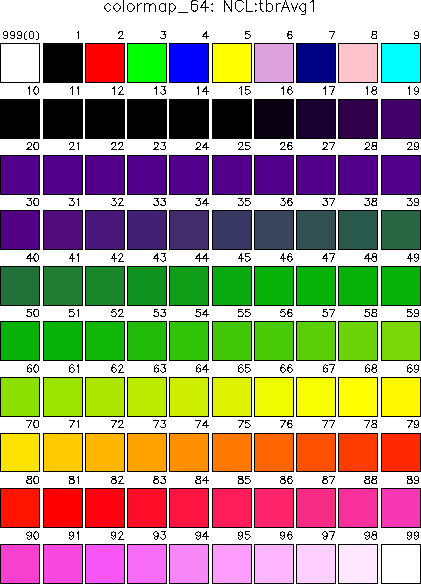

colormap_64
NCL:tbrAvg1

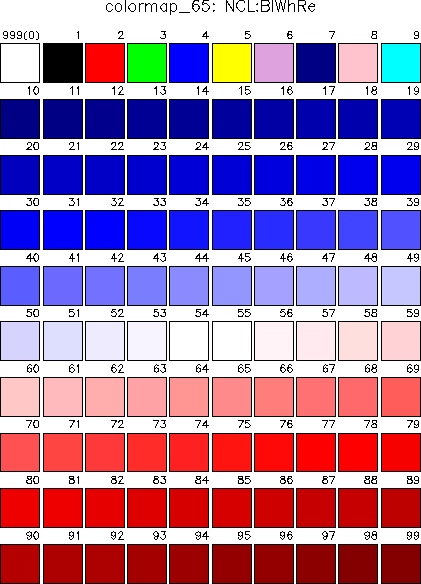

colormap_65
NCL:BlWhRe

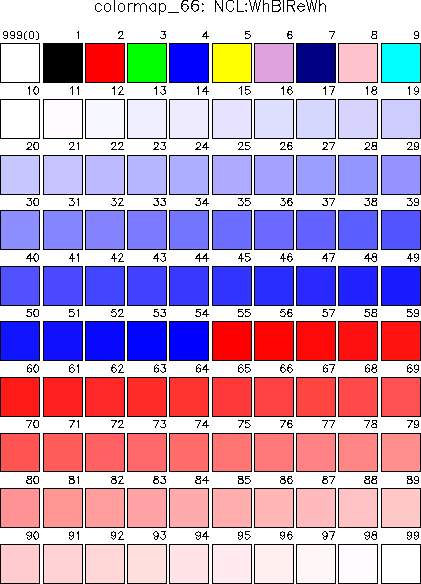

colormap_66
NCL:WhBlReWh


colormap_67
NCL:BlRe

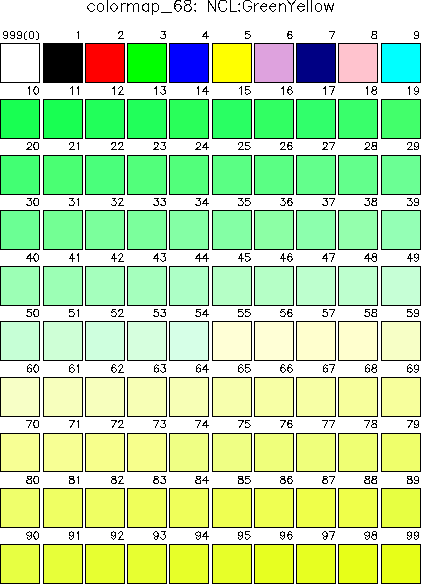

colormap_68
NCL:GreenYellow

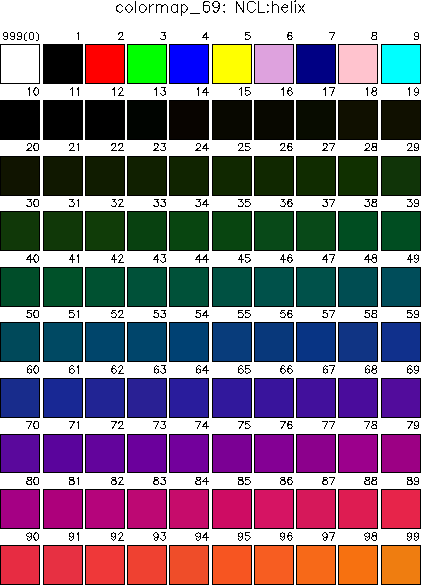

colormap_69
NCL:helix

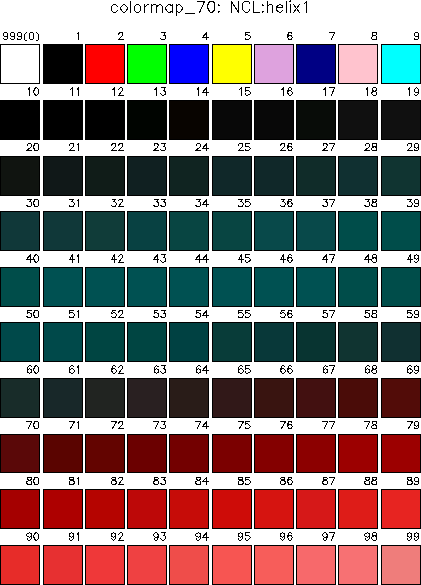

colormap_70
NCL:helix1


colormap_71
NCL:3gauss

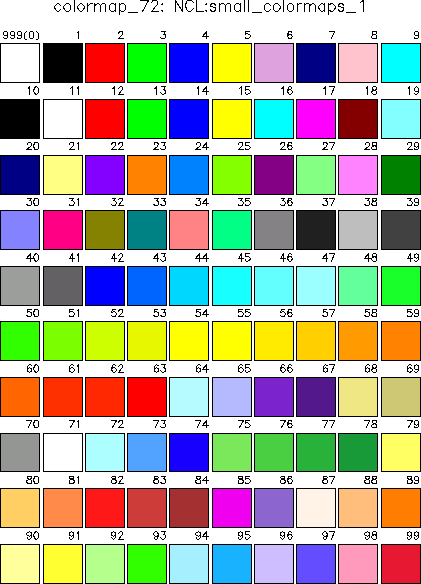

colormap_72
NCL:small_colormaps_1


default



gui_default



radar_1



Cat12

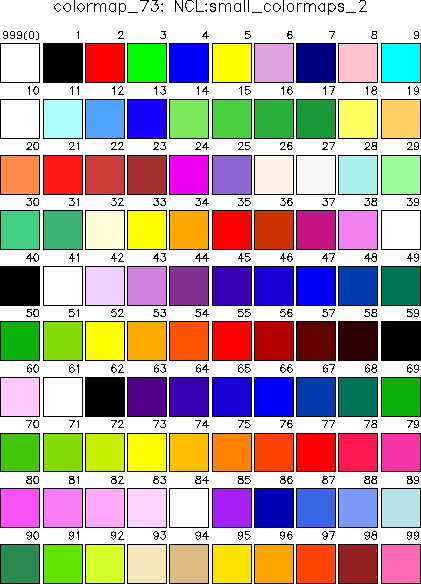

colormap_73
NCL:small_colormaps_2


prcp_1



prcp_2



prcp_3



so4_23



wgne15

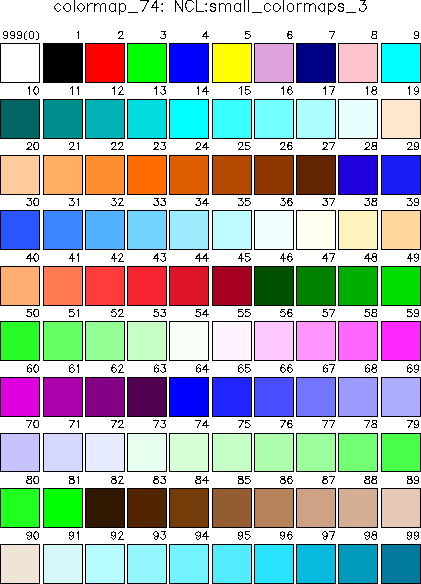

colormap_74
NCL:small_colormaps_3


BlueDarkOrange18



BlueDarkRed18



GreenMagenta18



BlueGreen18



BrownBlue18

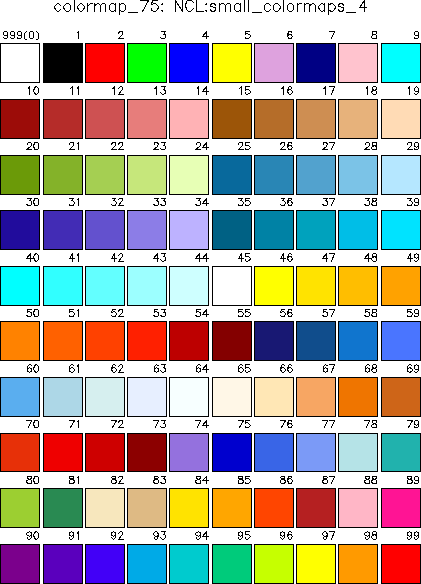

colormap_75
NCL:small_colormaps_4


StepSeq25



nrl_sirkes



posneg_2



amwg



cosam

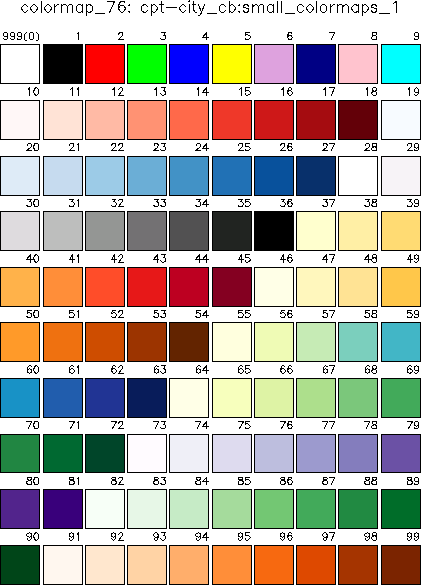

colormap_76
cpt-city_cb:small_colormaps_1


Reds 09



Blues 09



Greys 09



YlOrRd 09



YlOrBr 09



YlGnBu 09



YlGn 09



Purples 09



Greens 09



Oranges 09

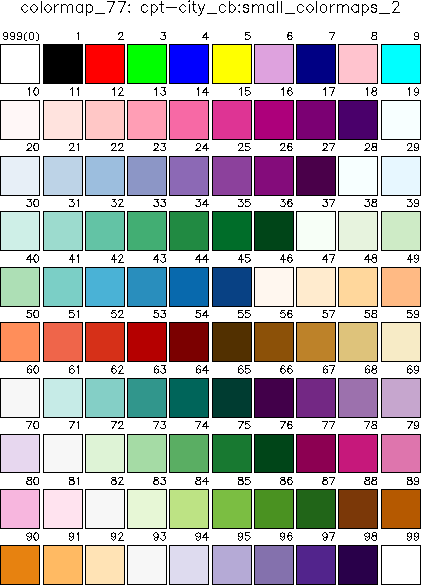

colormap_77
cpt-city_cb:small_colormaps_2


RdPu 09



BuPu 09



BuGn 09



GnBu 09



OrRd 09



BrBG 11



PRGn 11



PiYG 11



PuOr 11

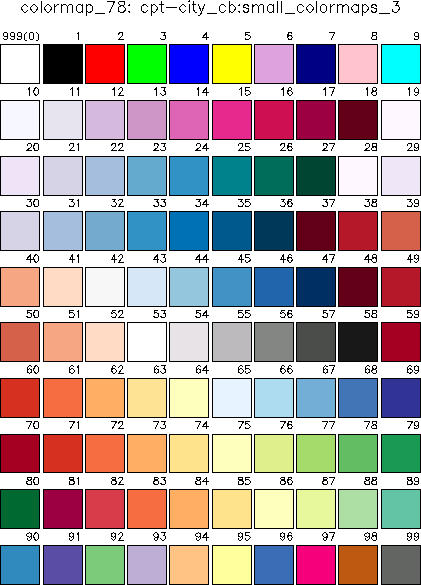

colormap_78
cpt-city_cb:small_colormaps_3


PuRd 09



PuBuGn 09



PuBu 09



RdBu 11



RdGy 11



RdYlBu 11



RdYlGn 11



Spectral 11



Accent 08
