3D サーマル実験 温位擾乱

概要

• 乾燥サーマル実験三次元
• 領域 10000m x 10000m x 10000m
• 格子点数が 100x のとき 長いdt 1 sec.
• 50x のとき 長いdt 2 sec.
• 25x のとき 長いdt 4 sec.

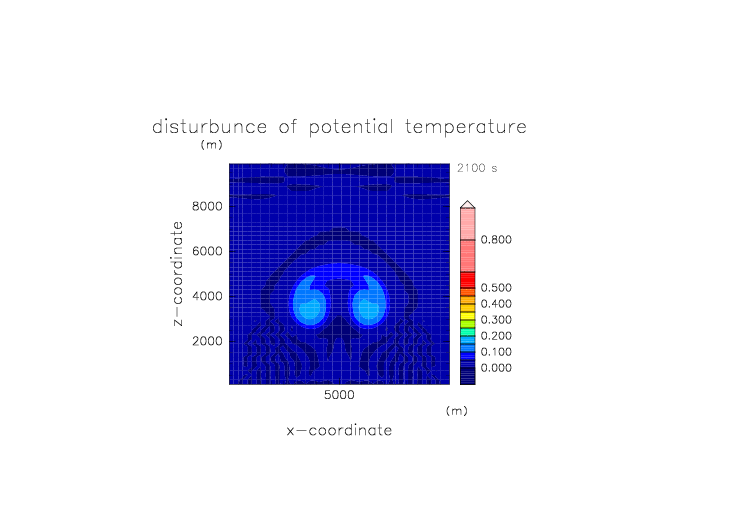

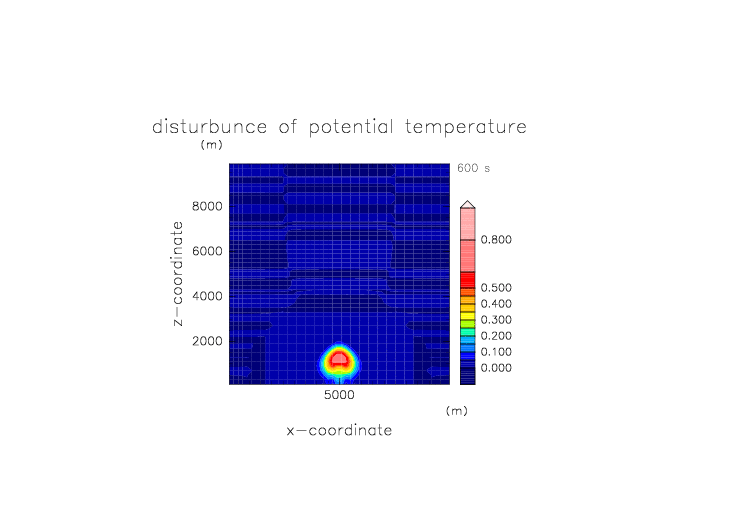

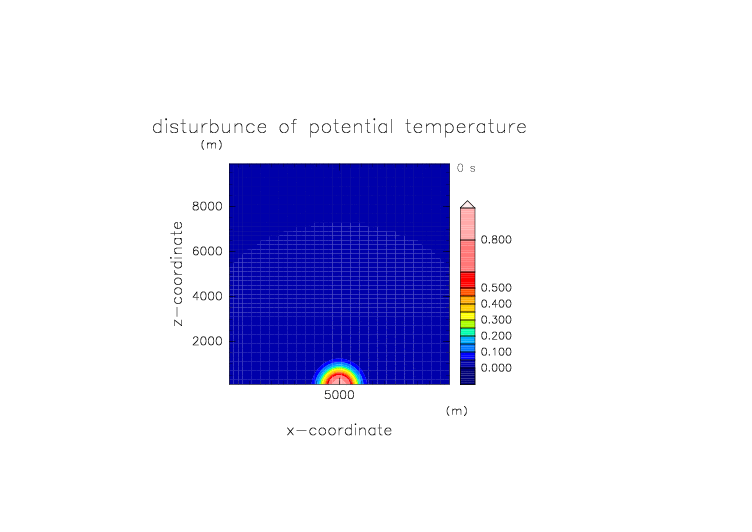

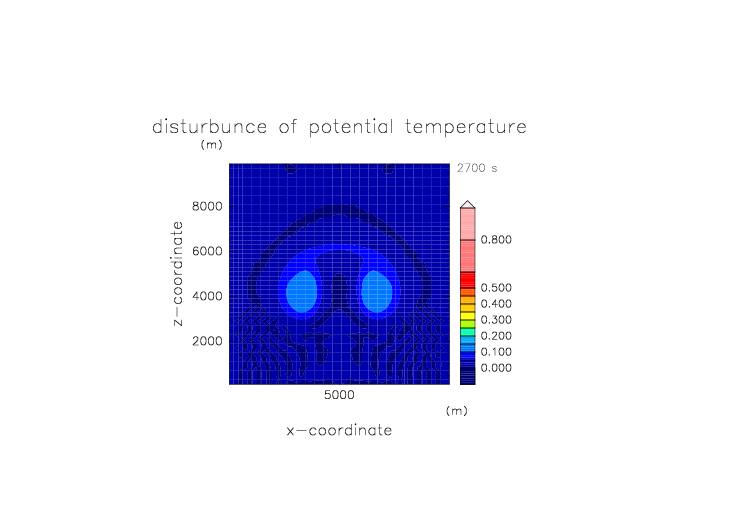

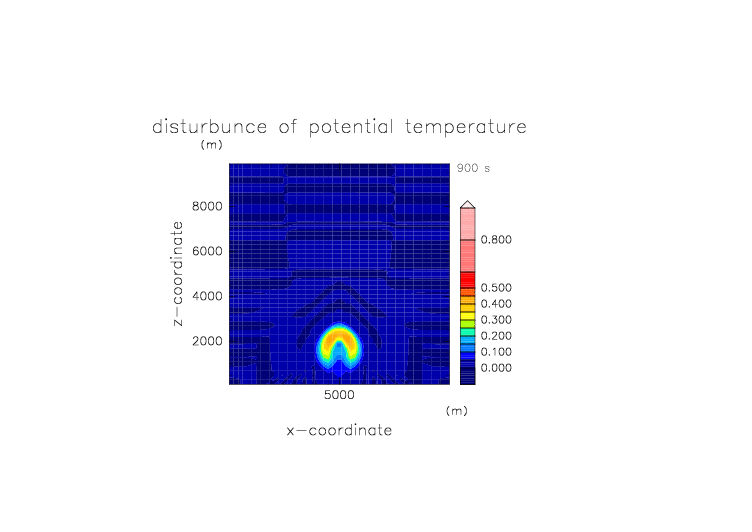

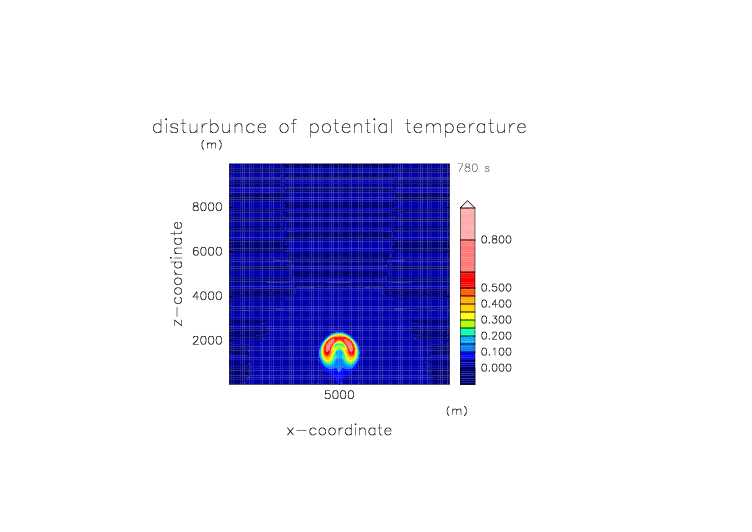

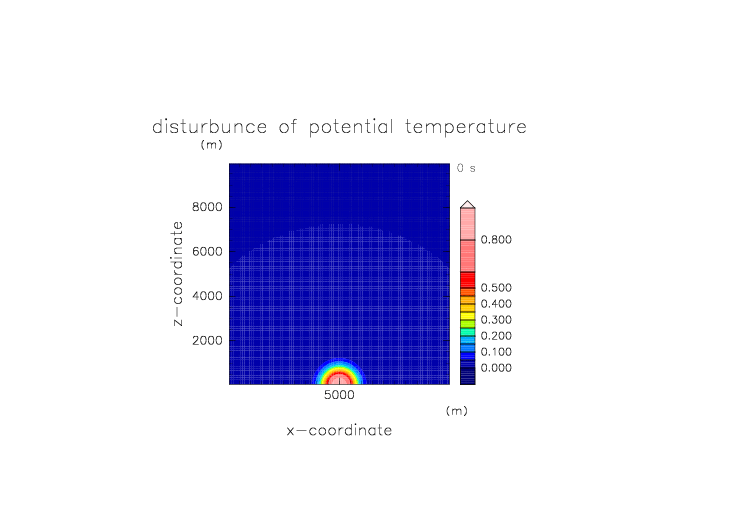

格子点 100x100x100

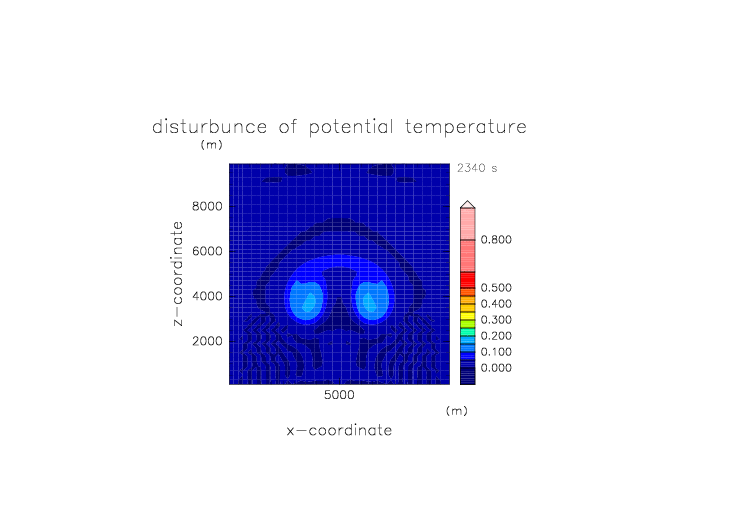

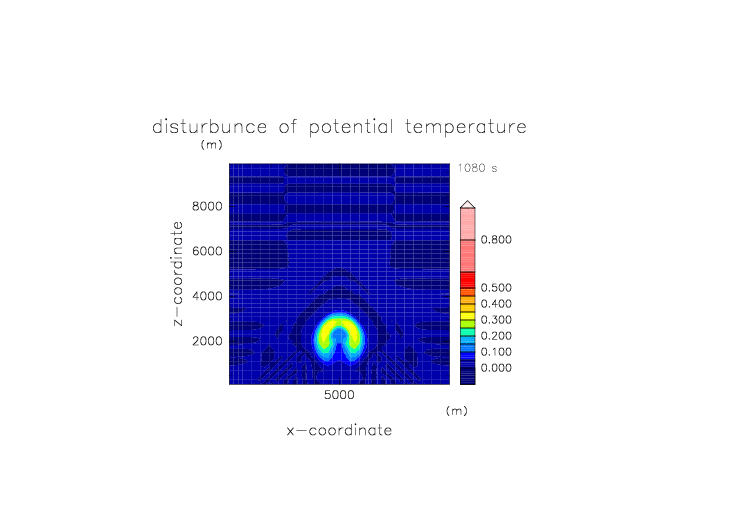

格子点50x50x50

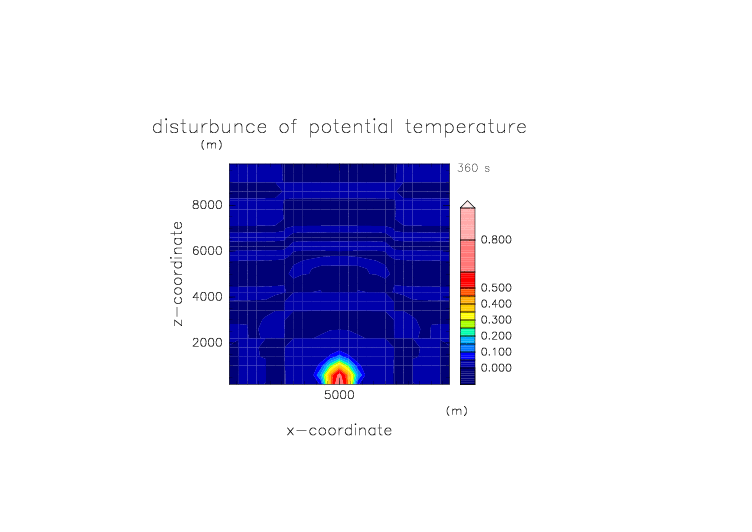

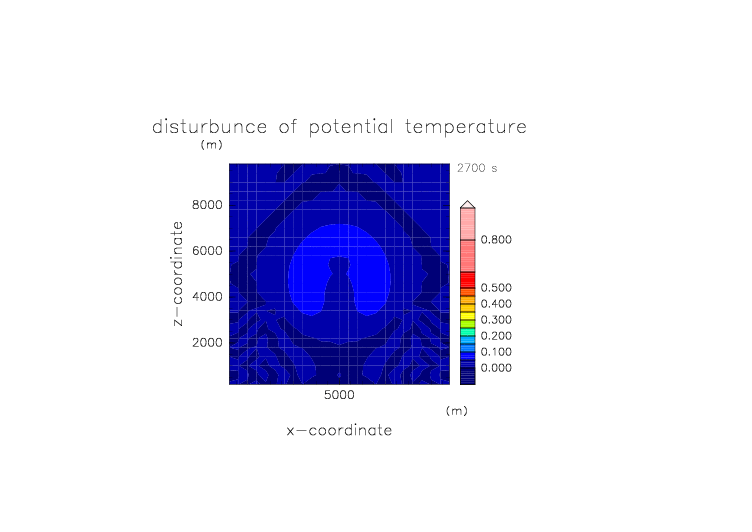

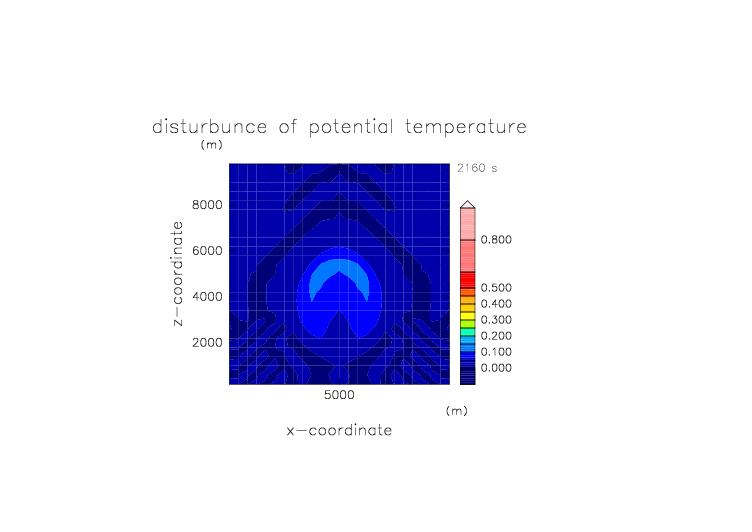

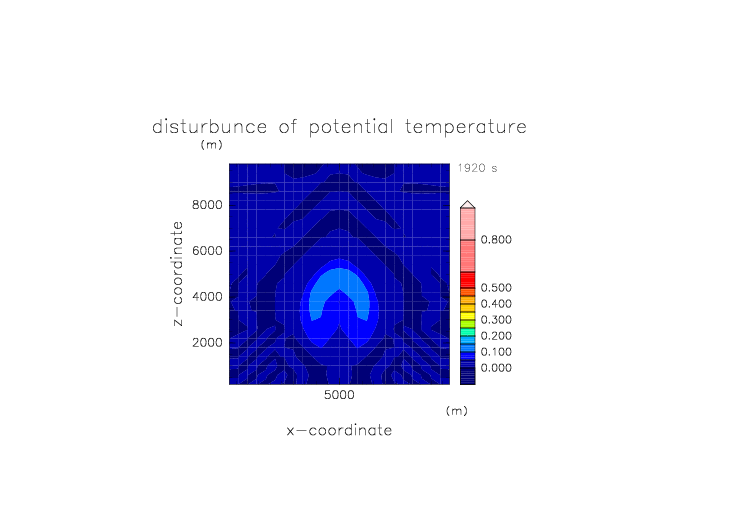

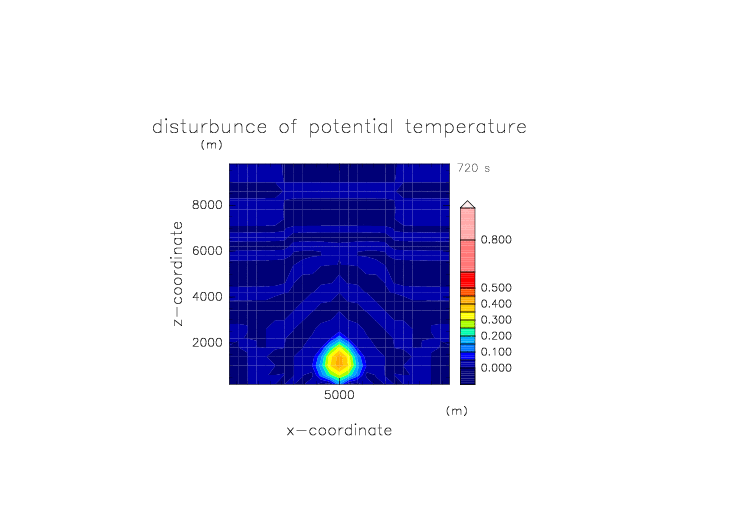

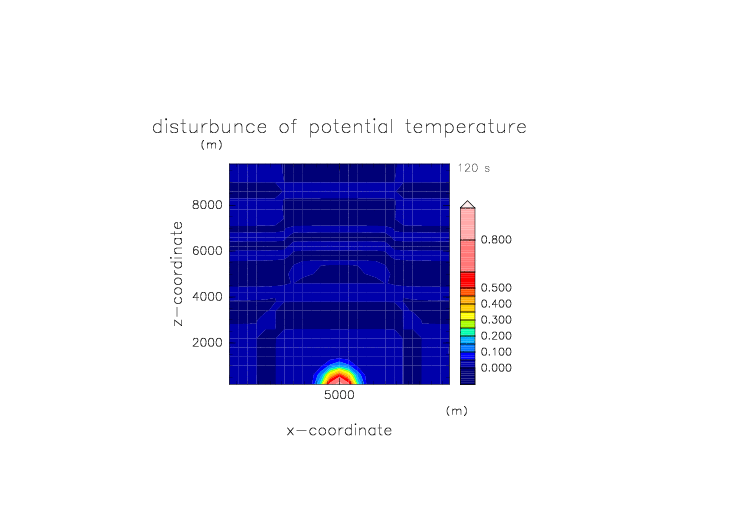

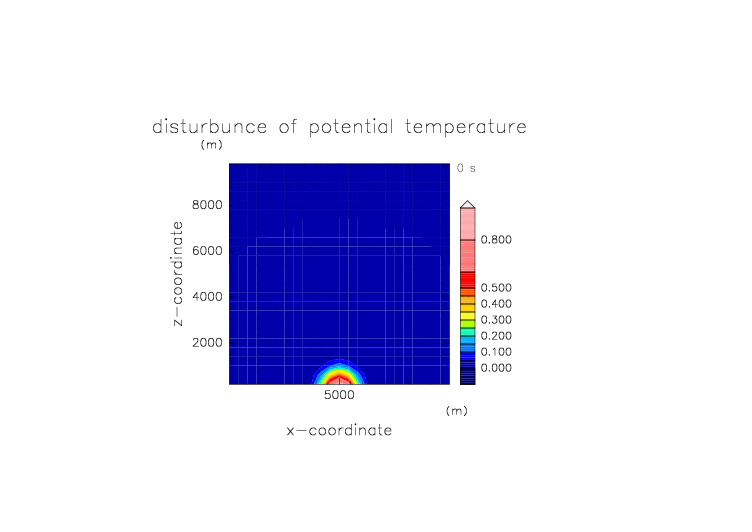

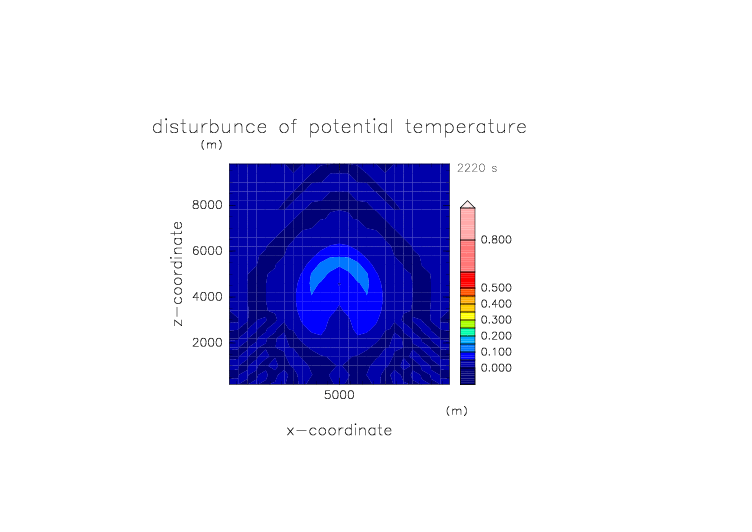

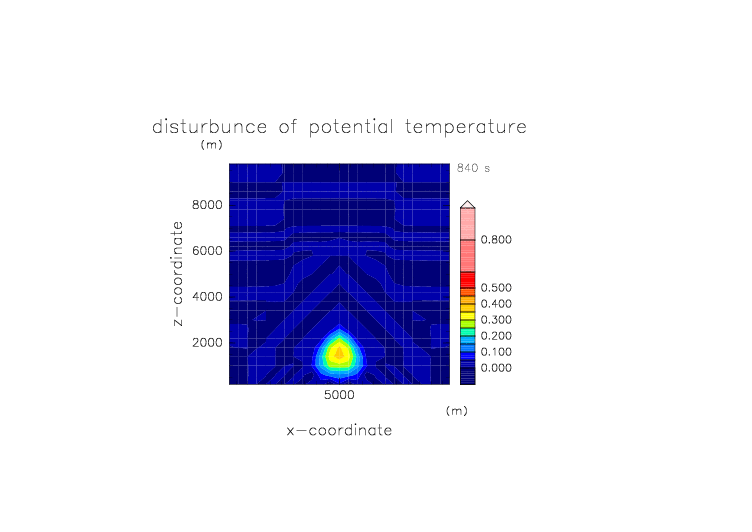

格子点25x25x25
