deepconv/arare4 : 主成分凝結を考慮した湿潤対流実験(中層一様冷却・下層一様加熱, 臨界飽和比 1.35 の場合) : 凝結時に雲密度の閾値を設定する実験(T1-4, Alpha5.0-4, center4 実験)

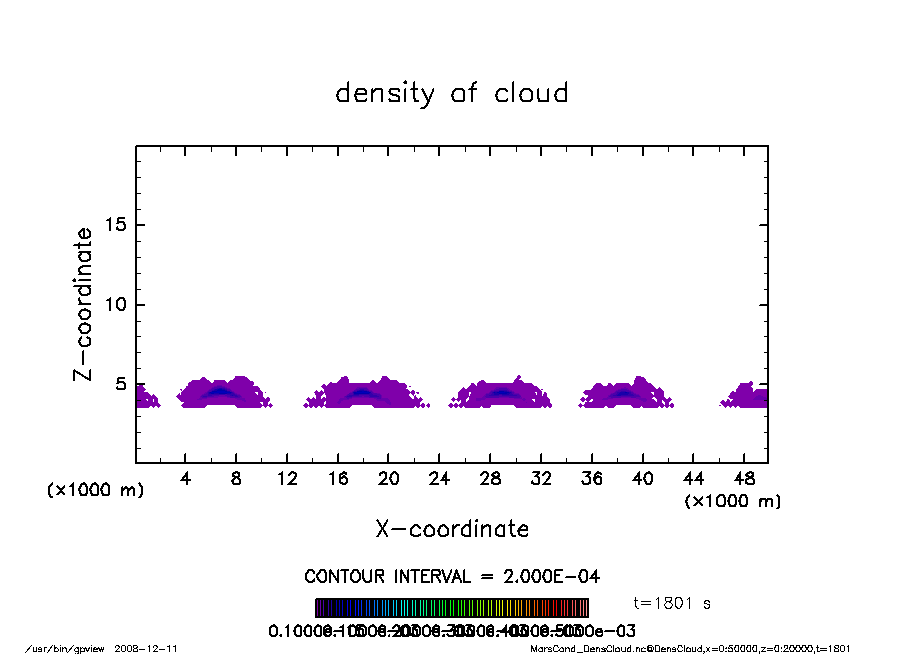

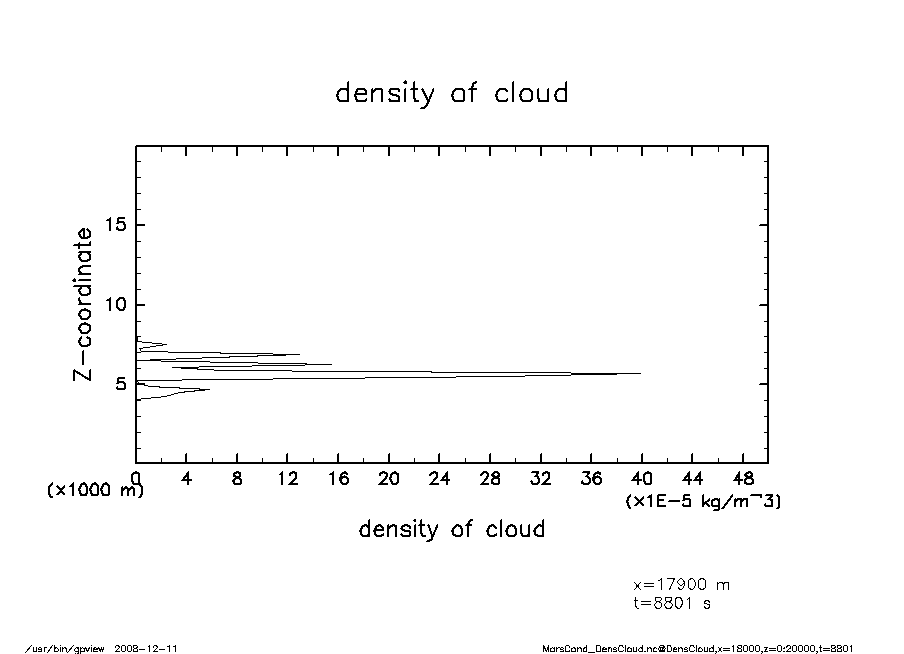

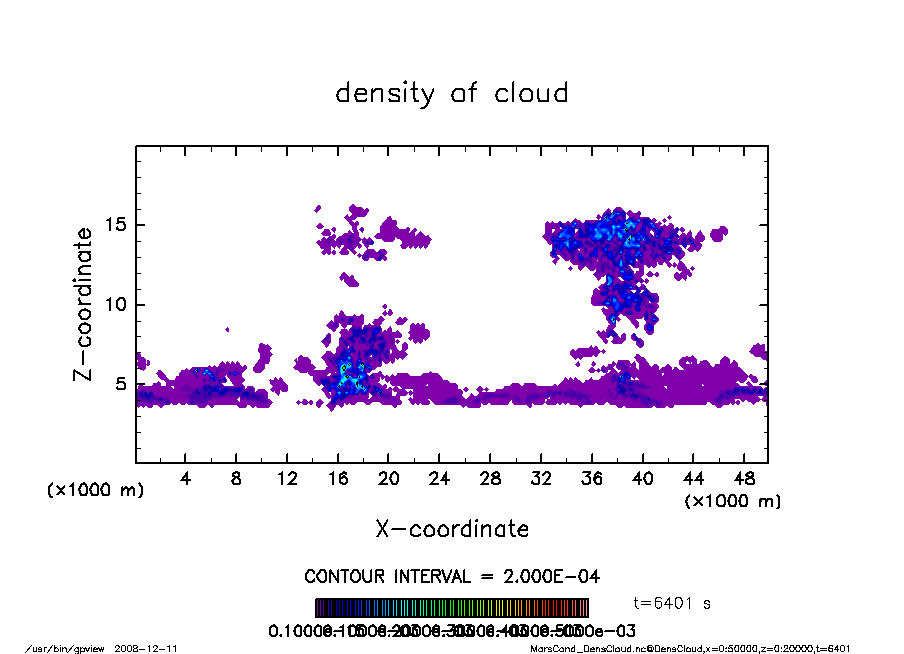

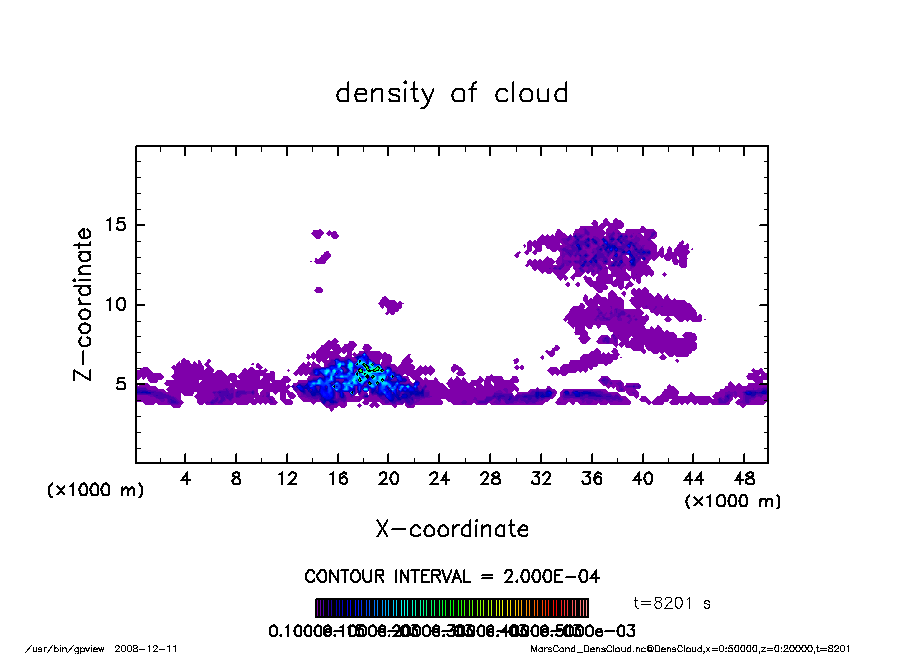

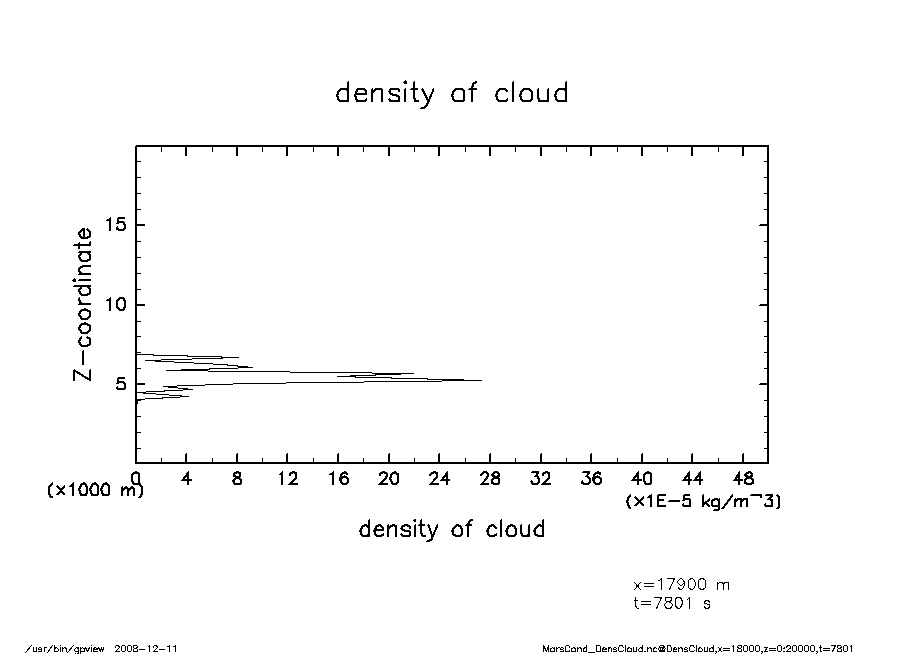

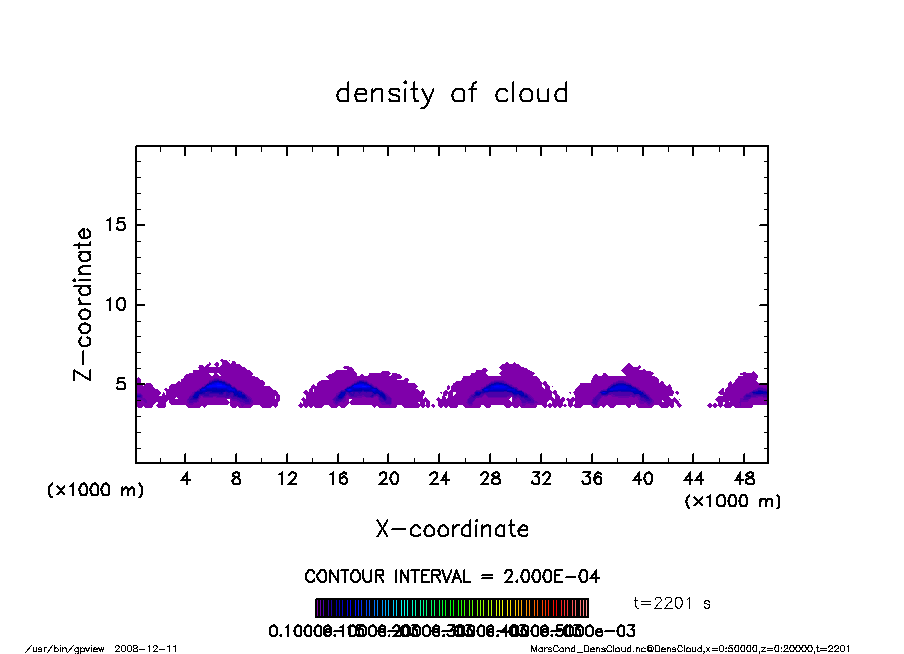

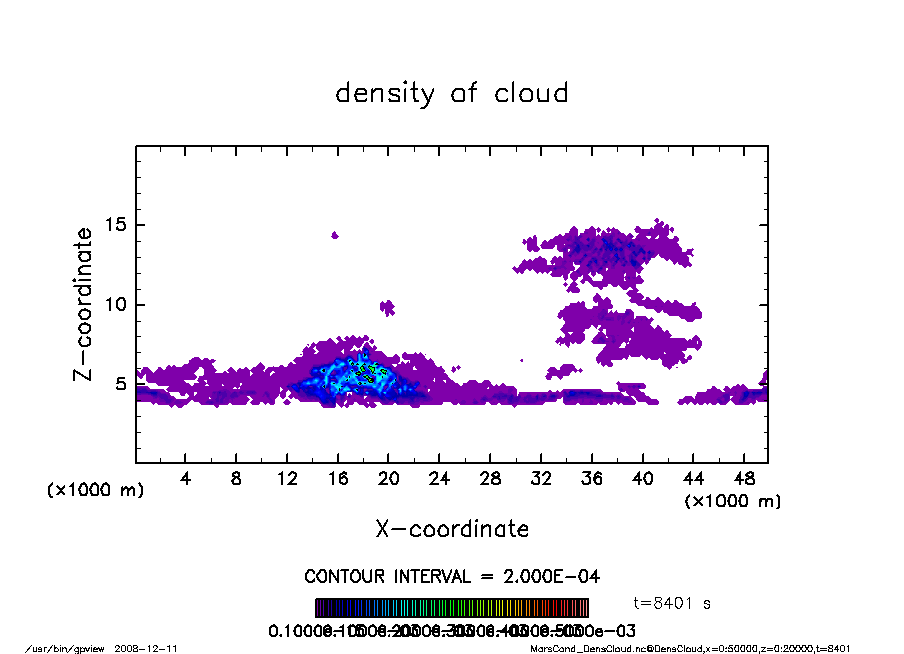

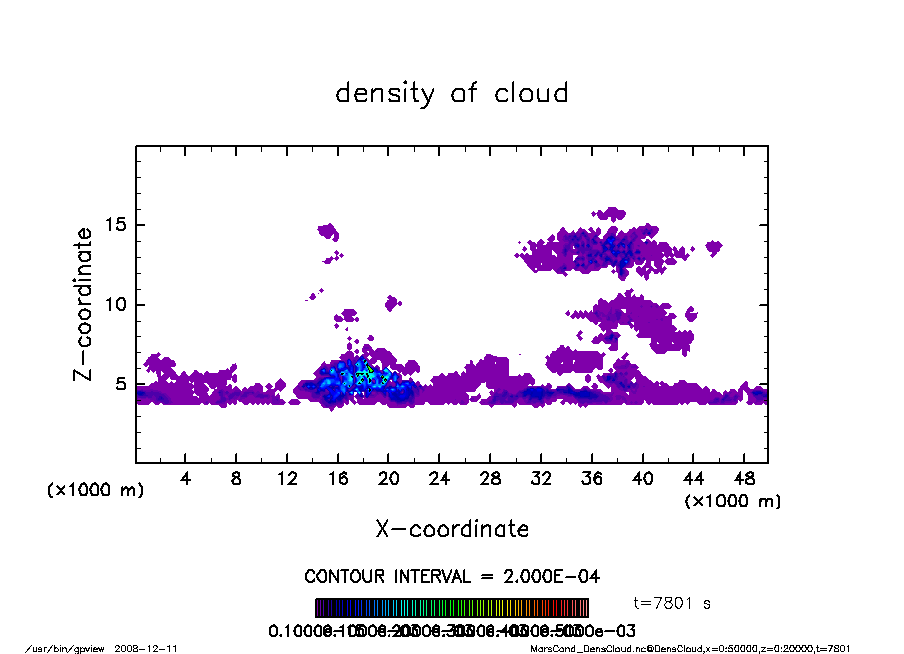

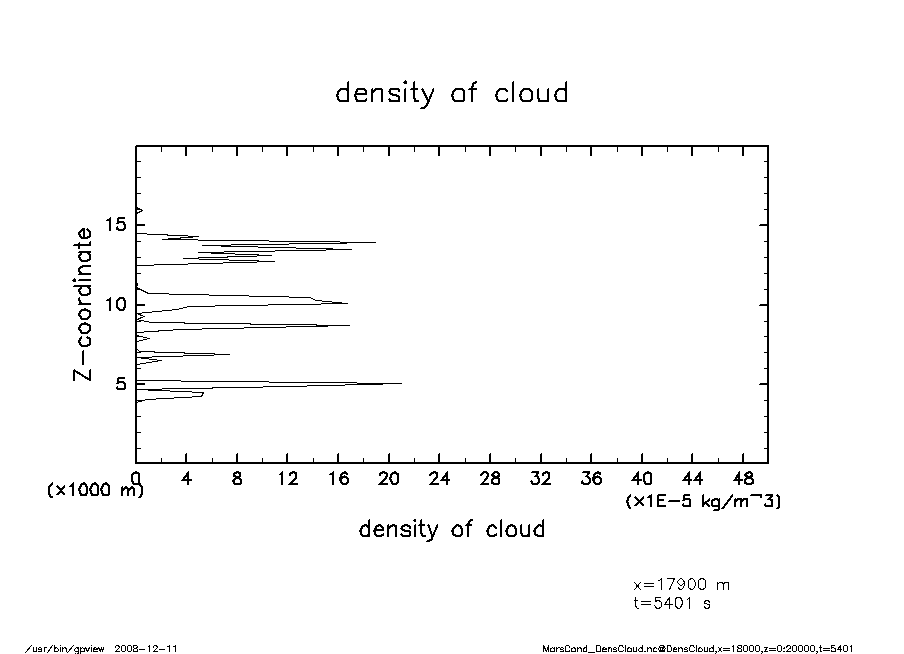

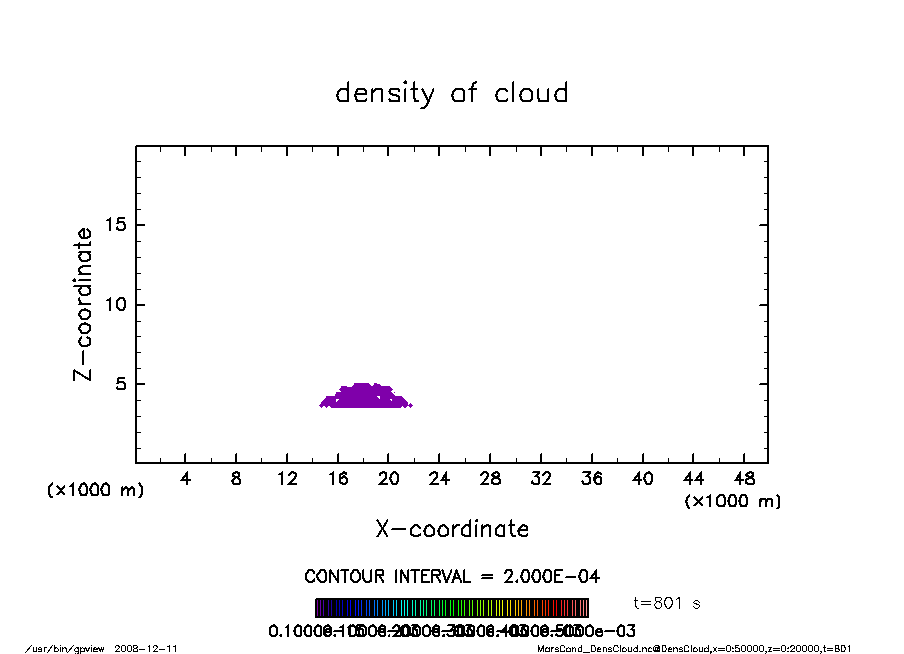

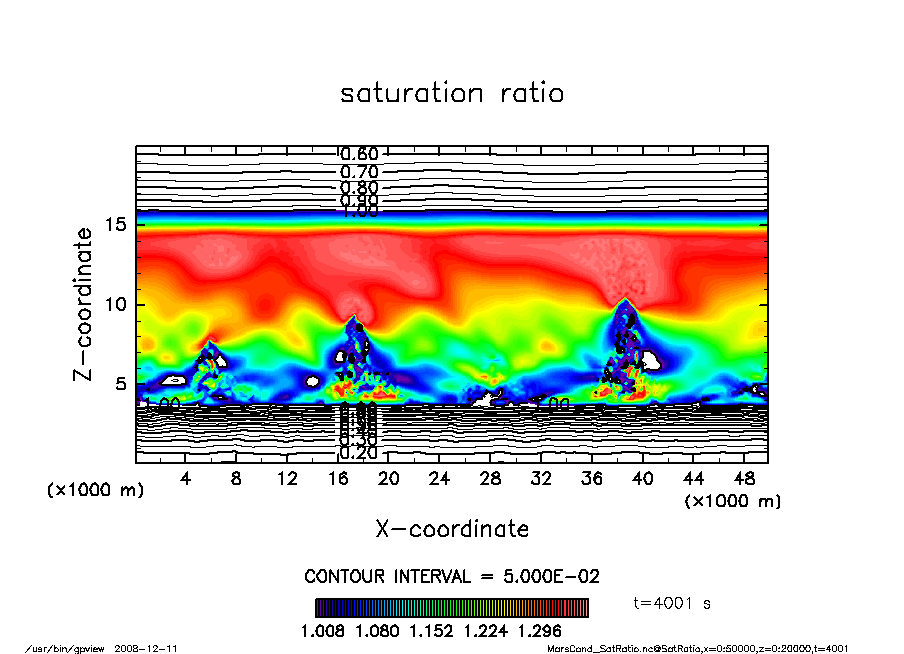

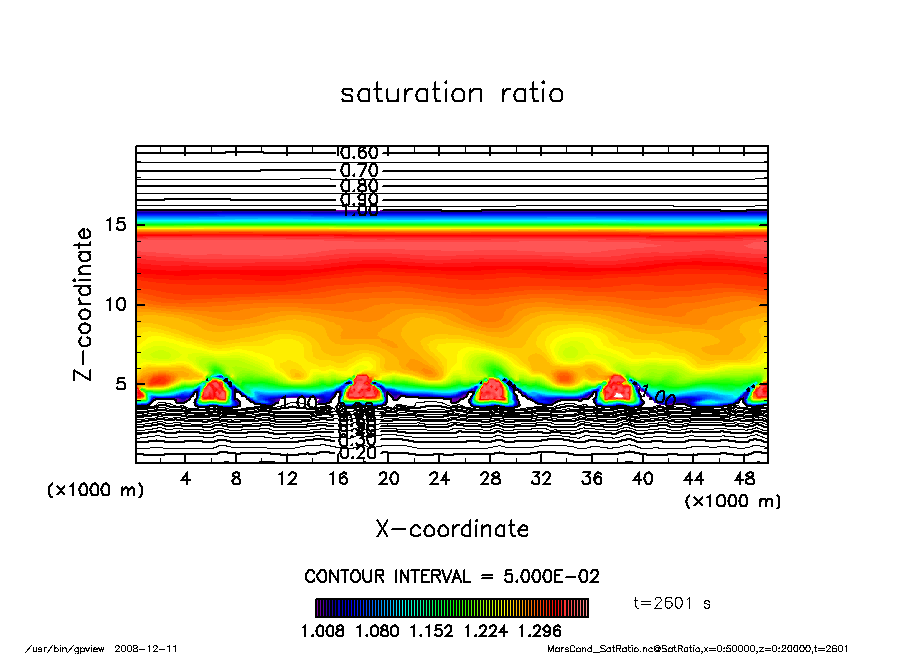

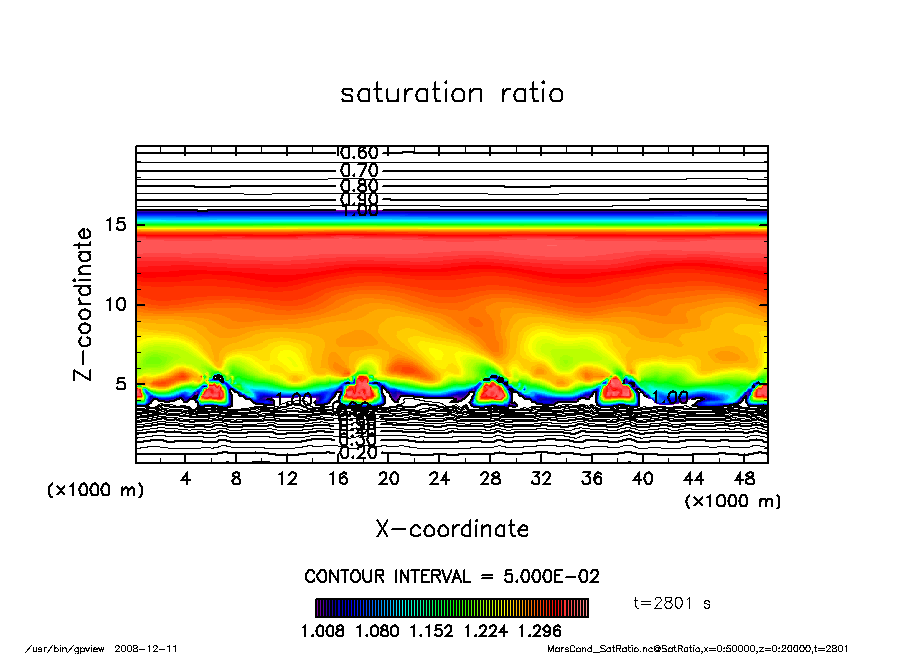

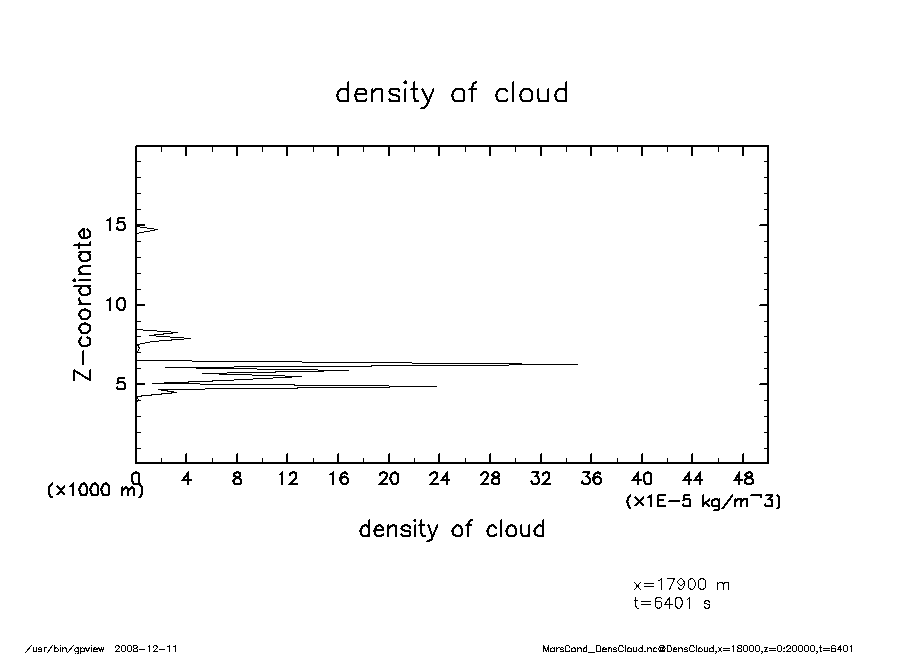

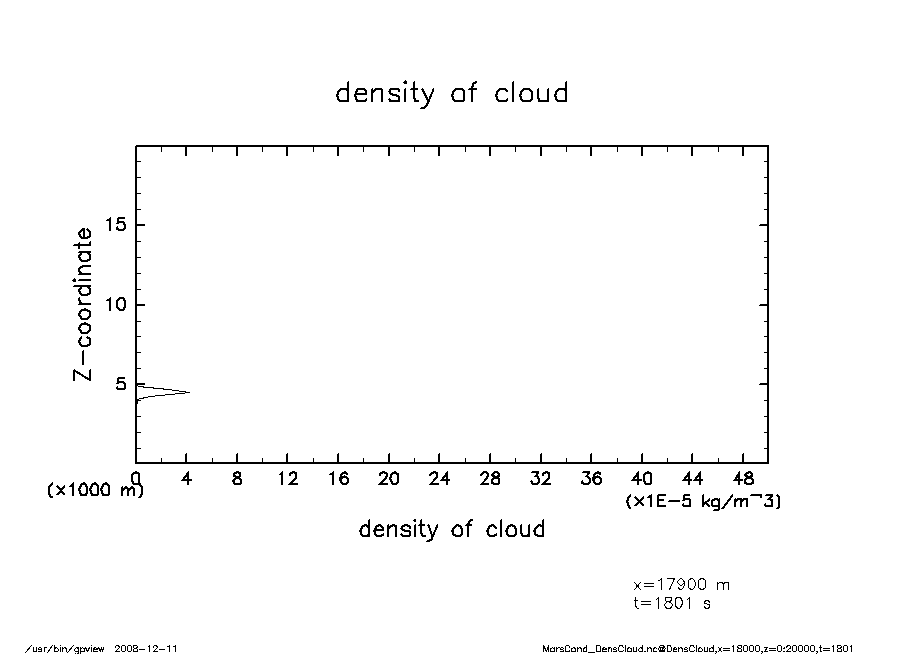

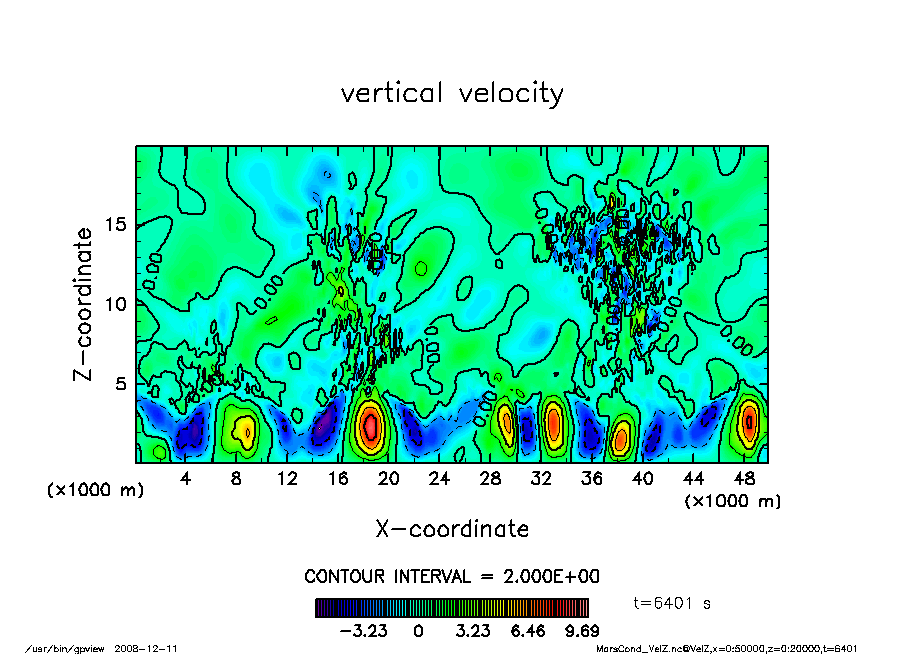

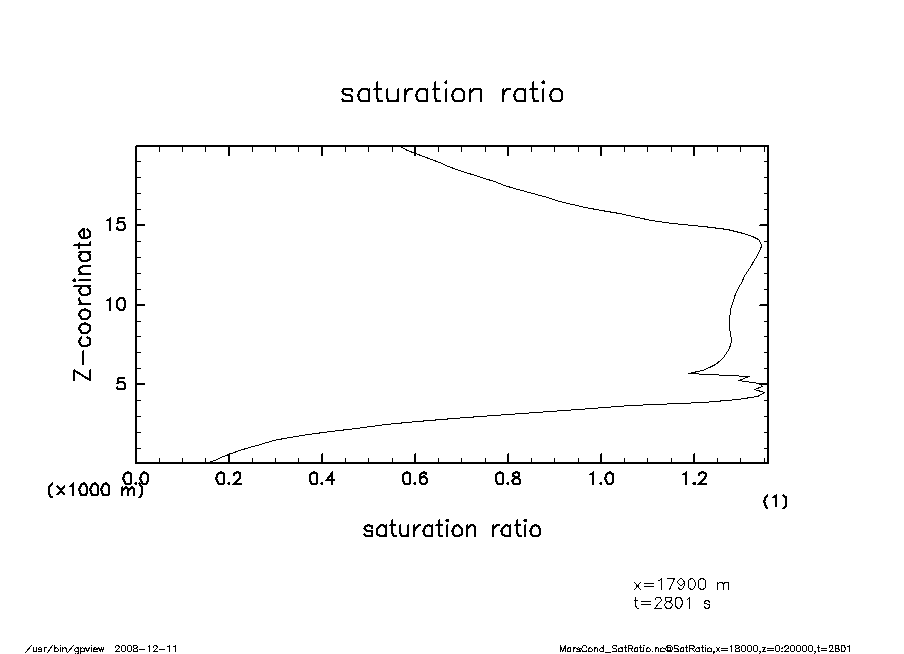

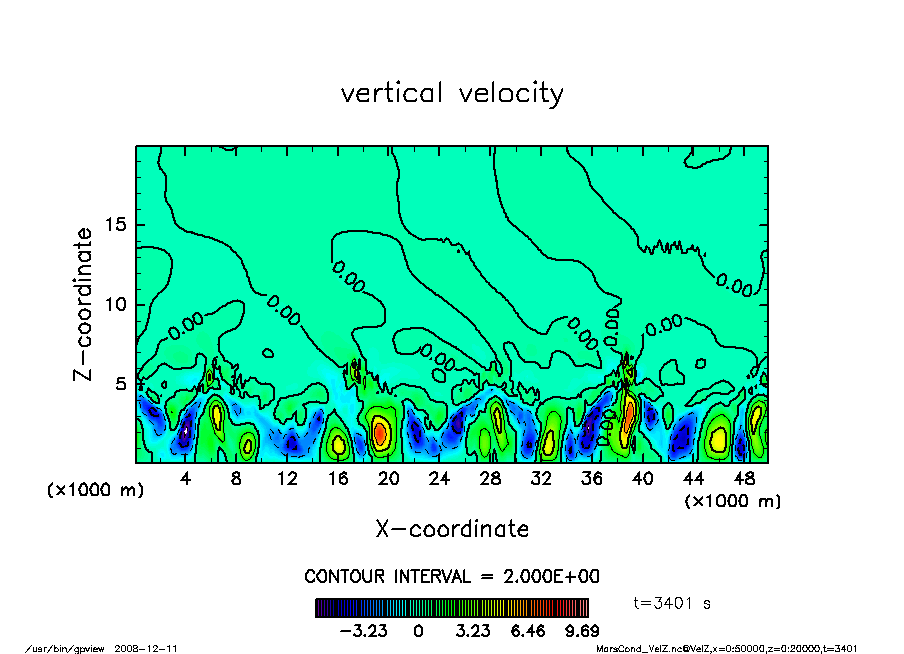

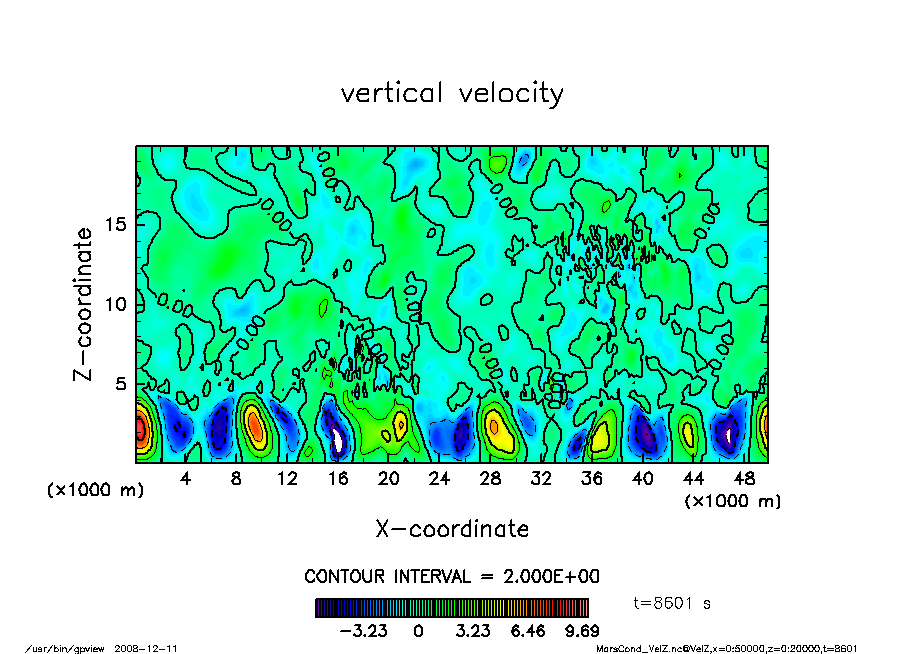

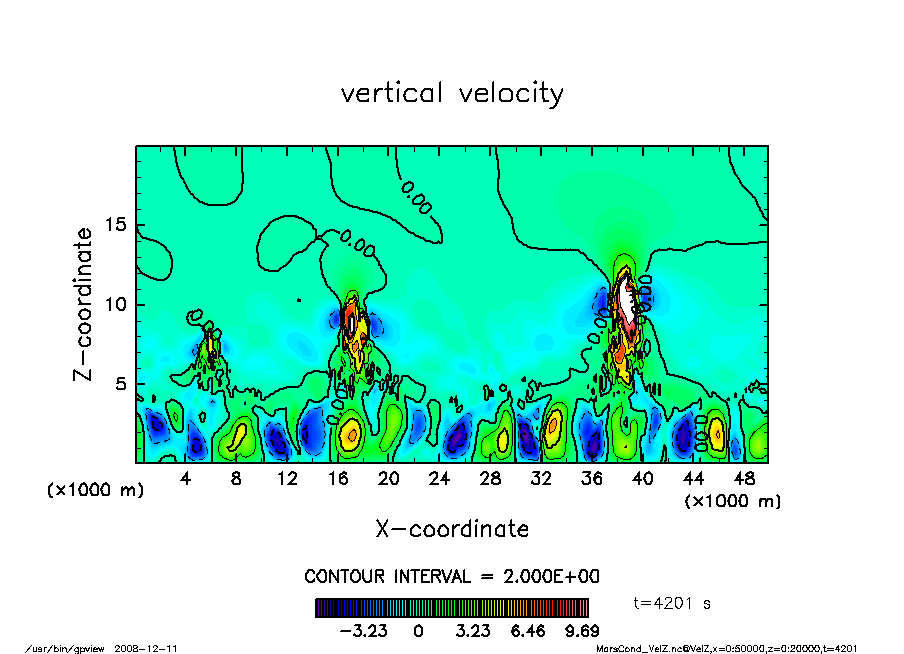

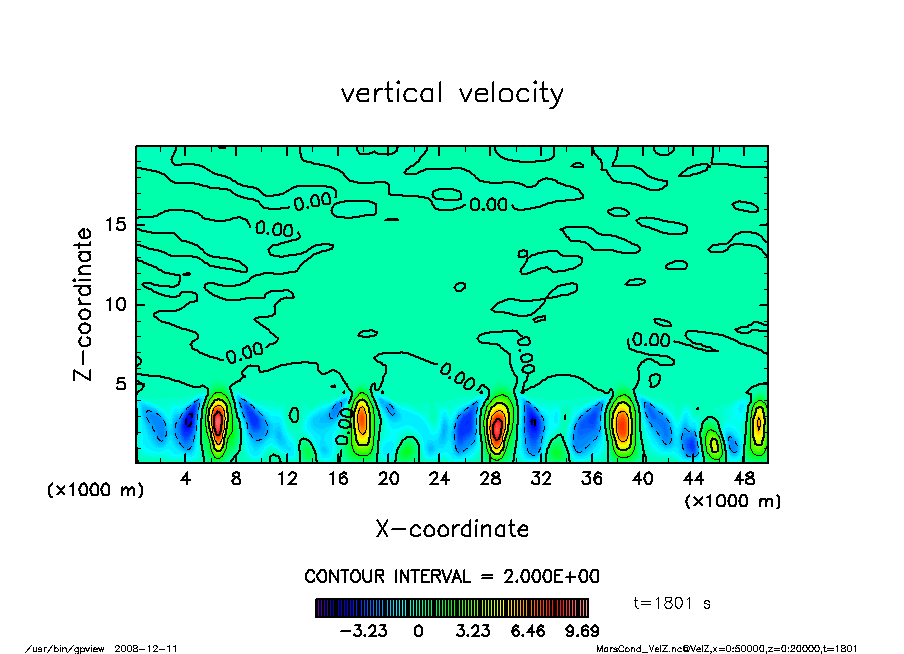

対流が次々と発生する際の雲の振る舞いを調べる為に, 初期条件としてランダムな温位擾乱を与えて計算を行なった. 臨界飽和比が大きい場合に差分誤差によって三角形の人工的な凝結領域が拡大してしまうことが発覚した. これを防ぐために, 一定以上の雲密度でない場合に飽和比が 1 以上でも凝結しないように閾値を設けて計算を行ってみた. この計算では雲密度の閾値を 0.0001 とした.

計算設定

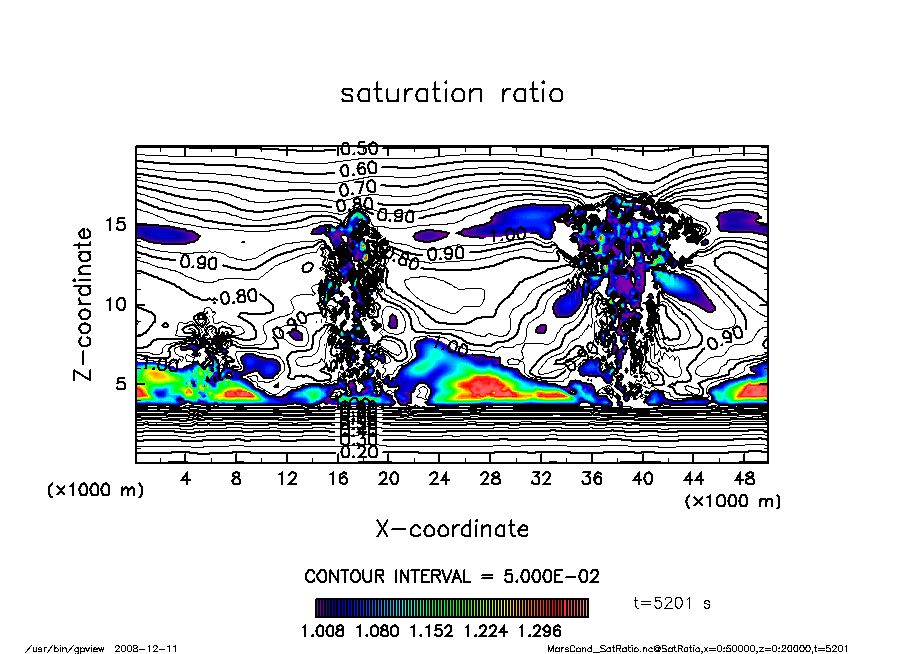

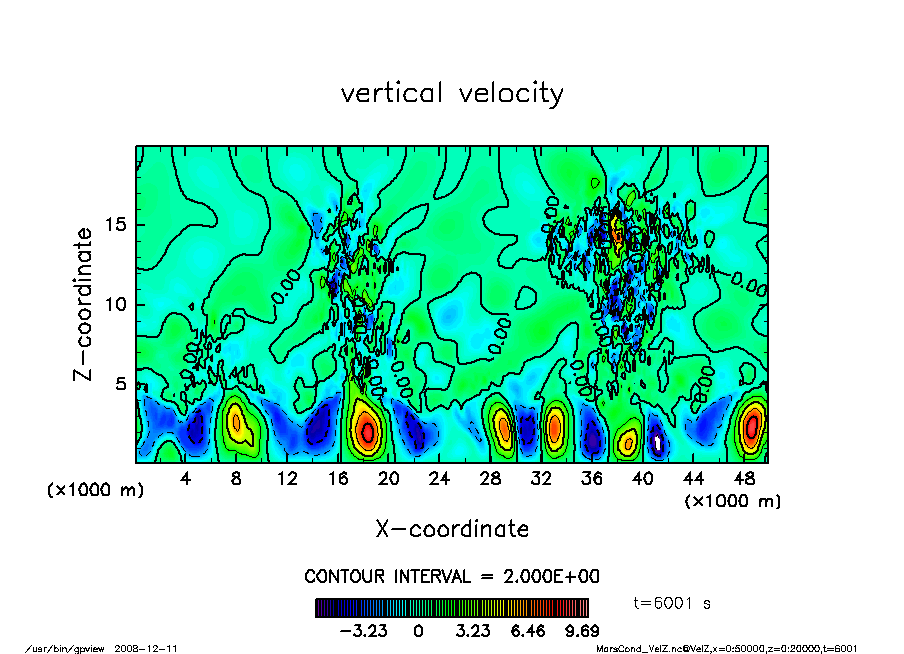

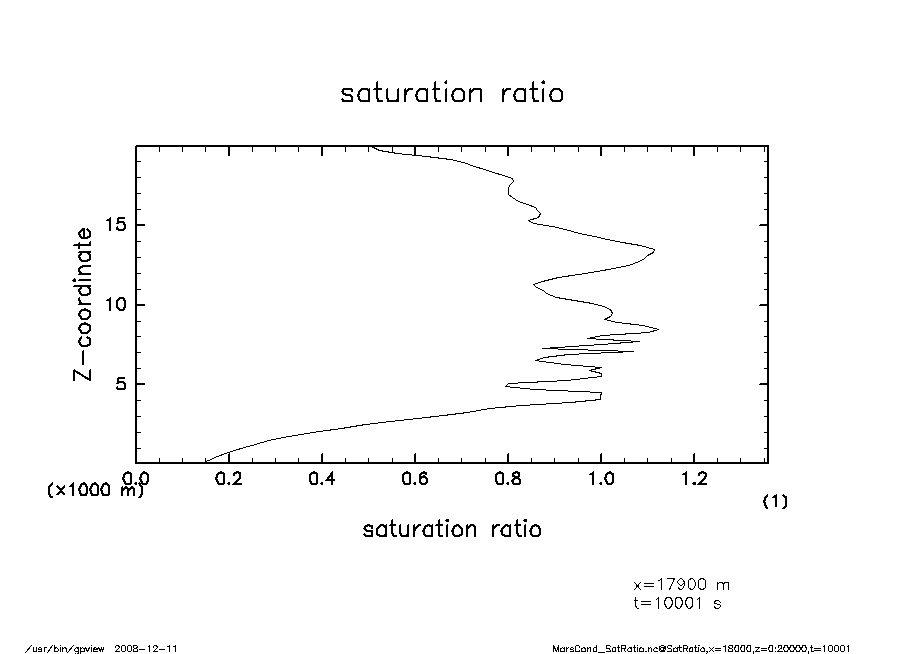

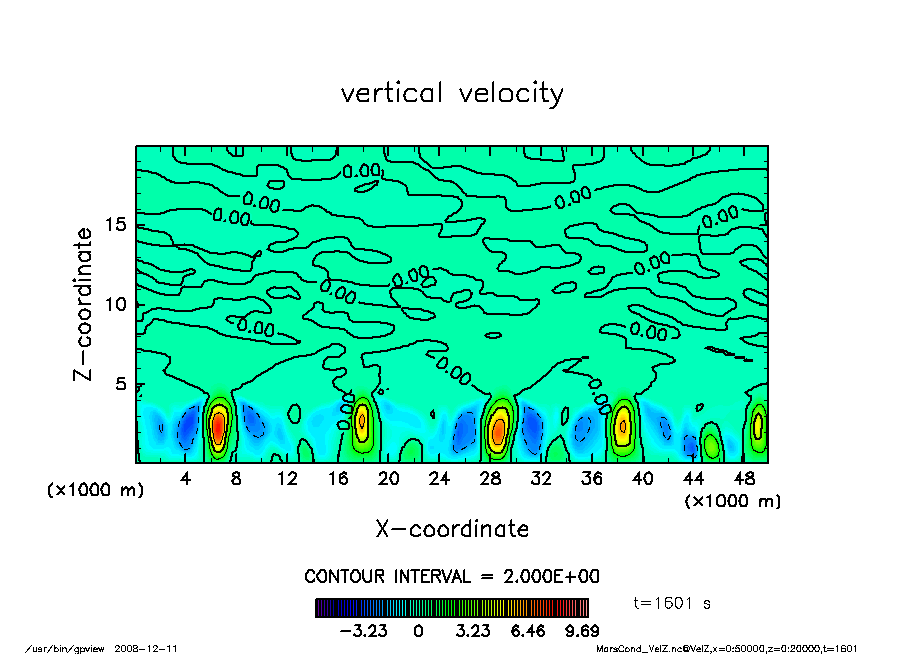

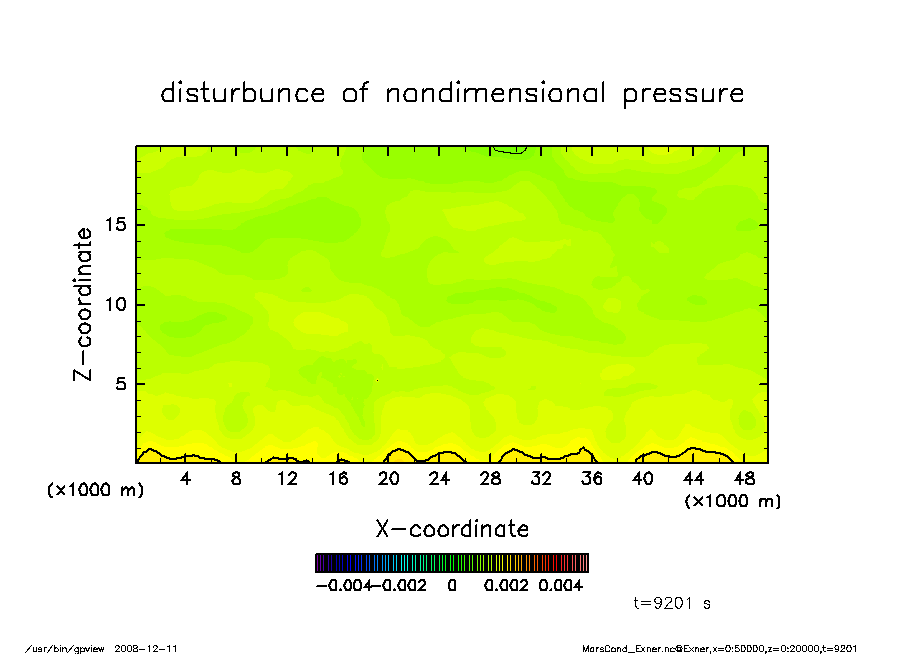

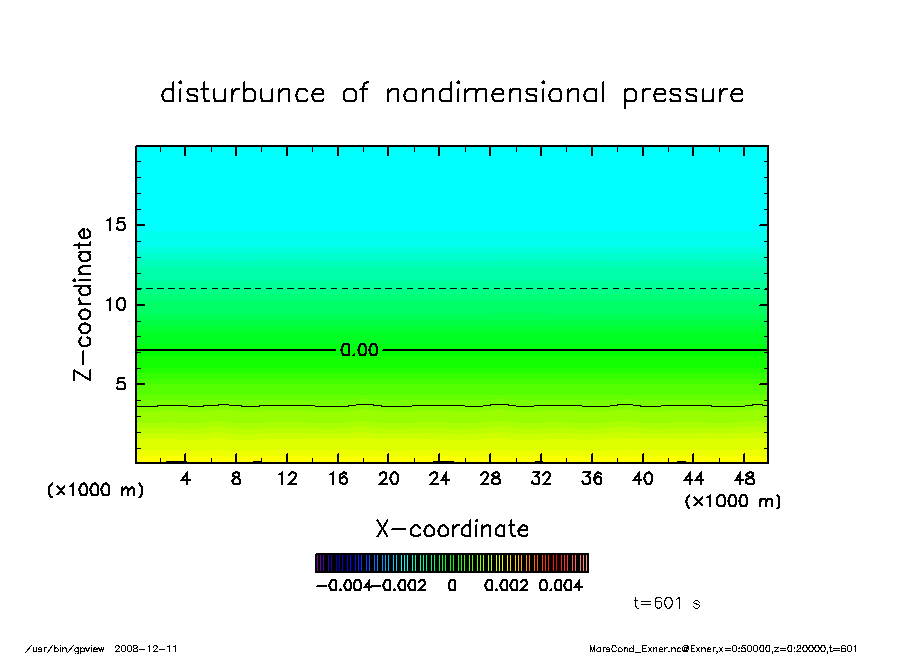

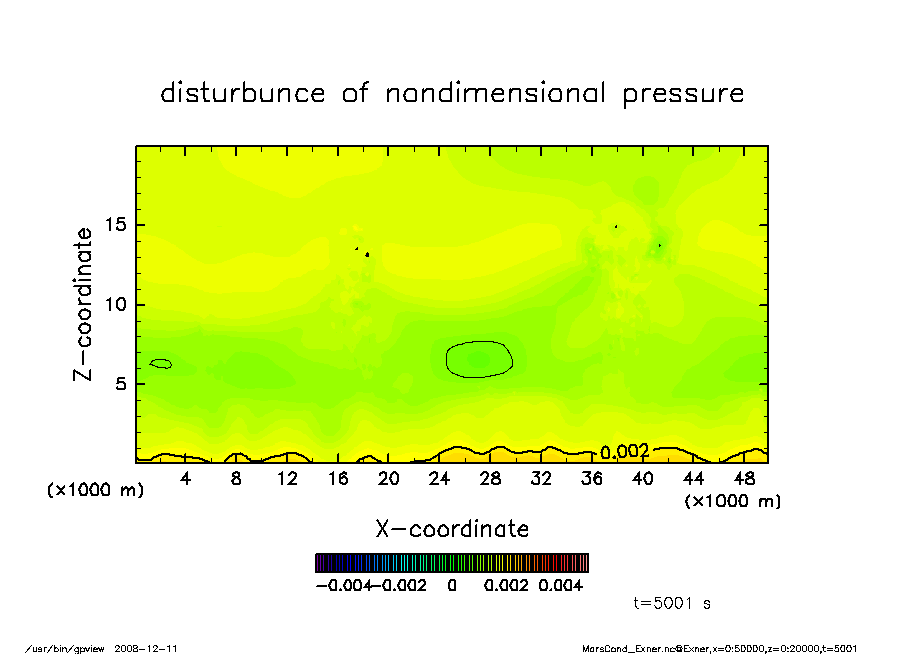

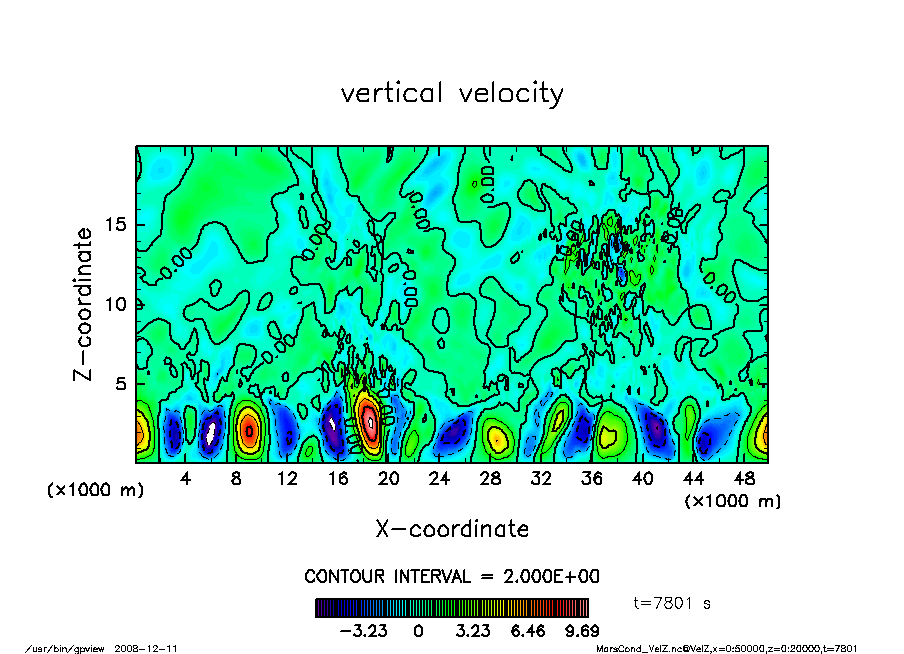

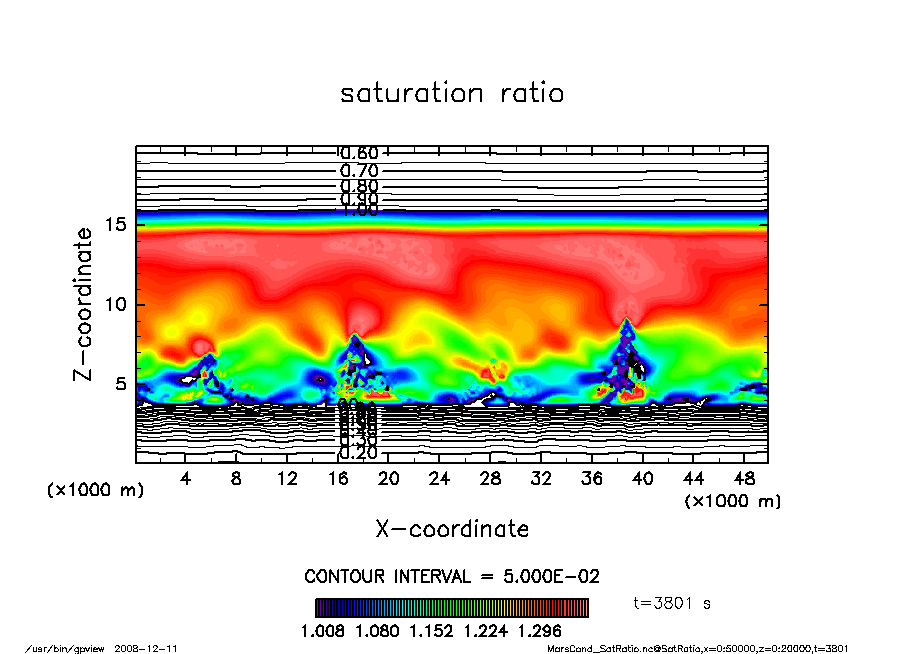

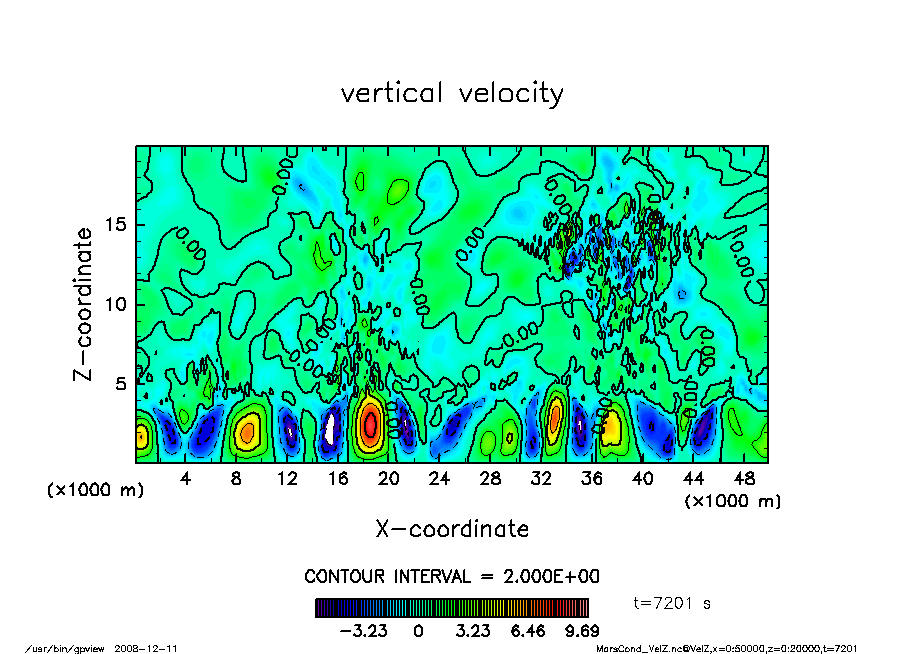

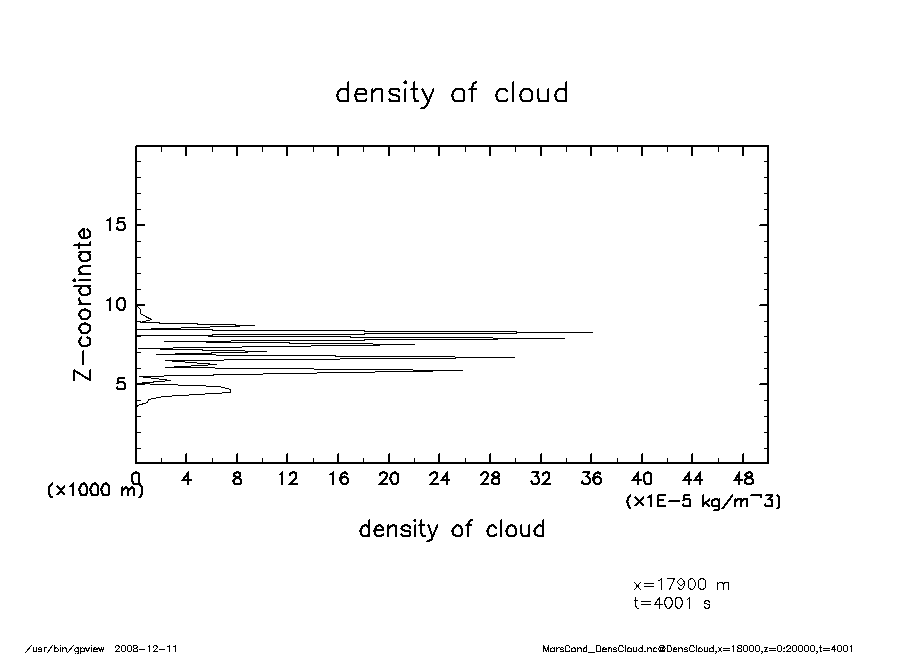

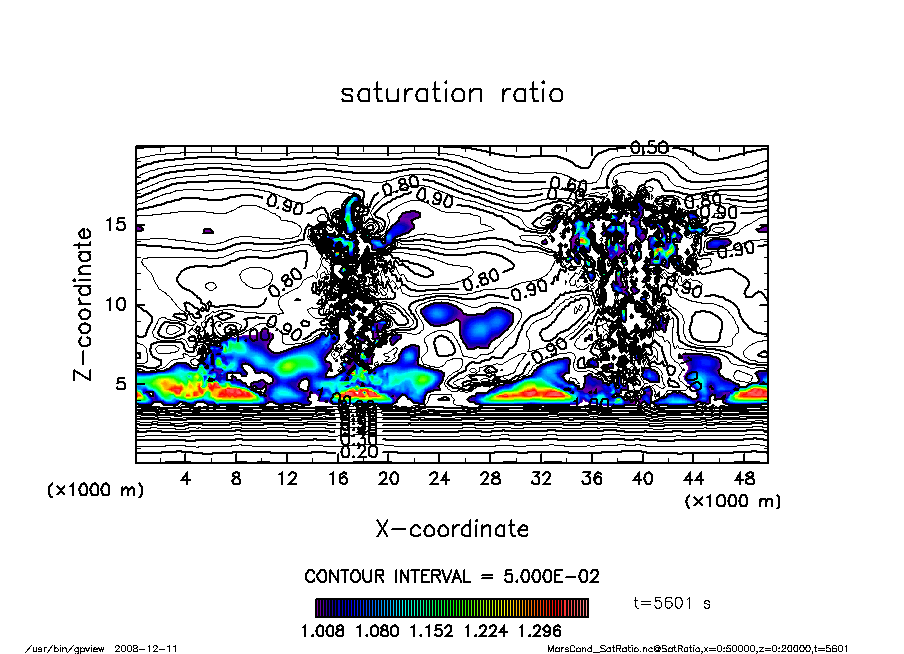

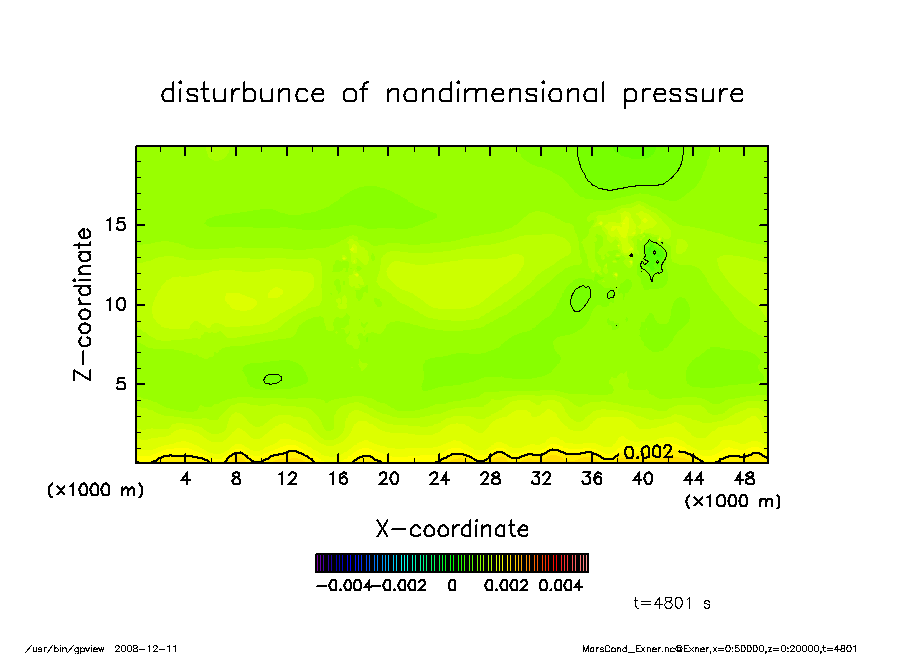

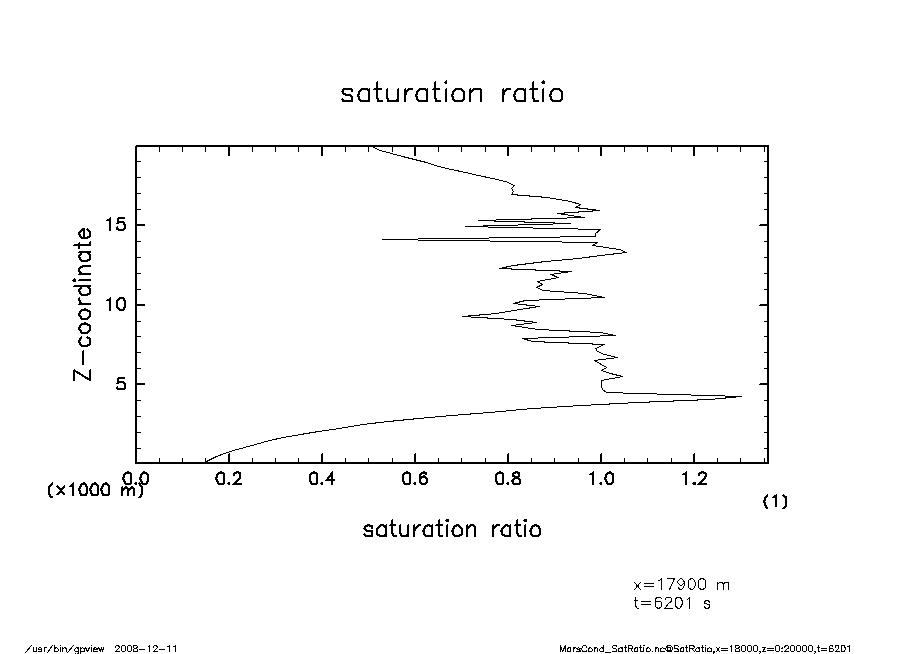

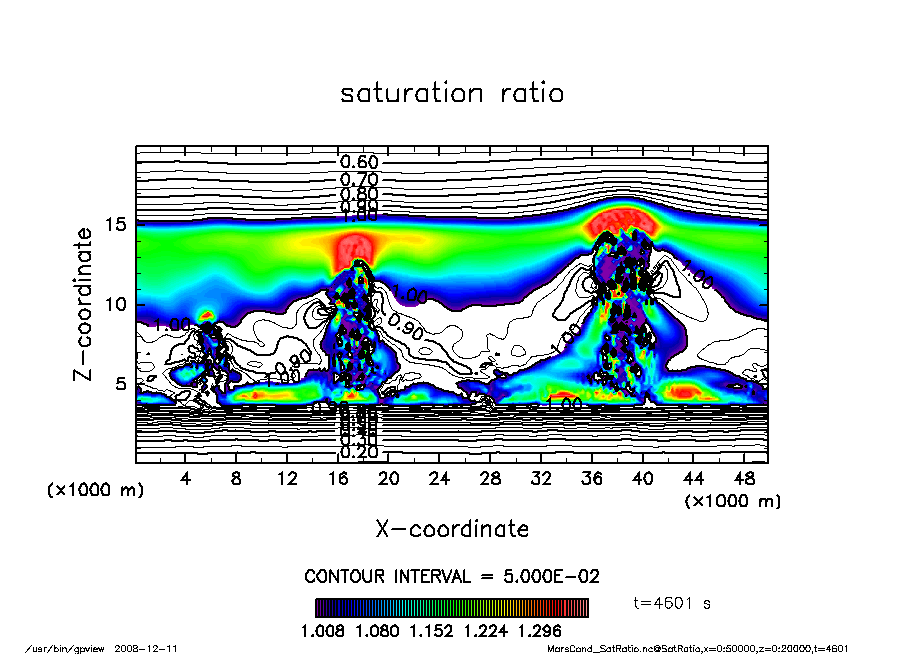

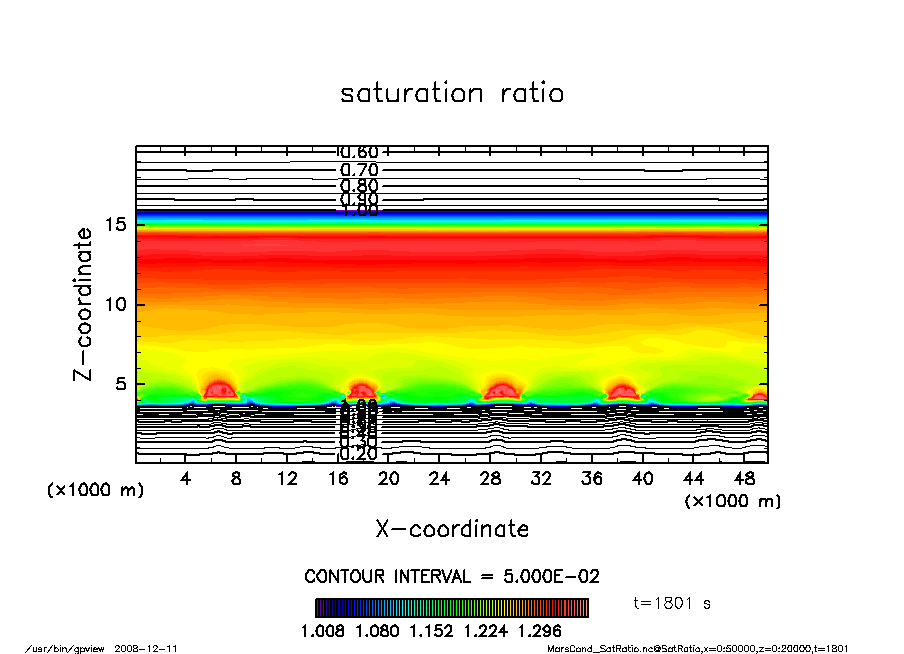

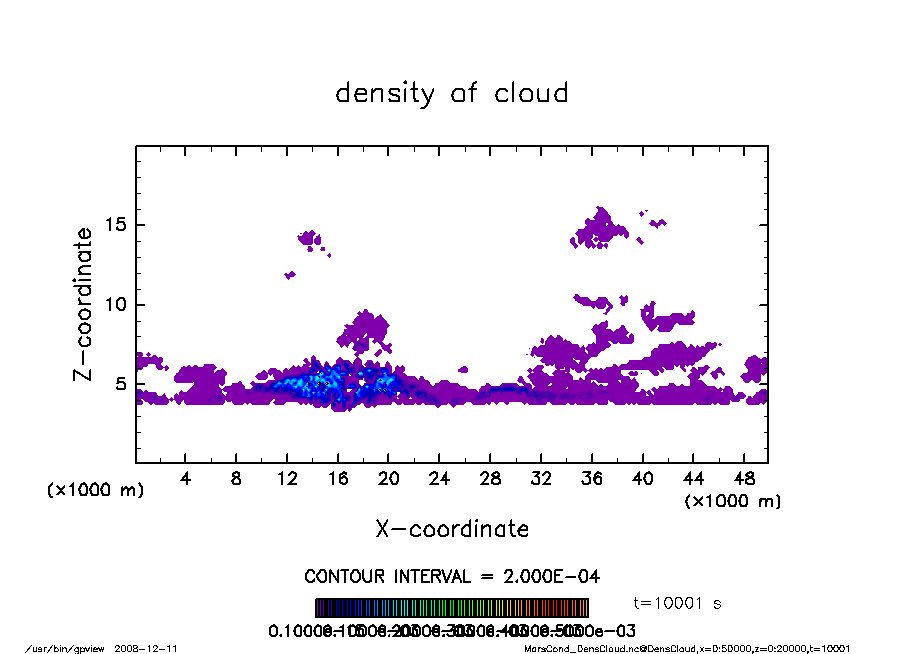

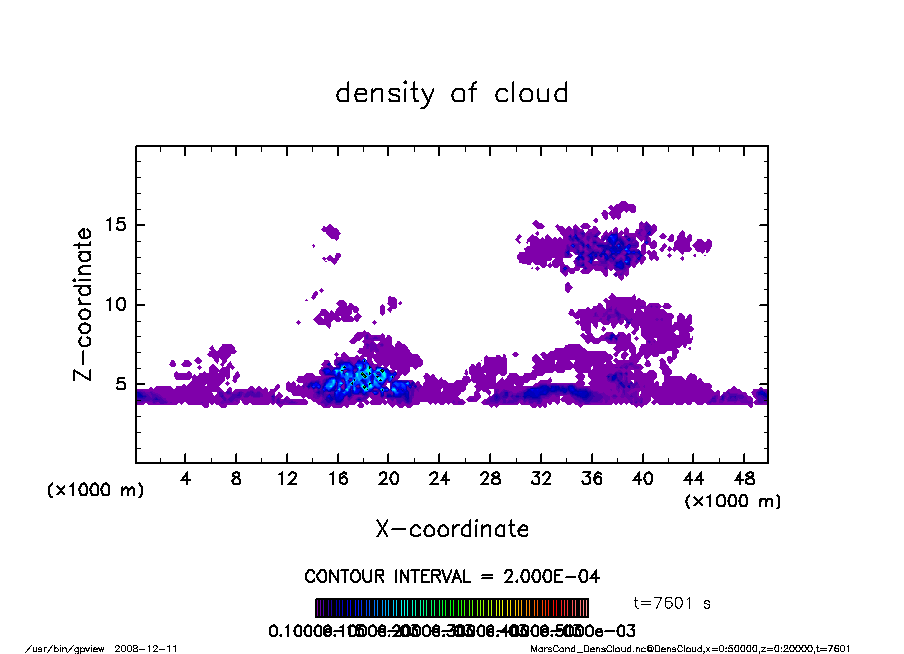

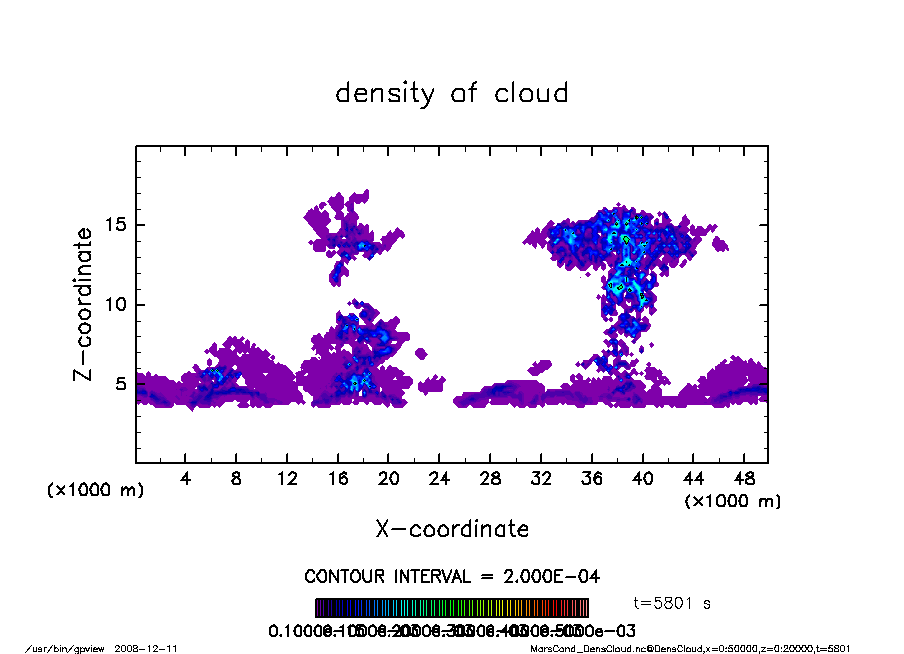

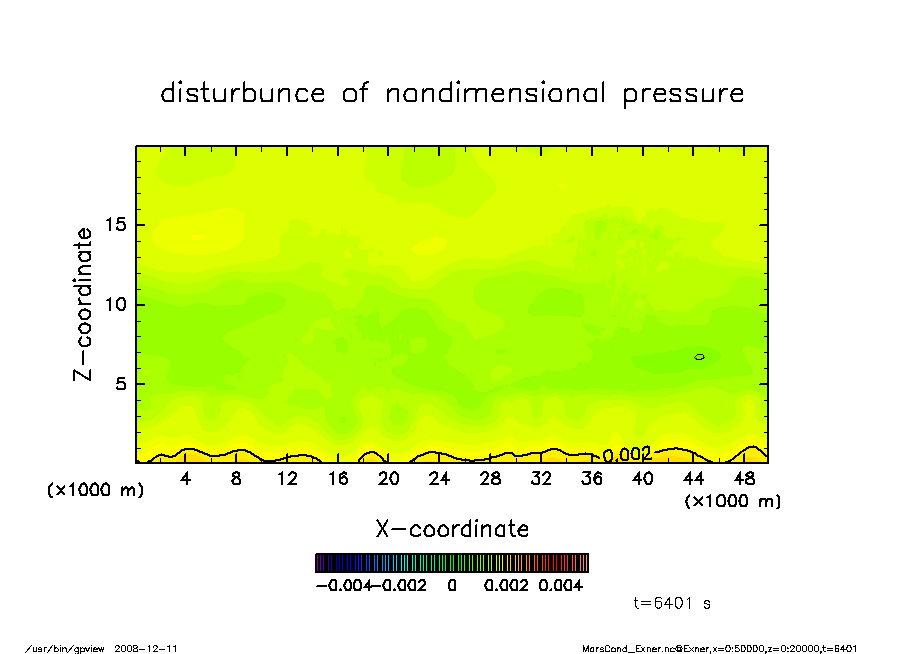

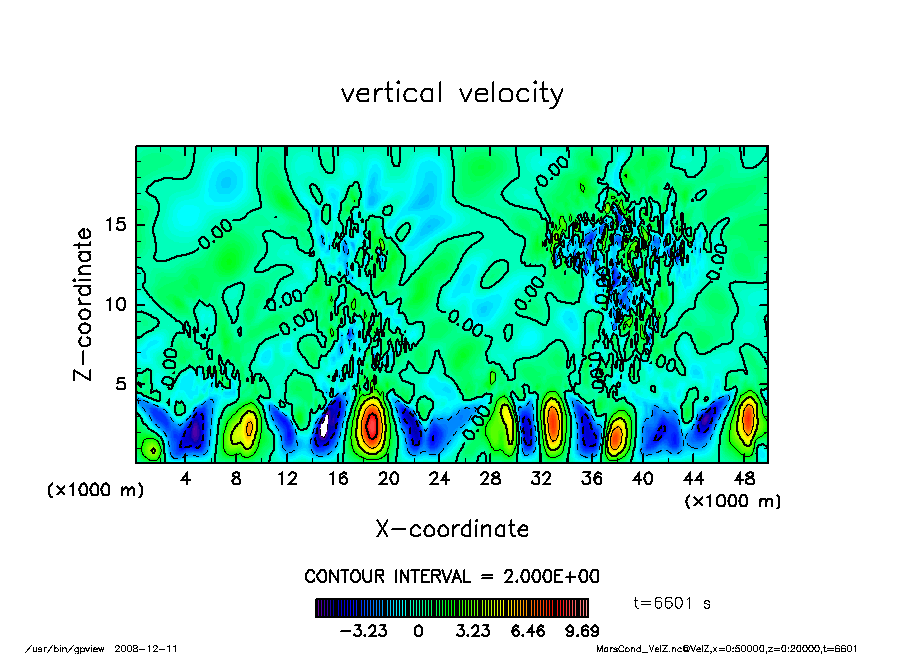

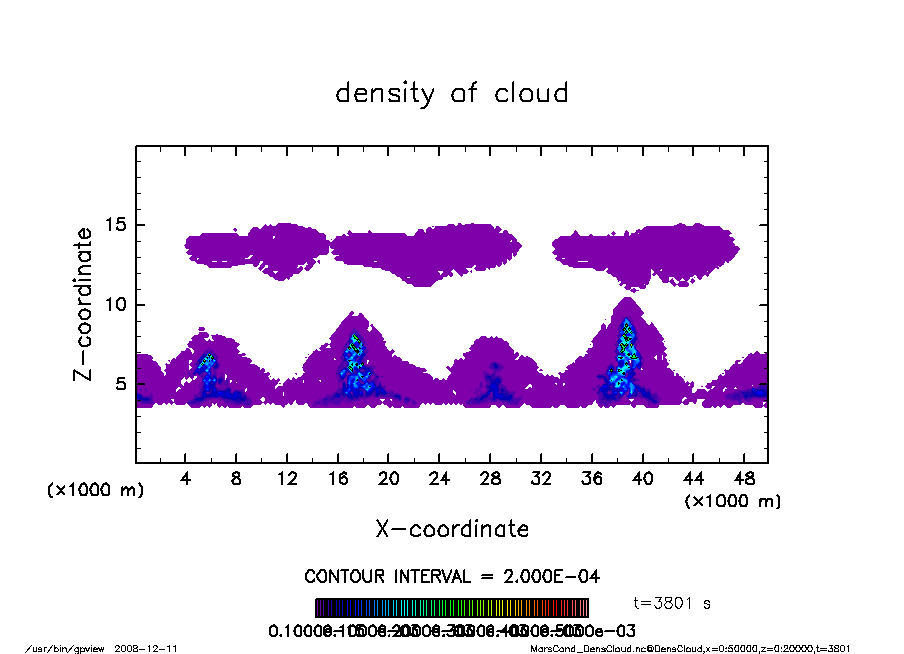

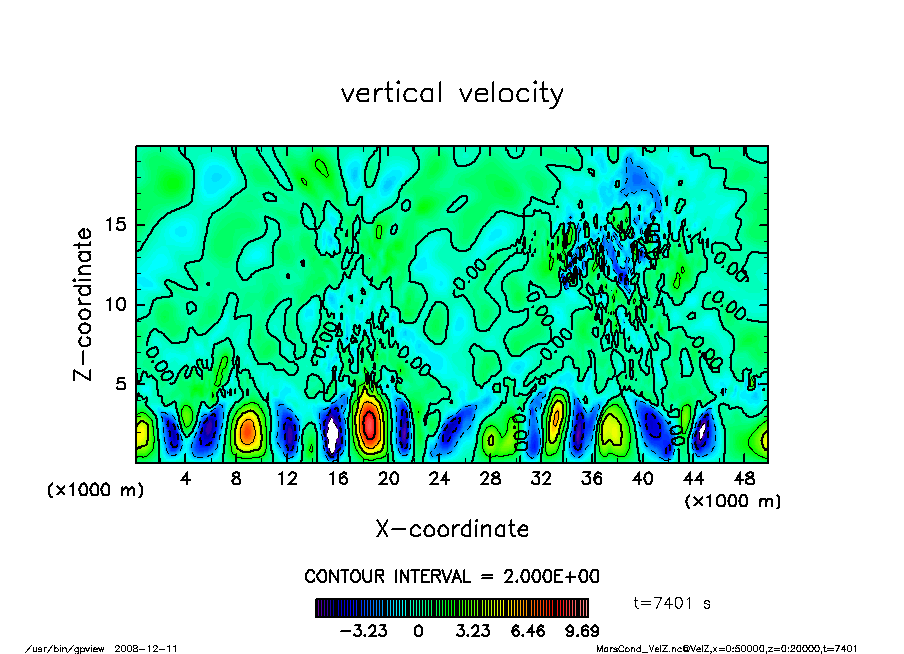

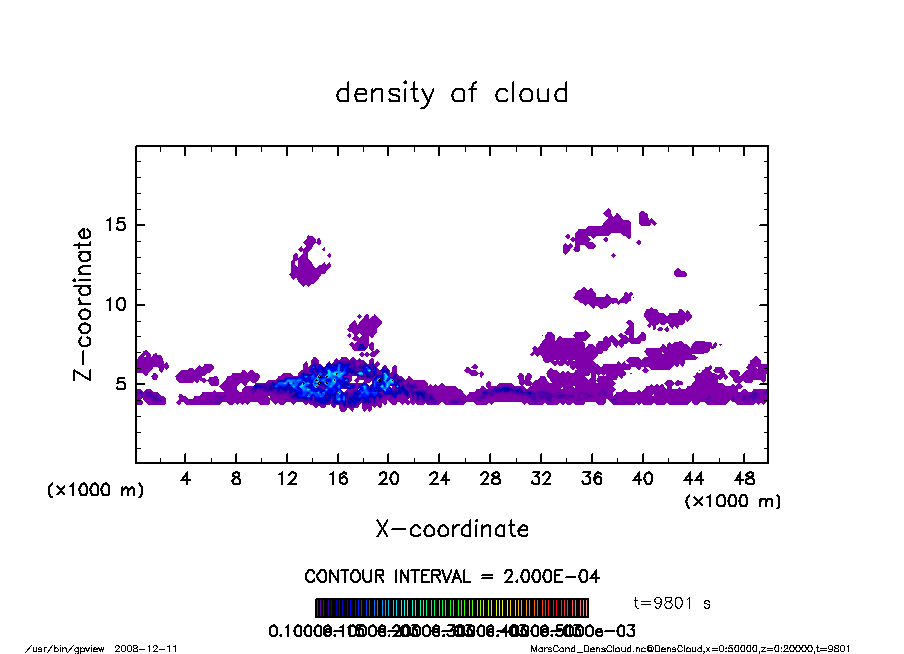

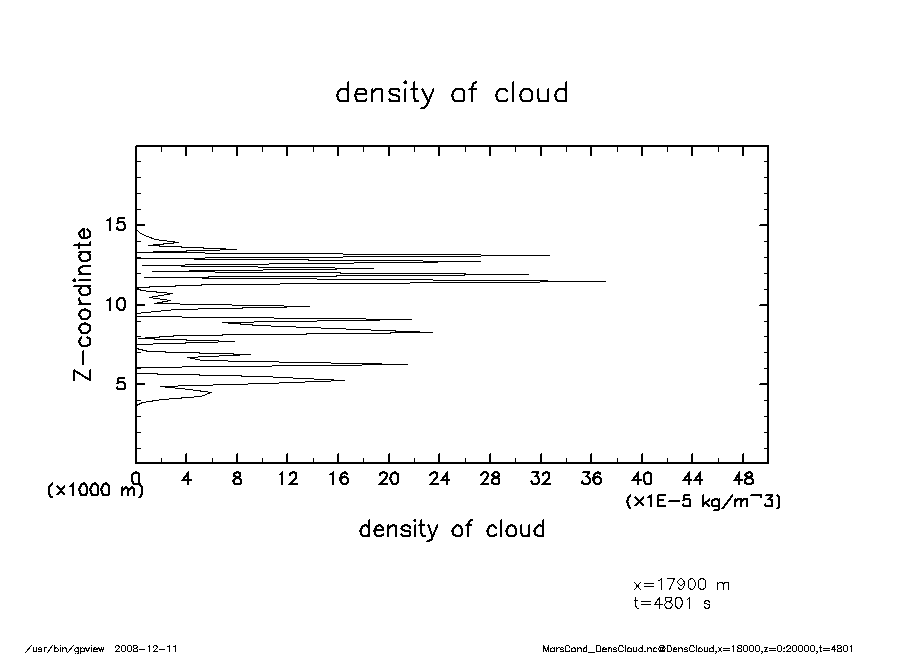

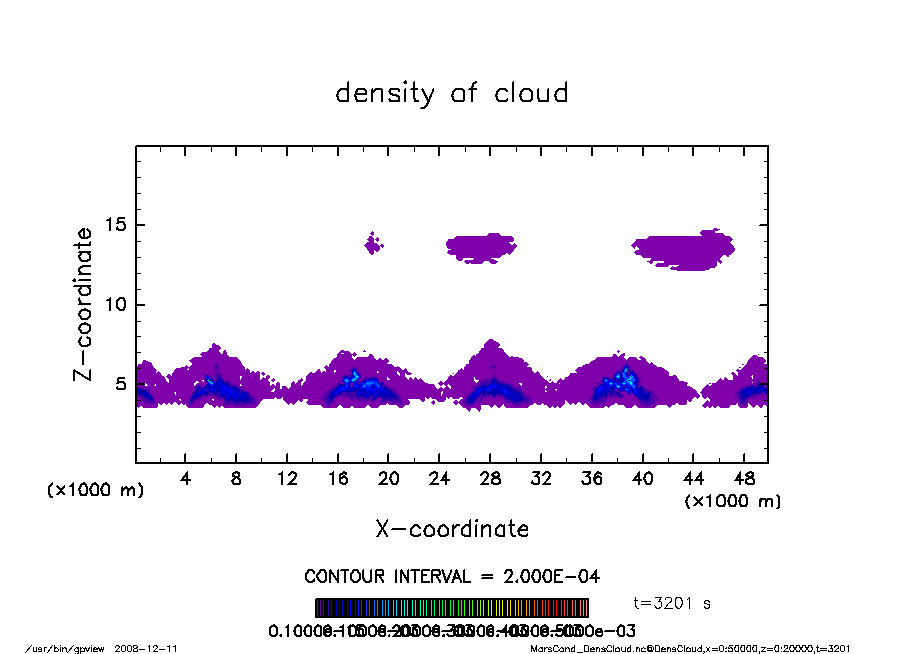

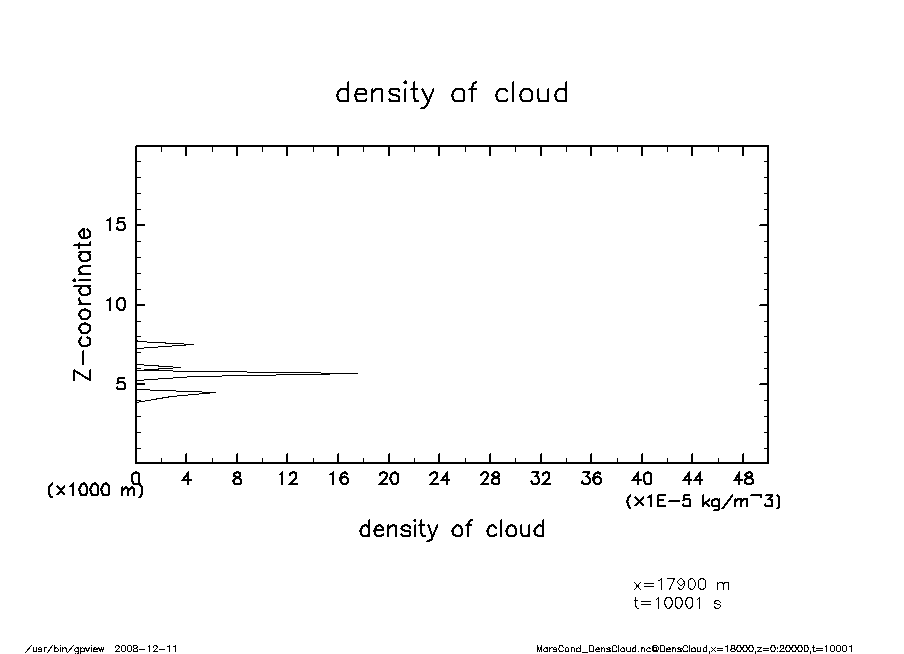

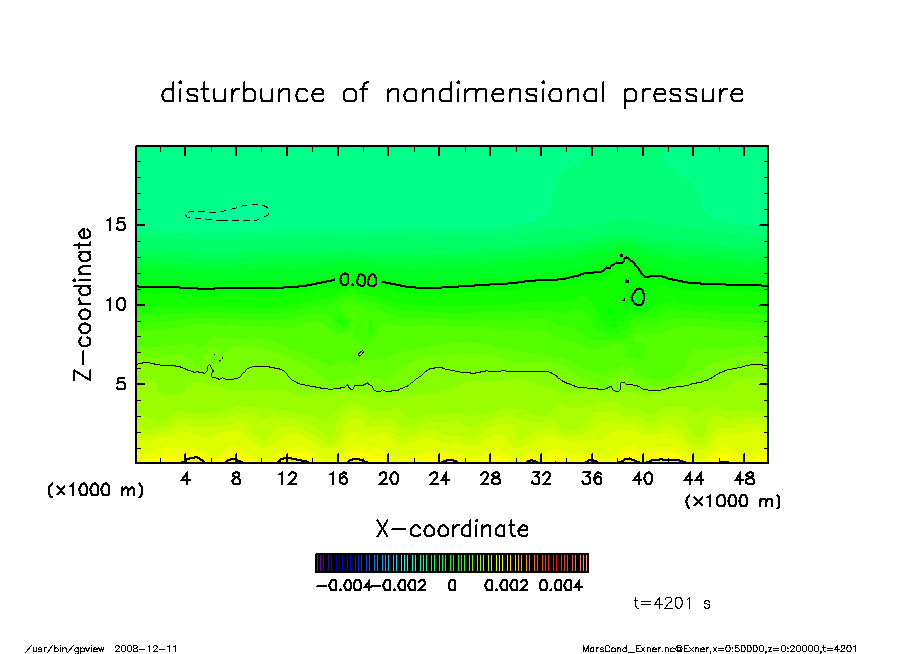

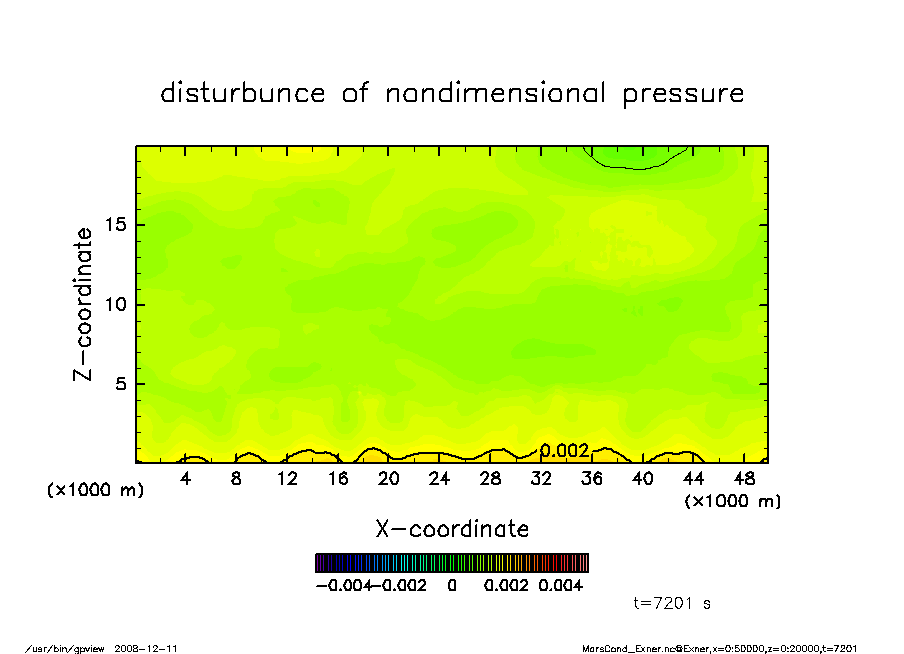

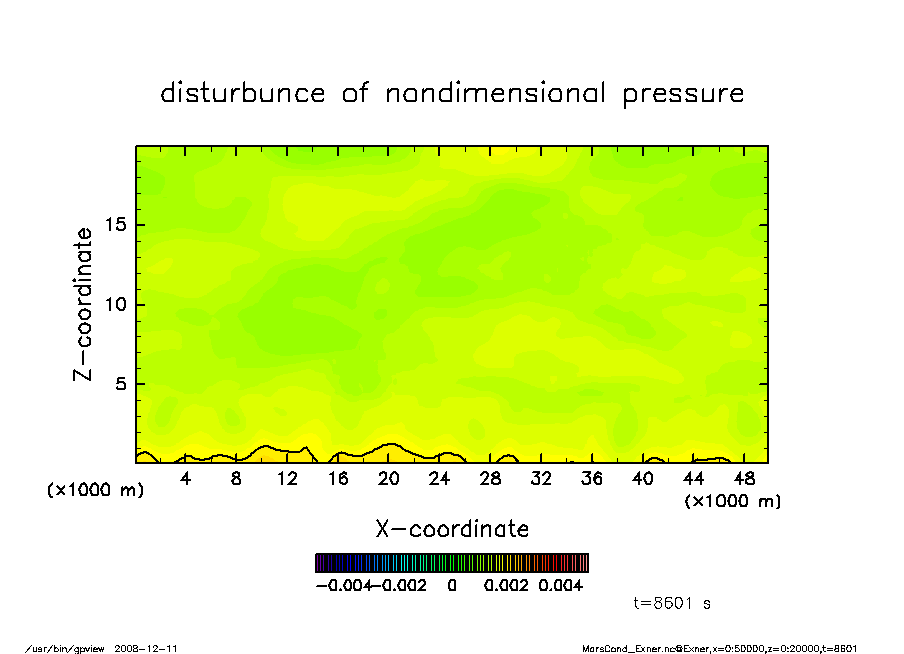

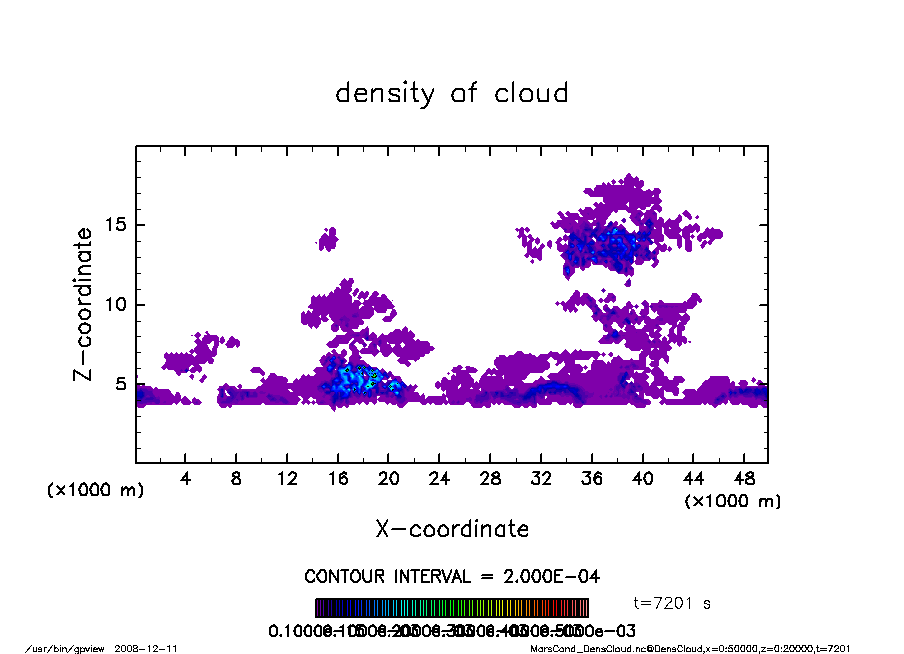

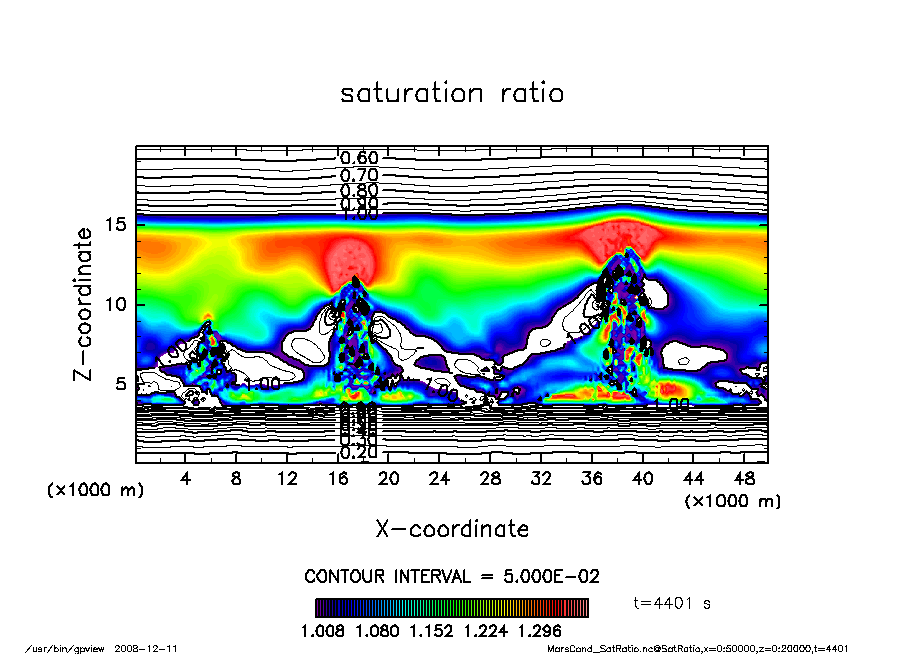

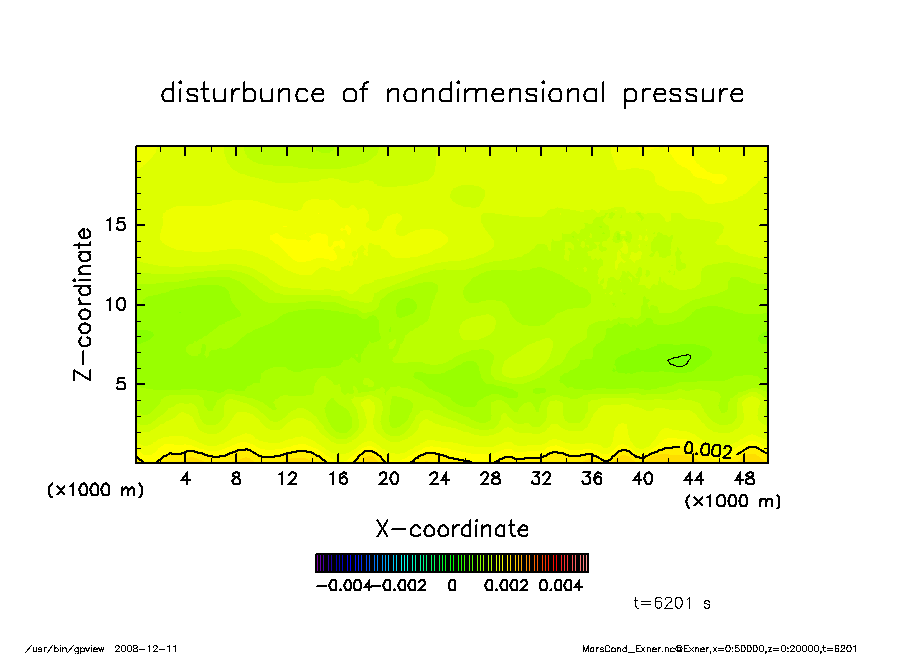

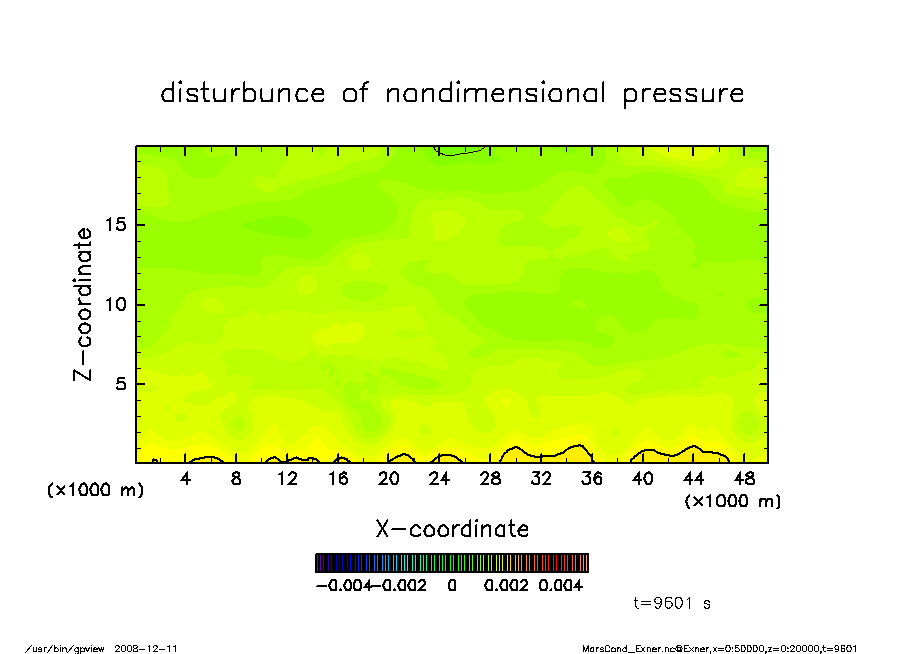

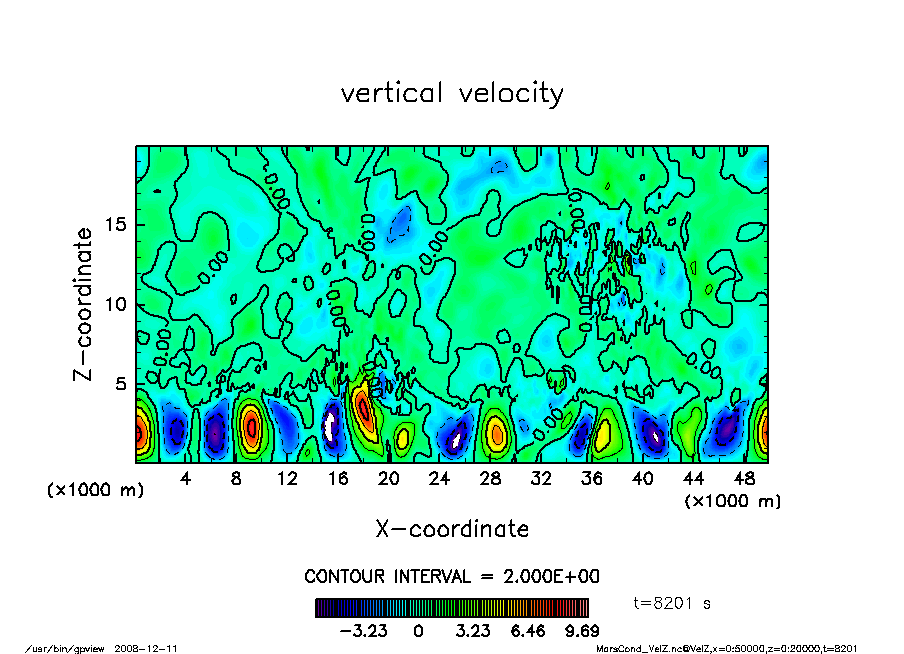

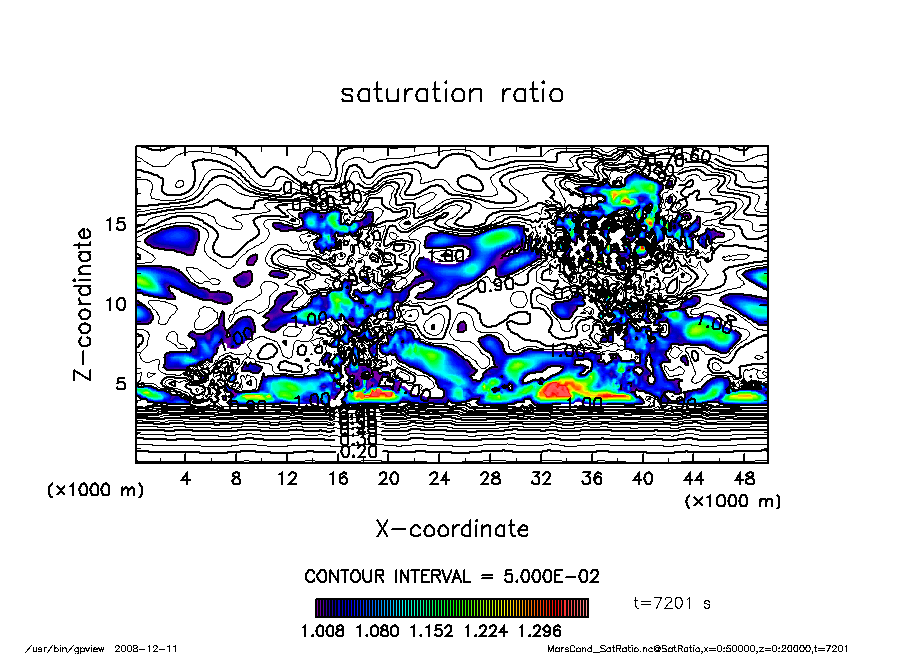

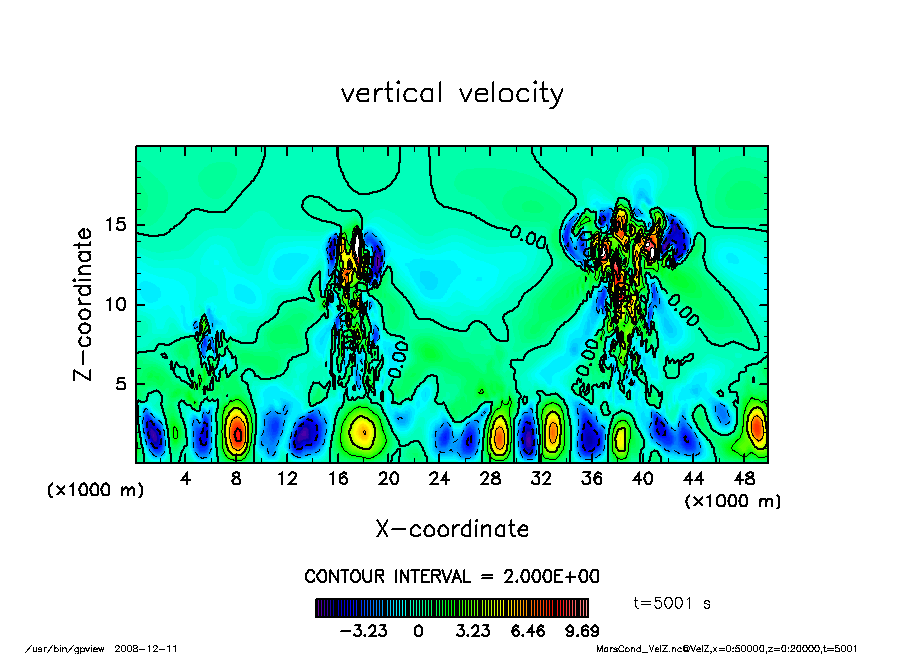

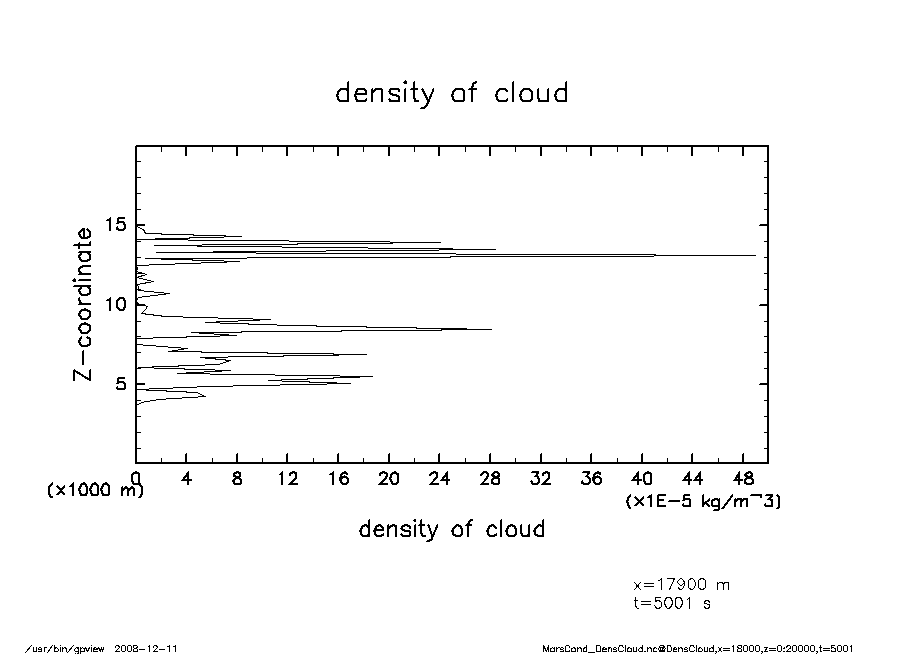

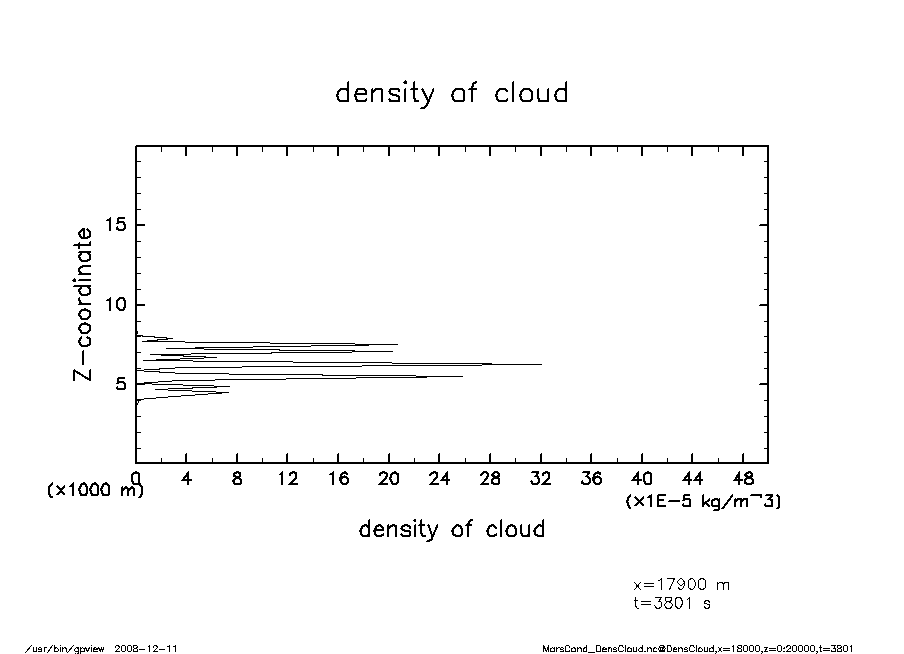

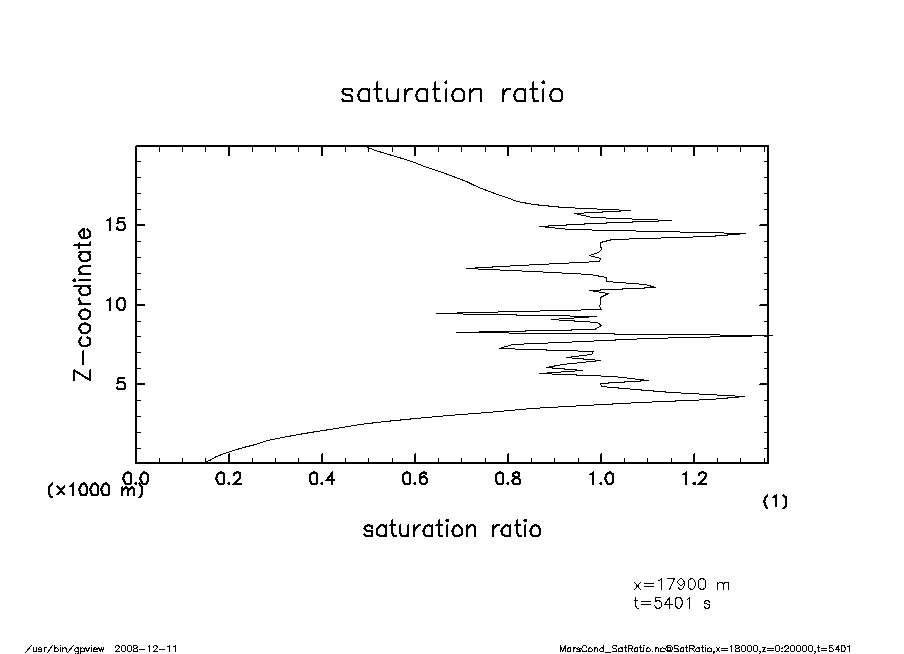

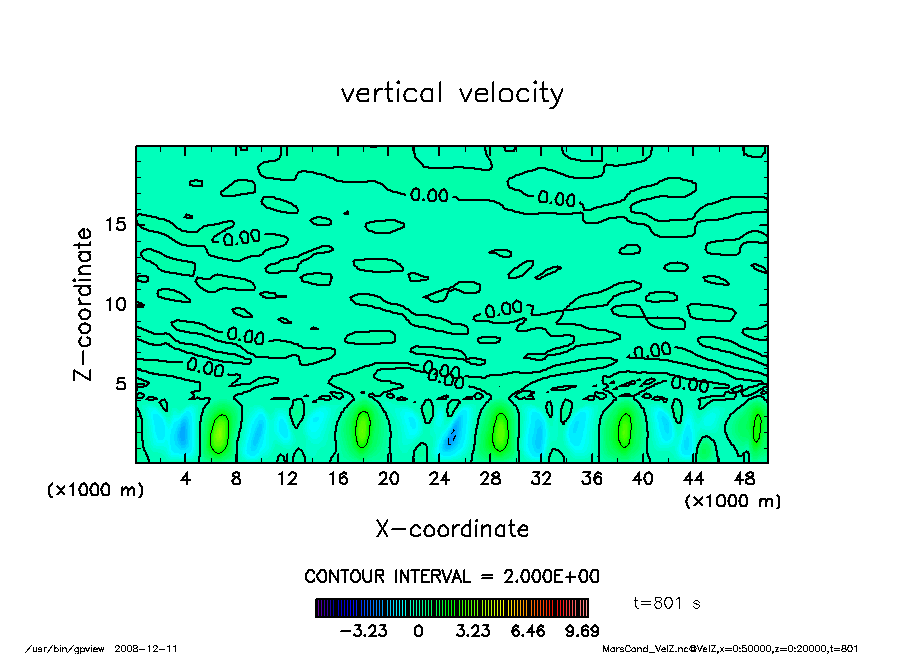

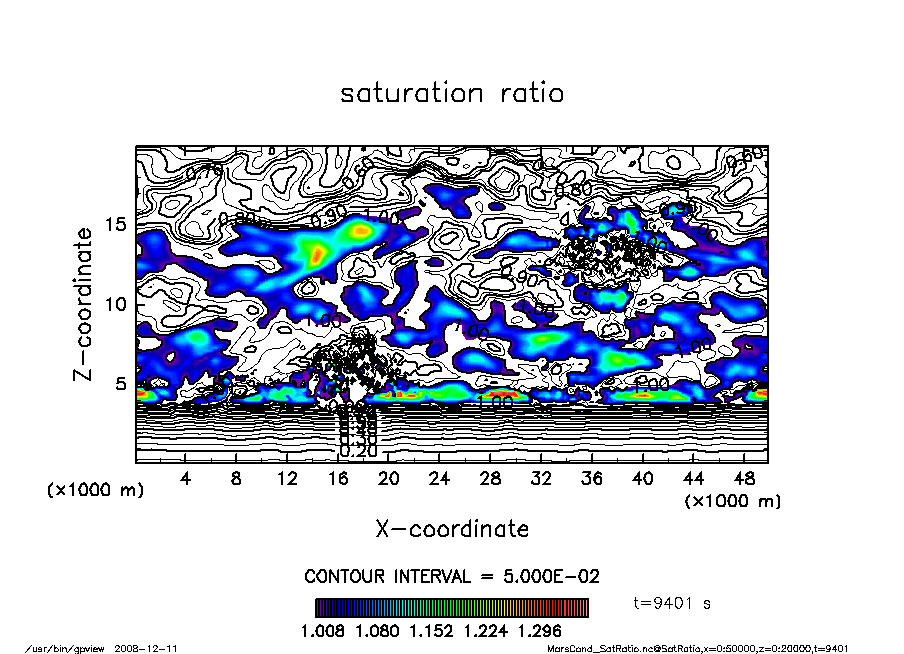

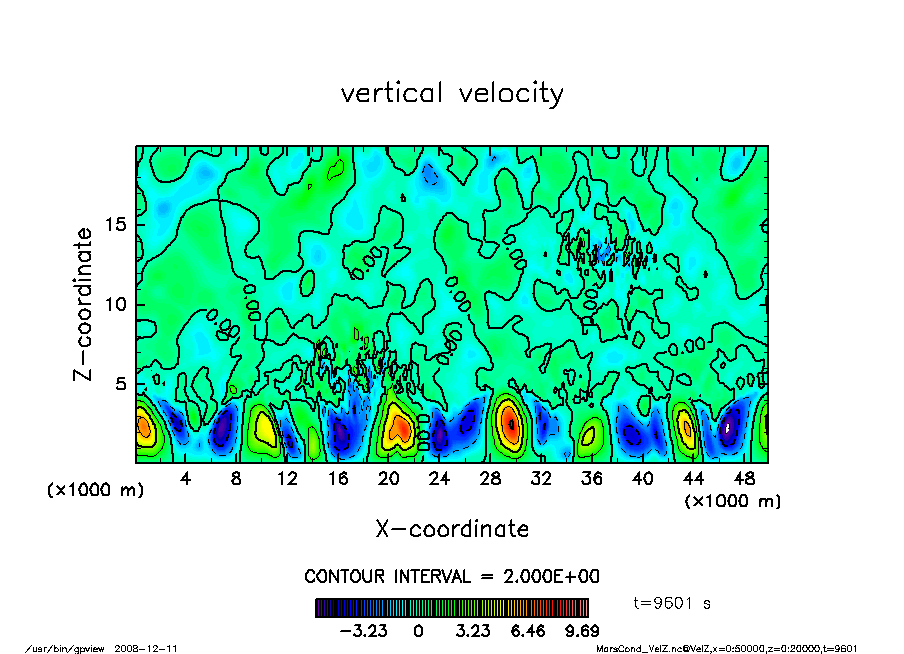

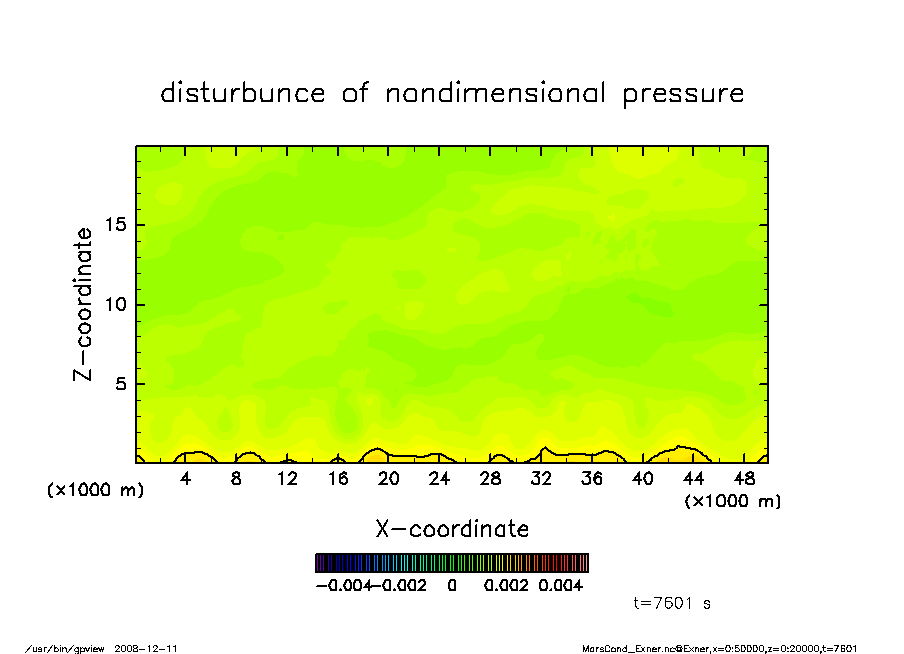

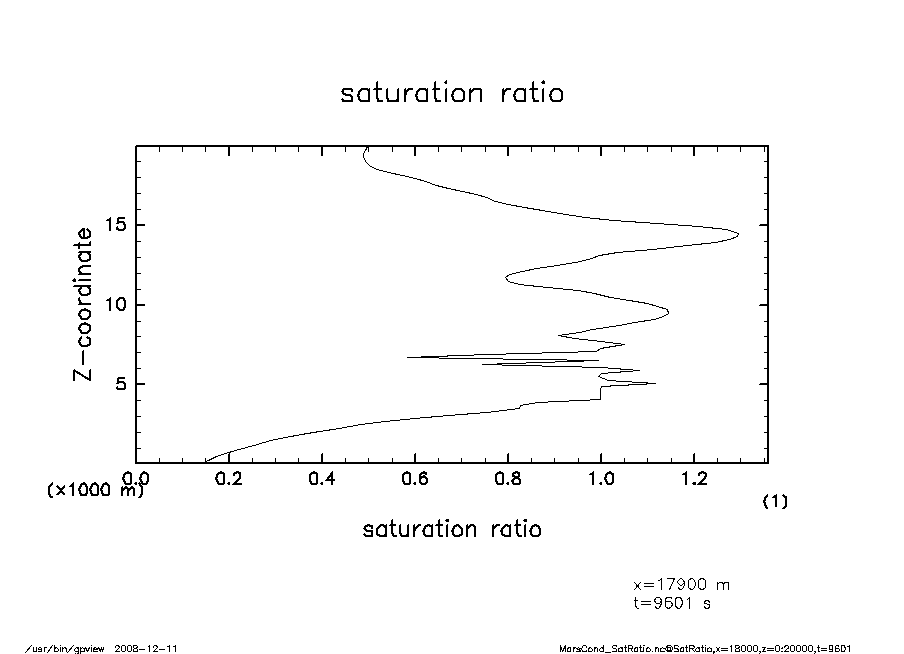

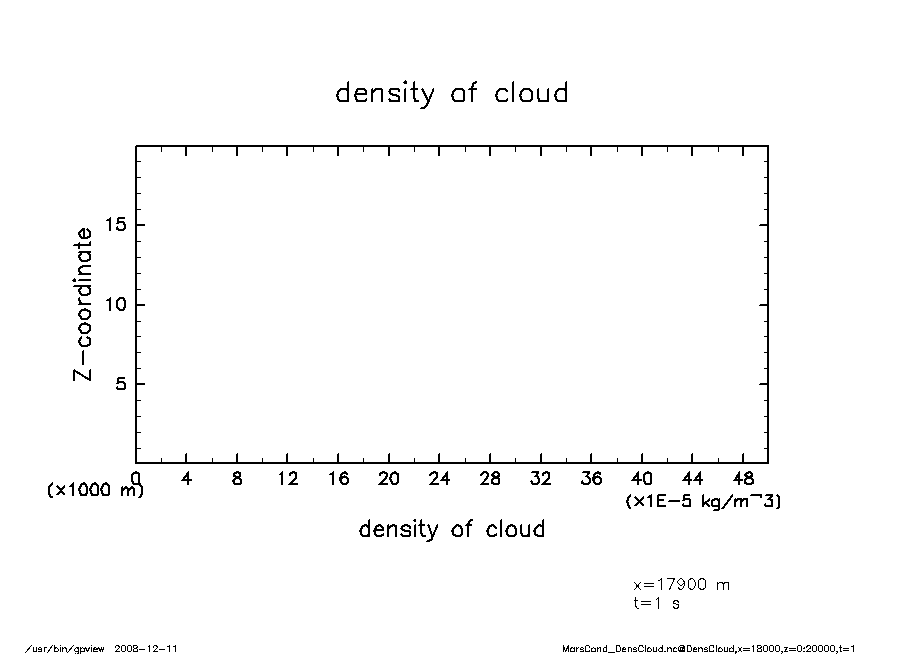

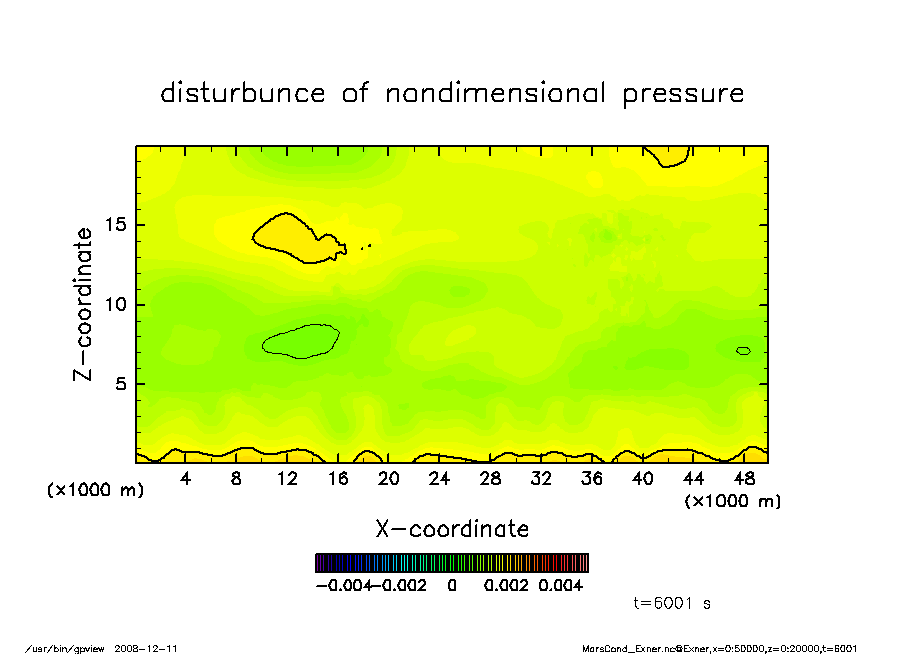

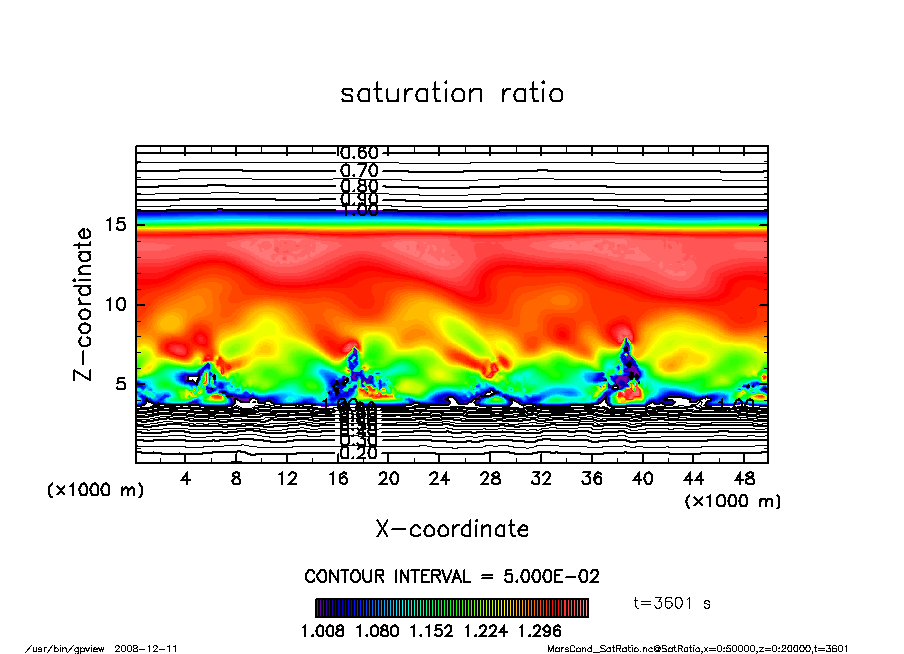

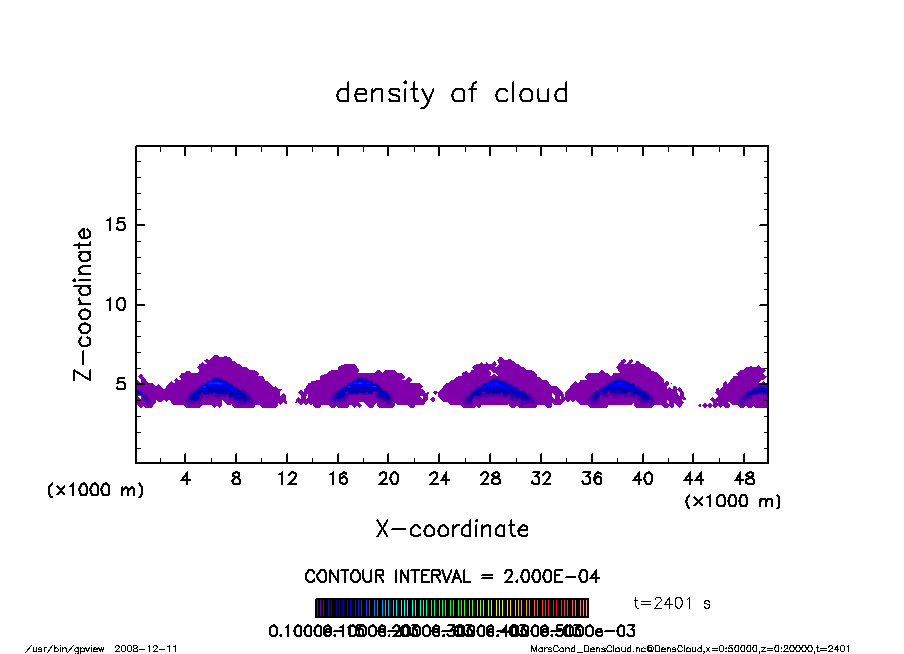

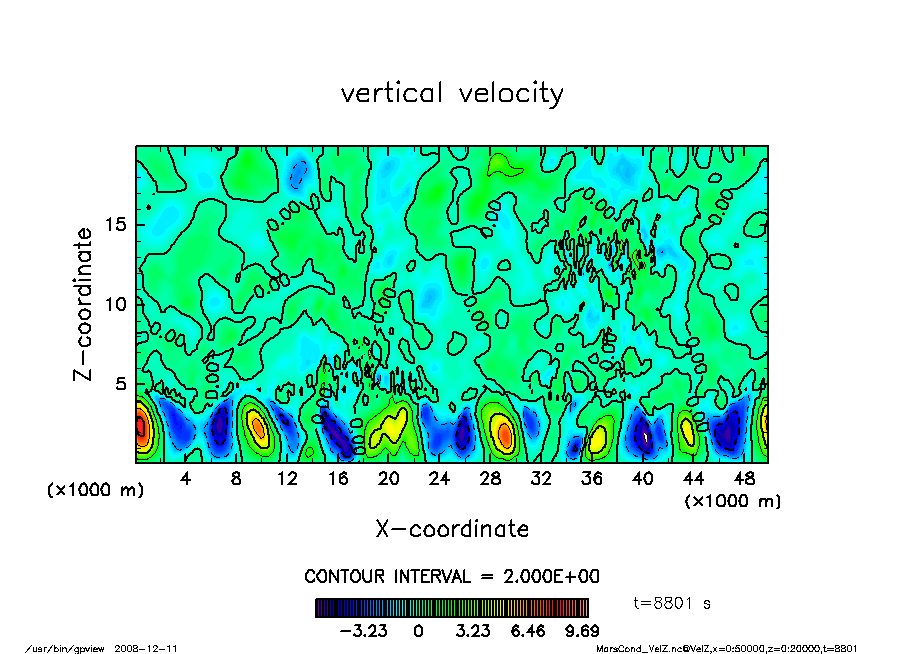

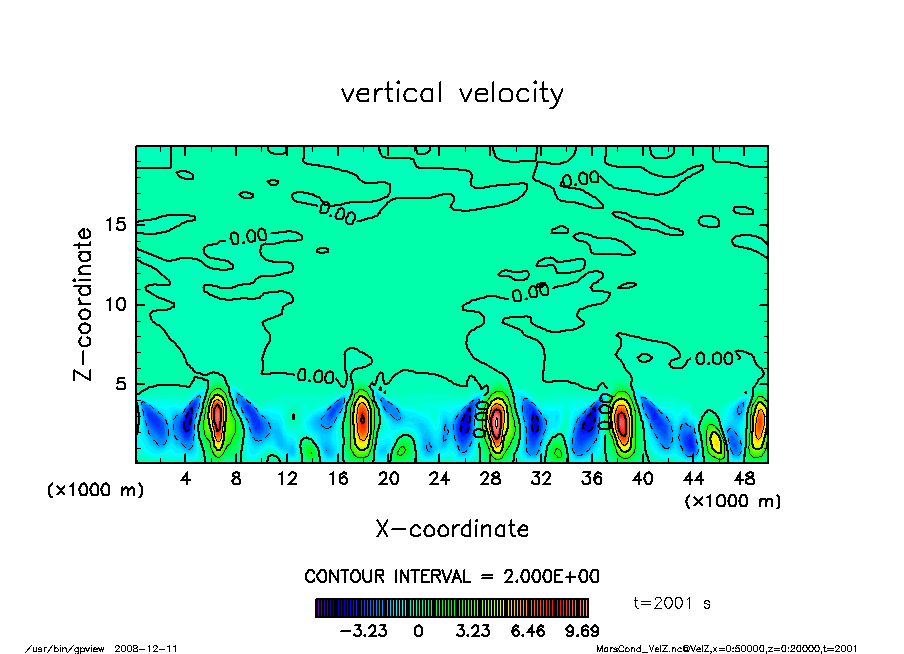

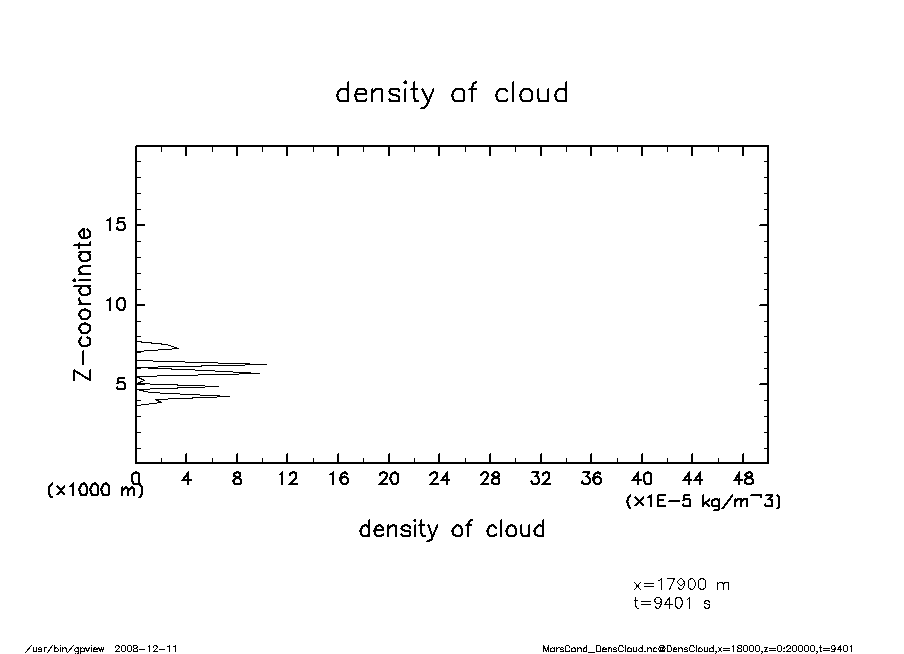

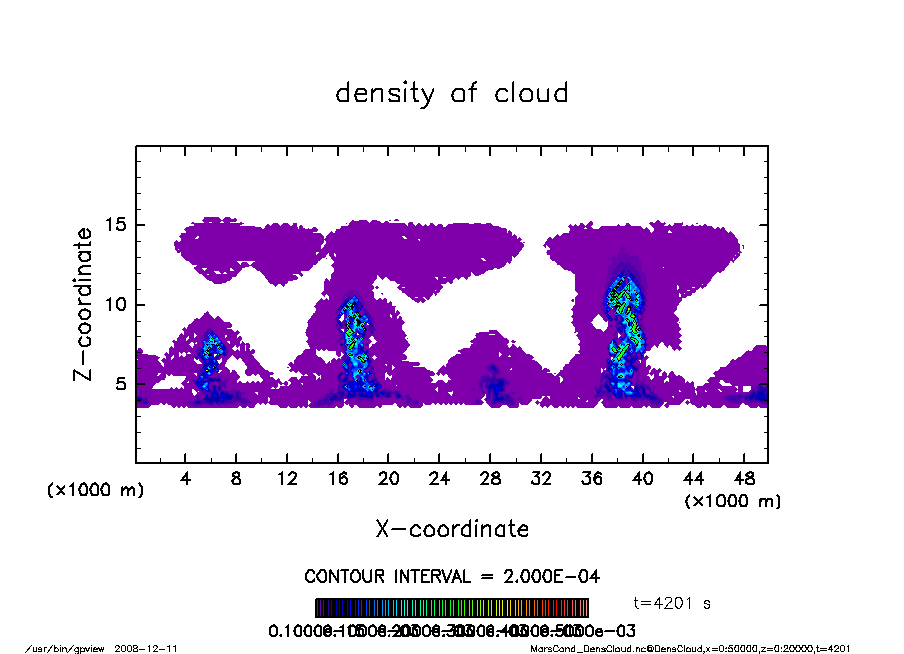

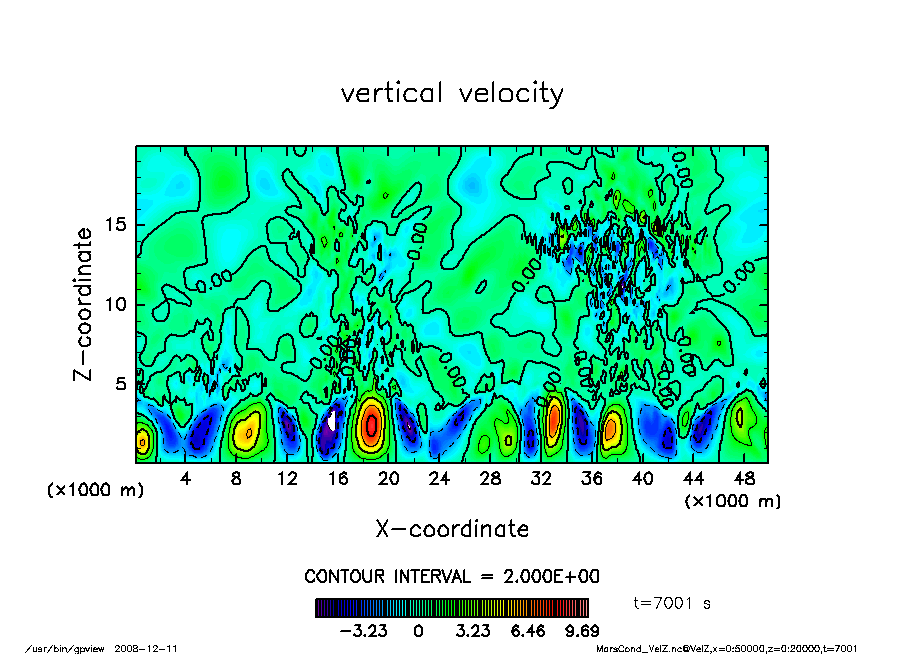

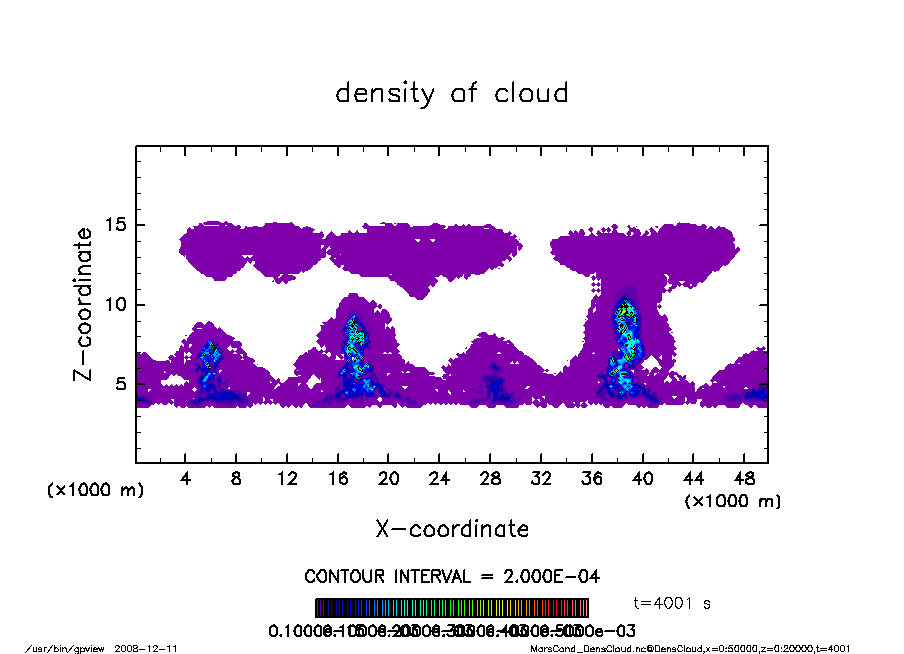

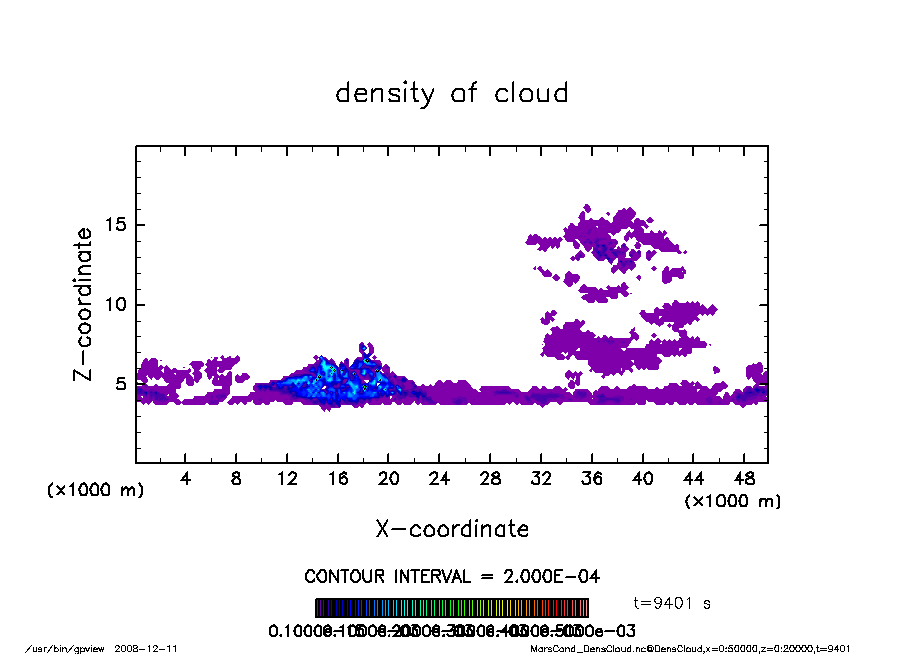

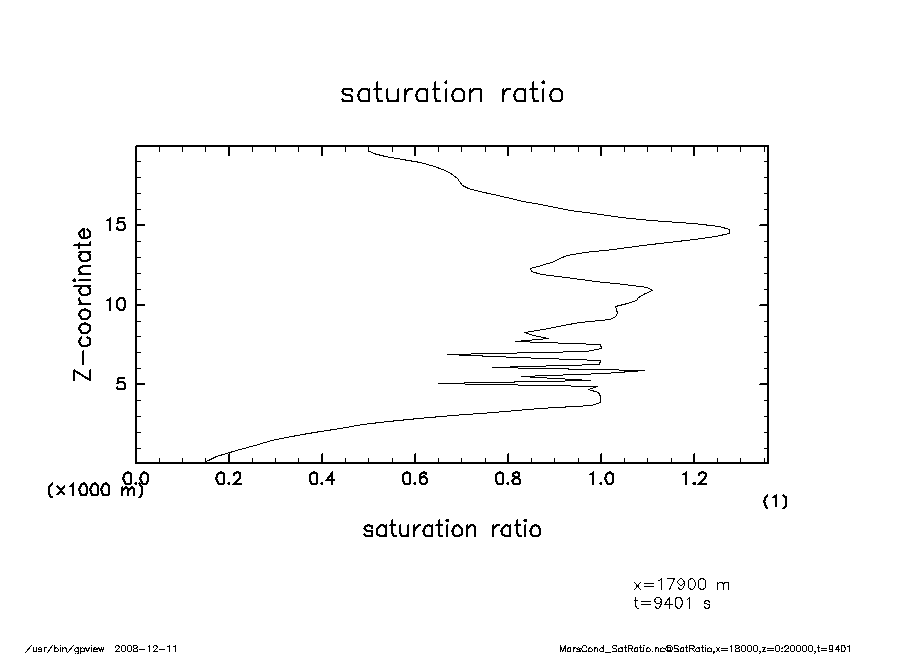

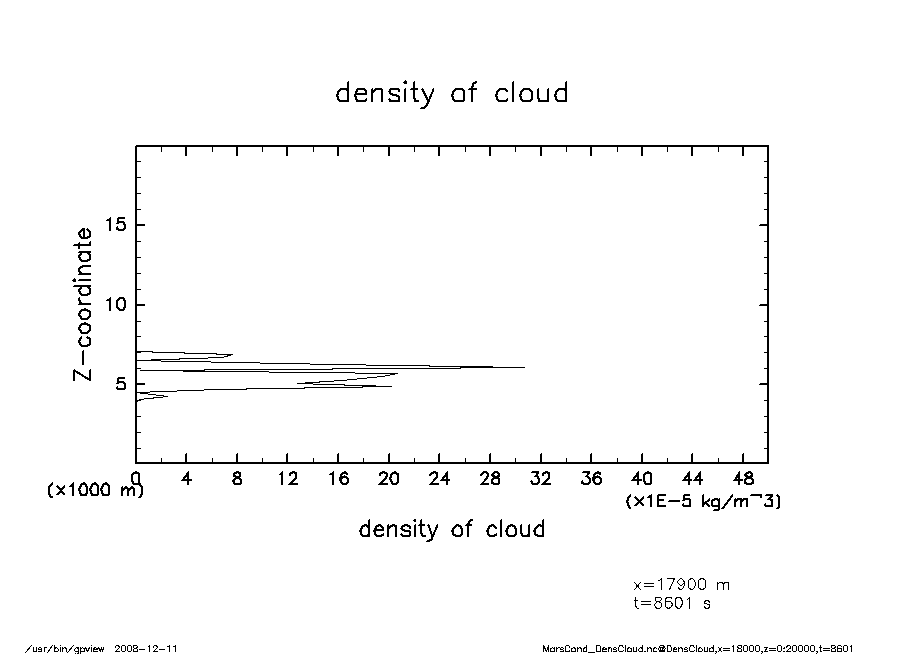

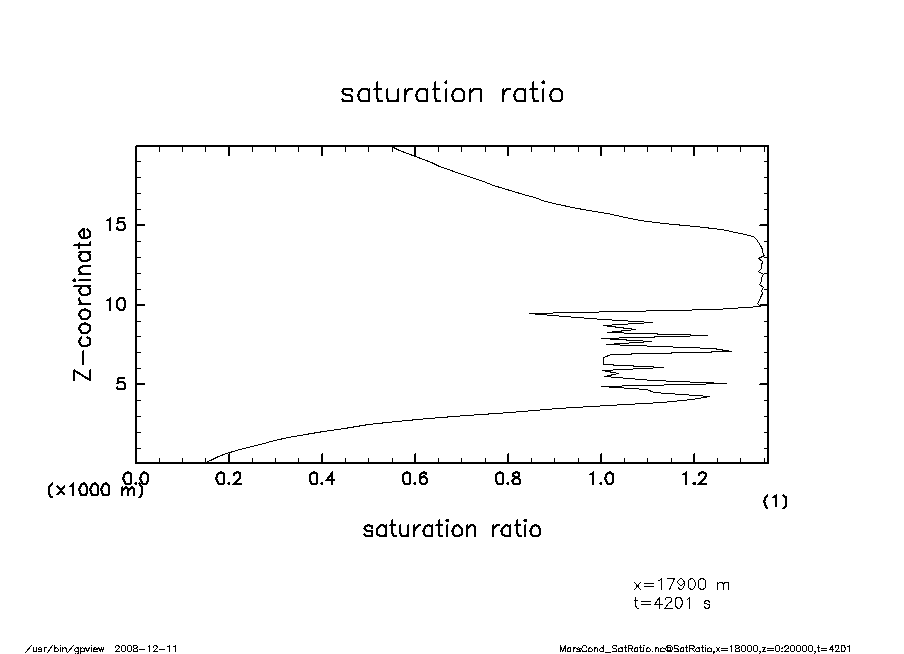

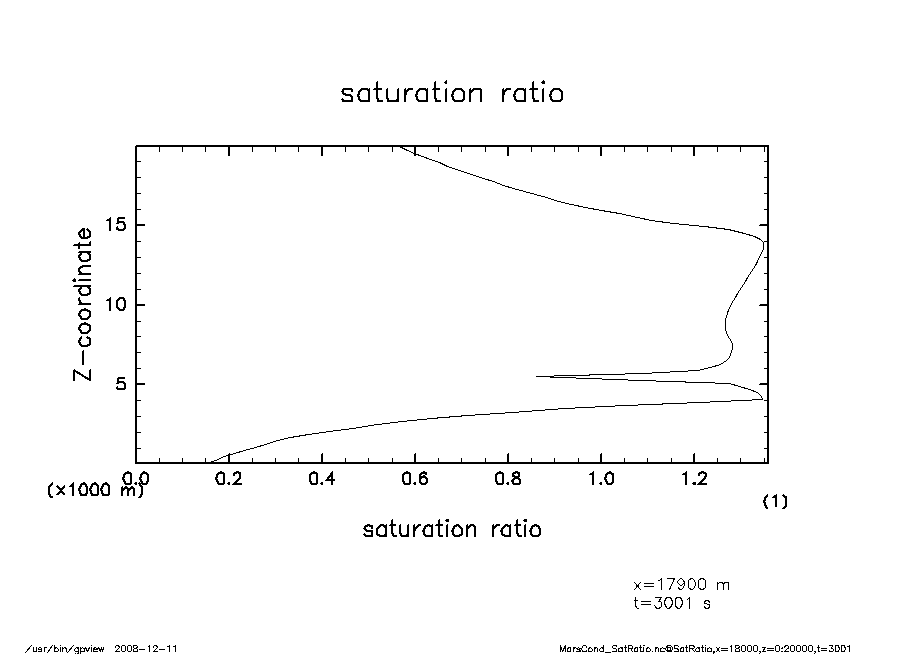

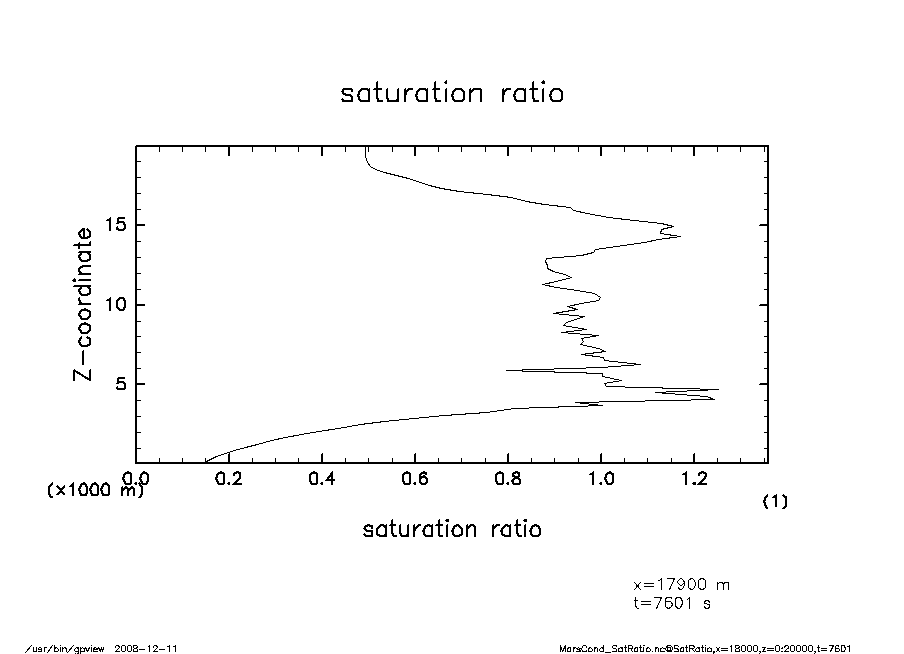

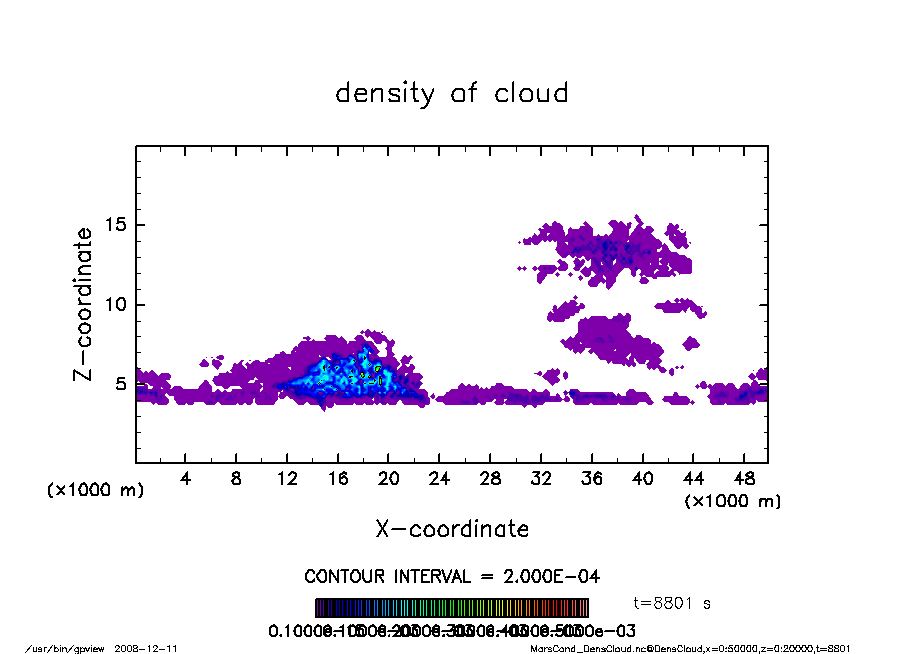

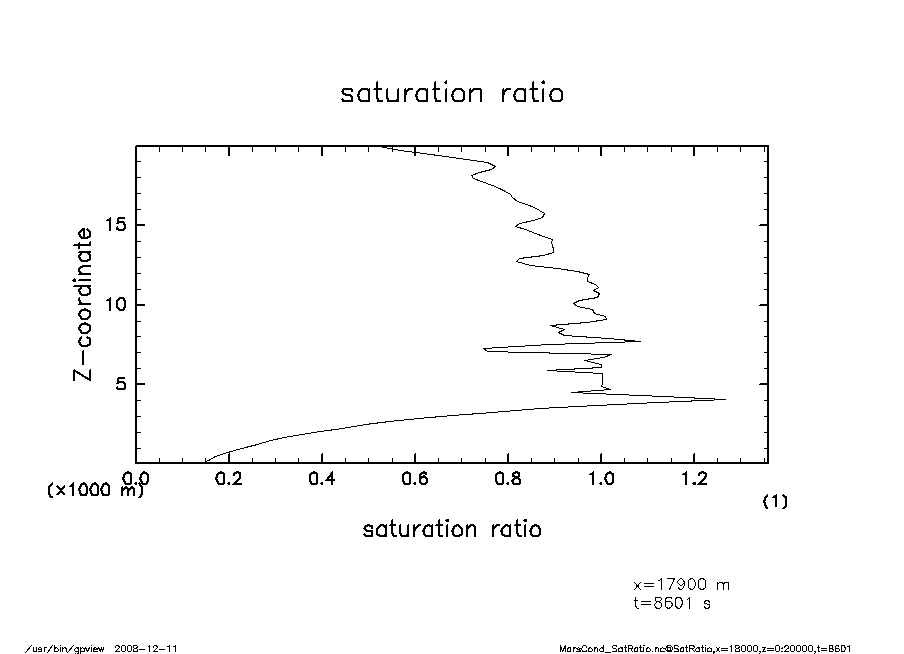

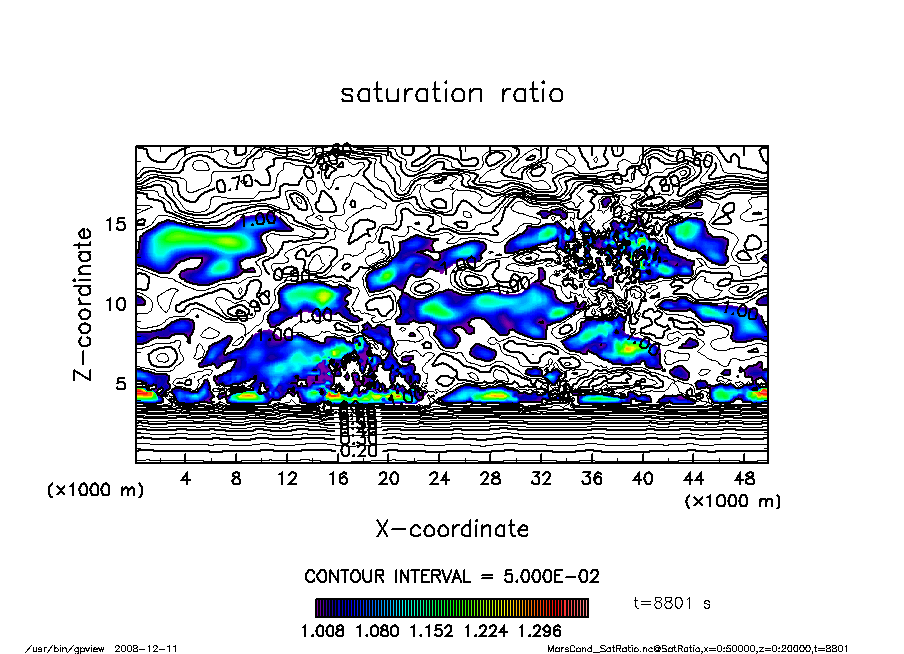

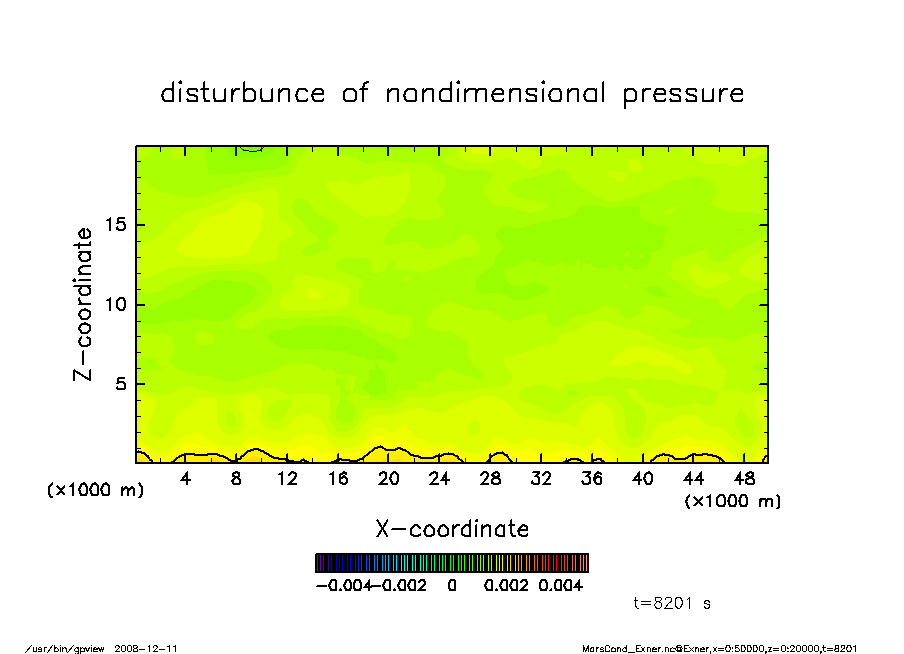

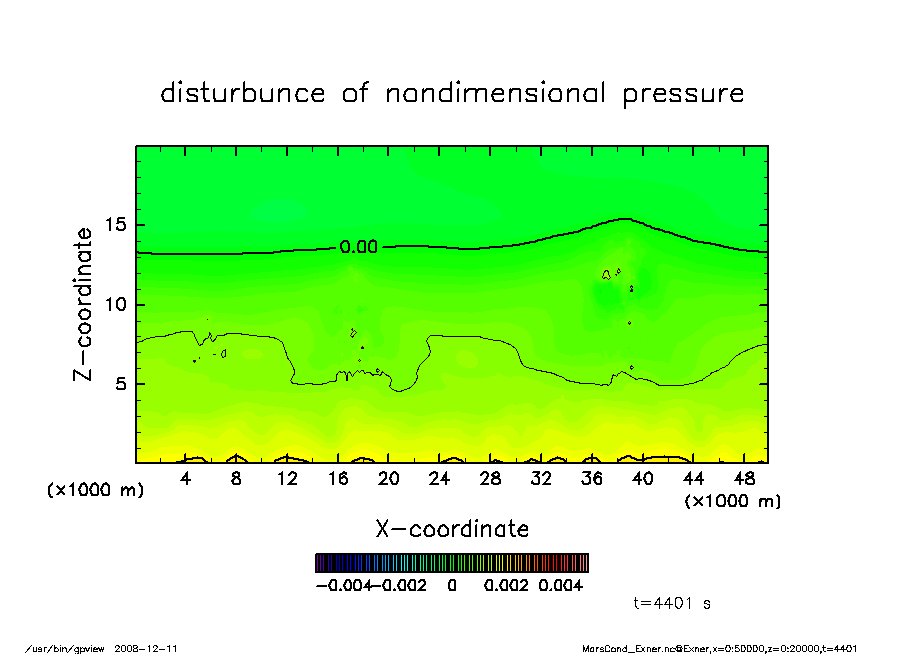

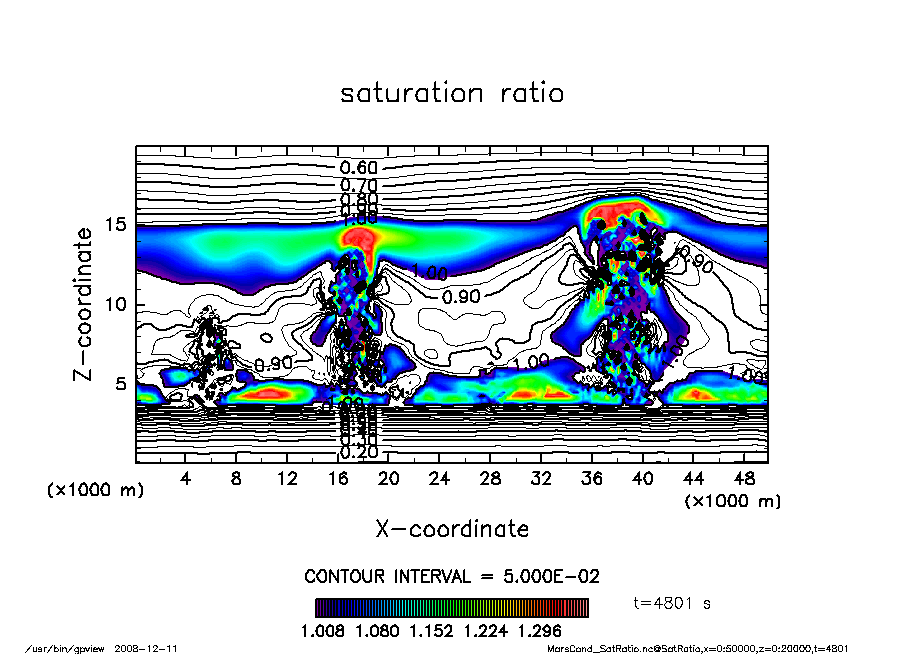

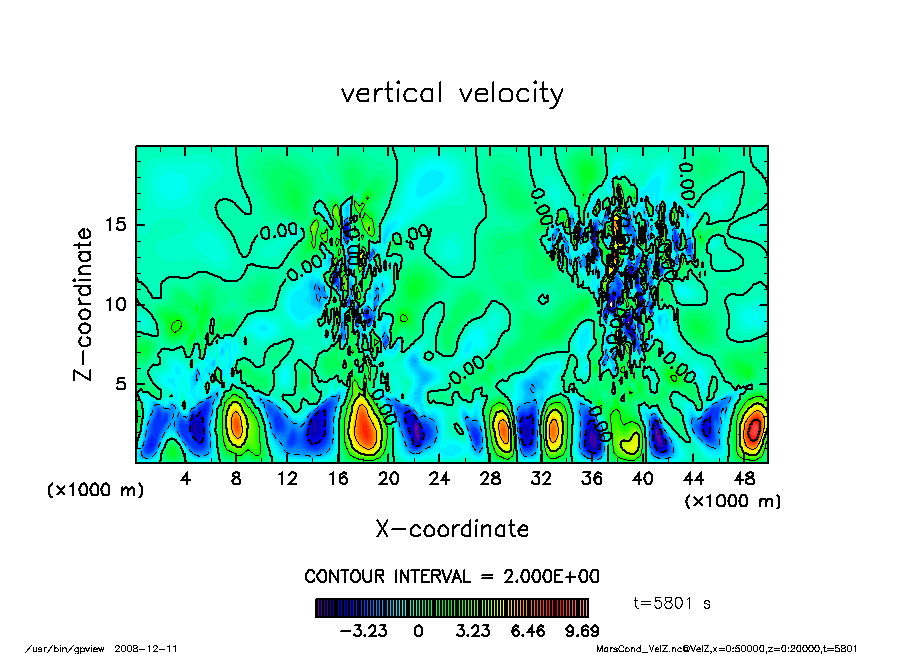

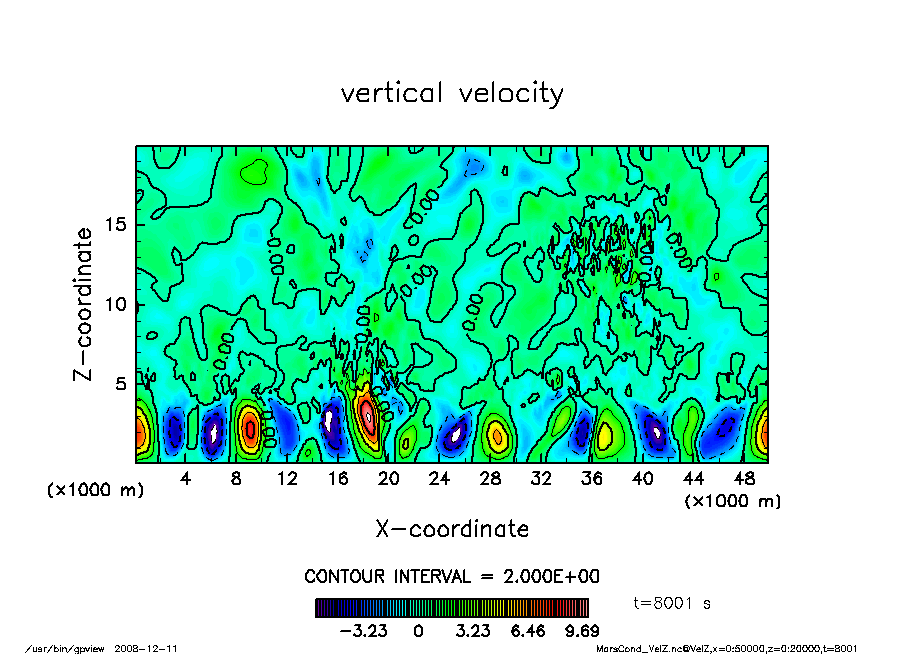

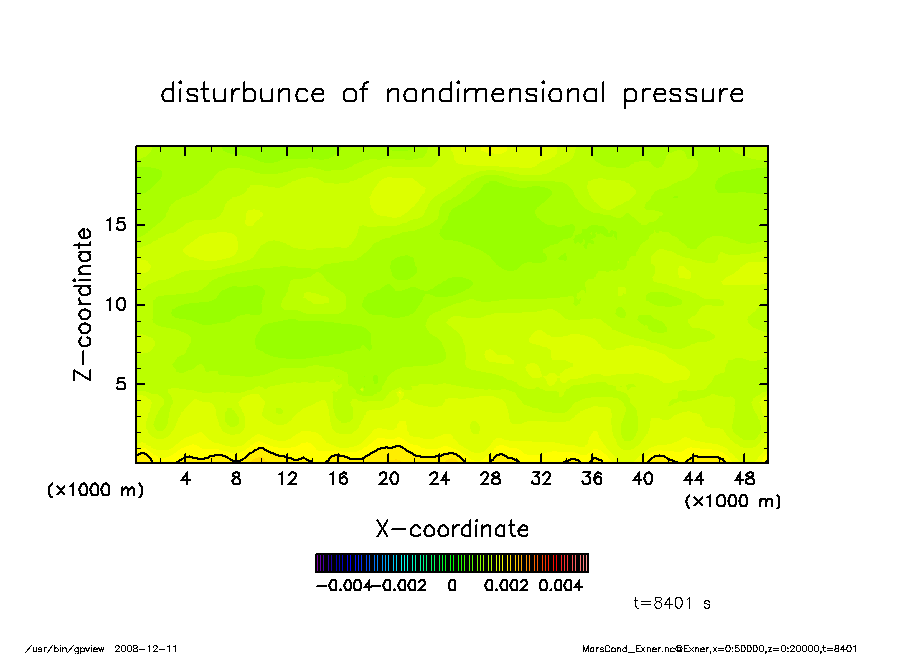

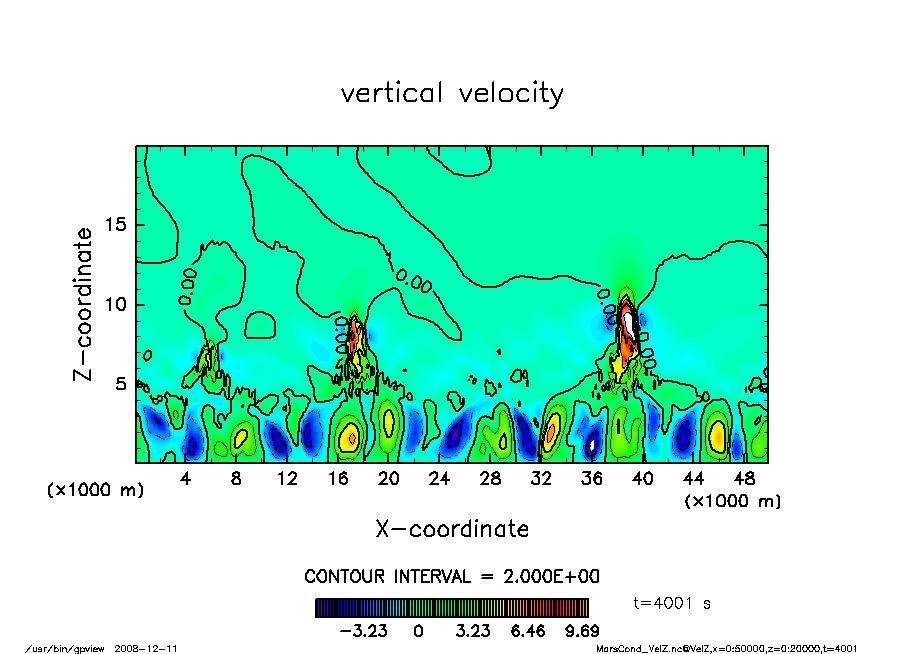

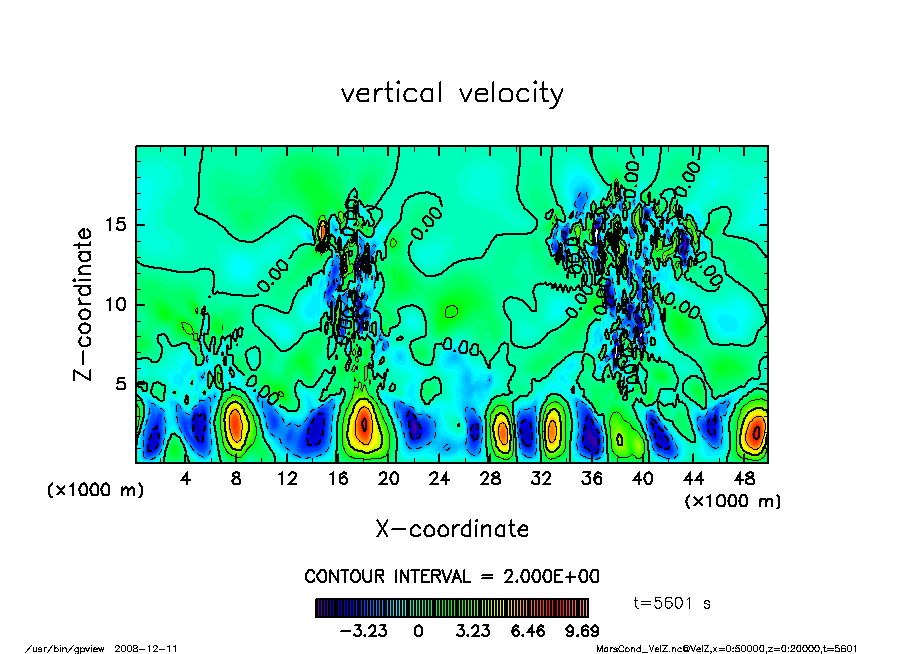

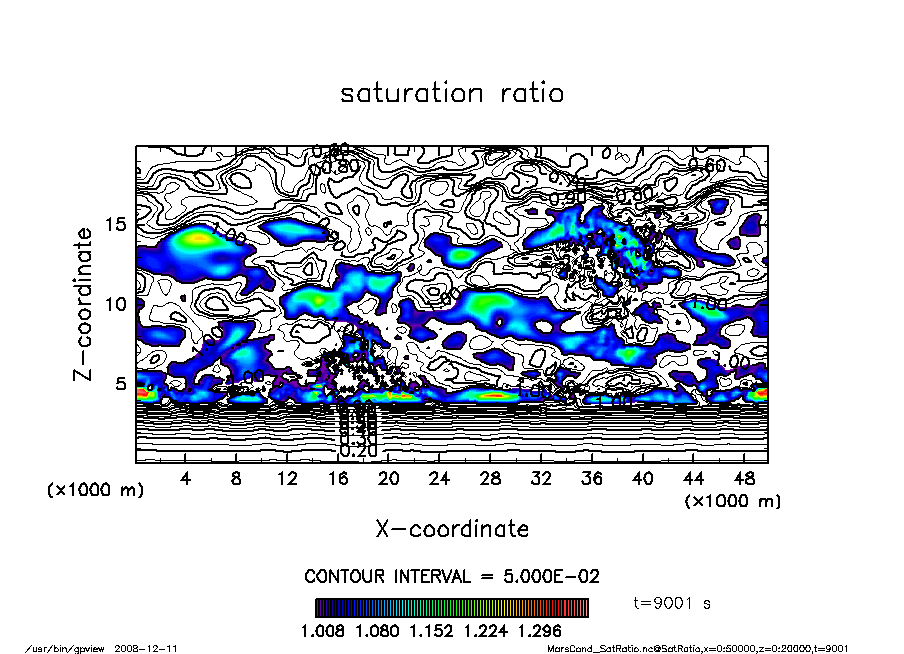

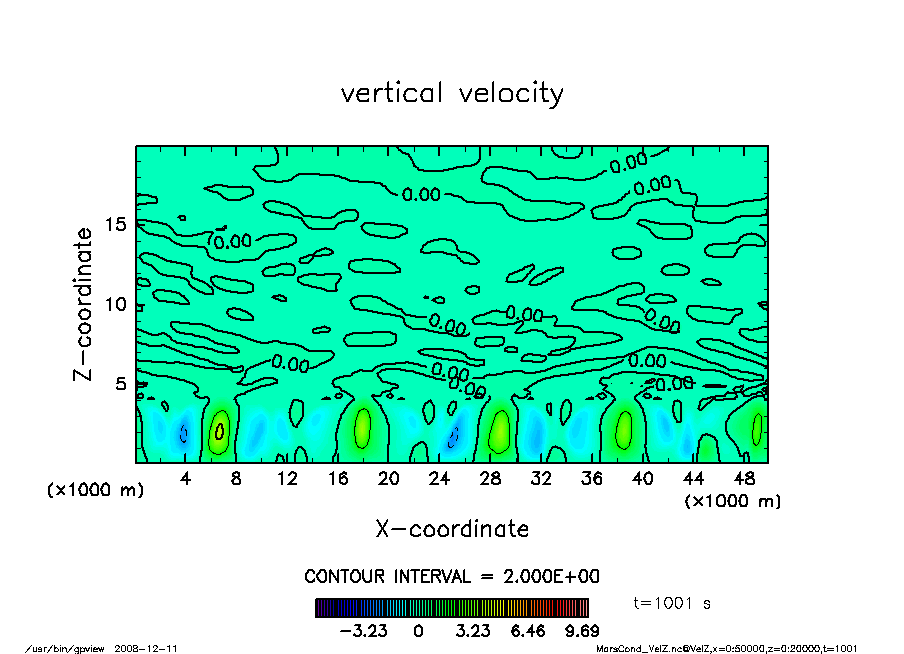

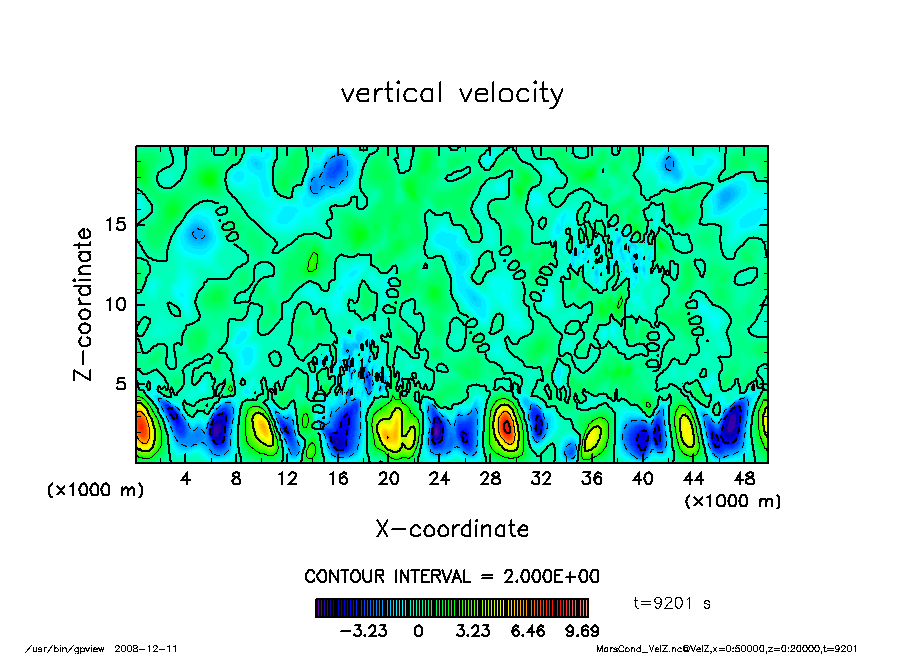

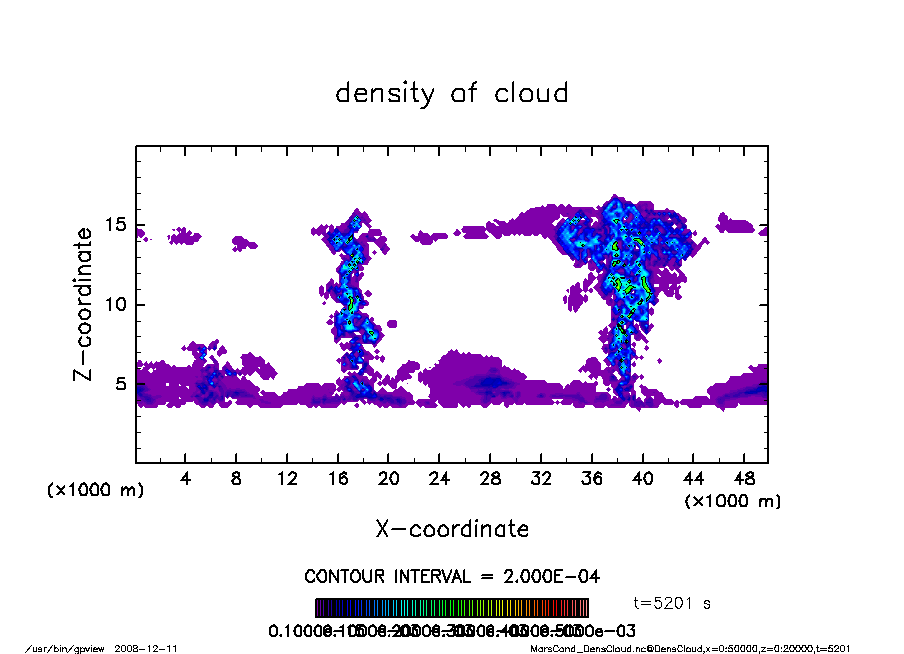

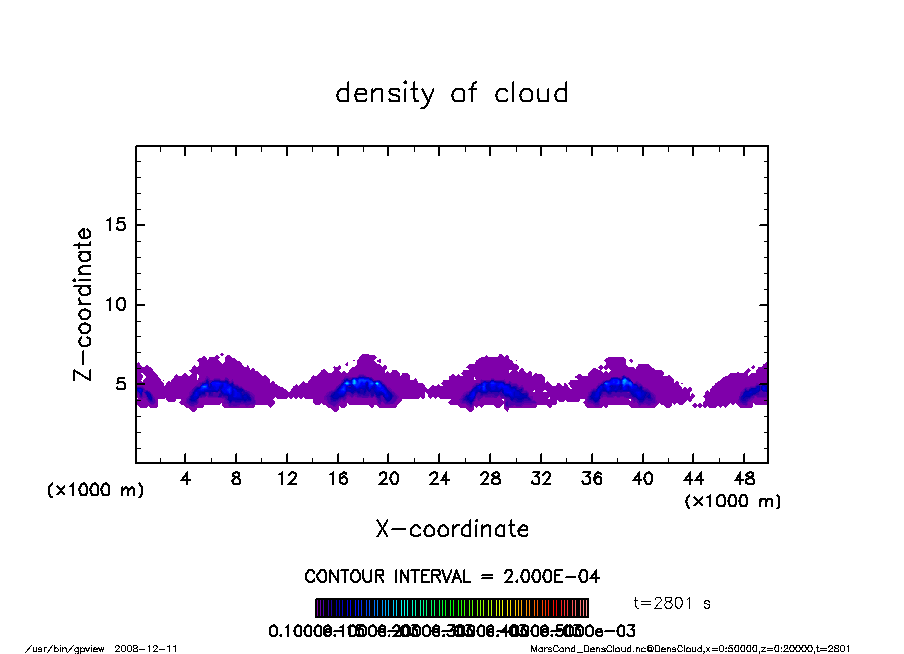

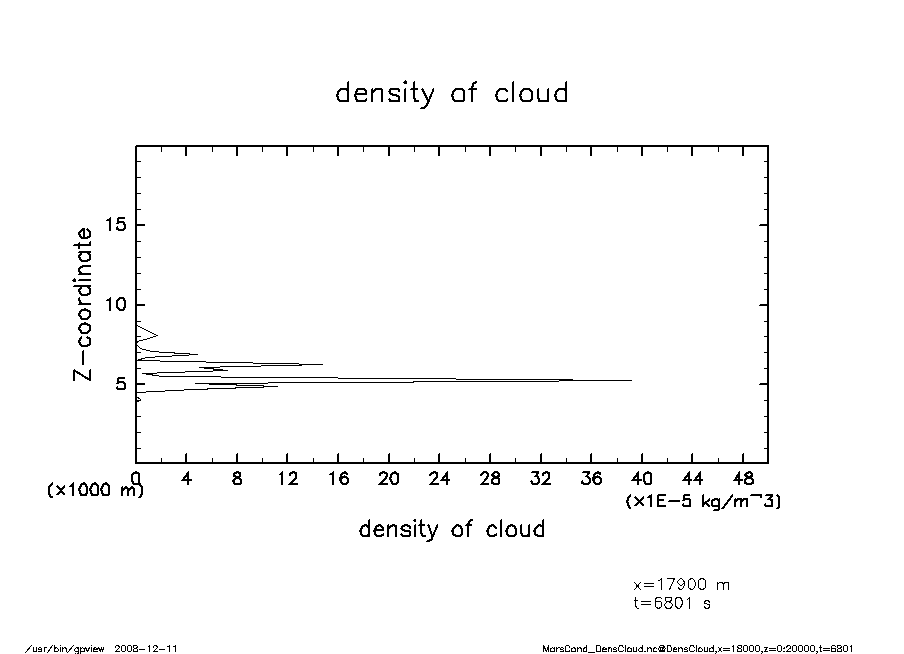

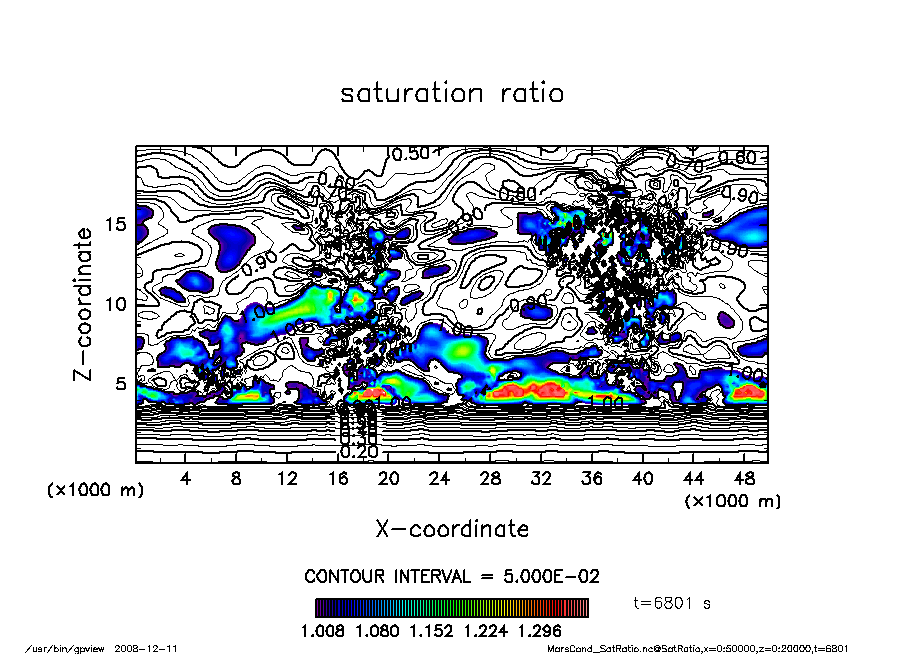

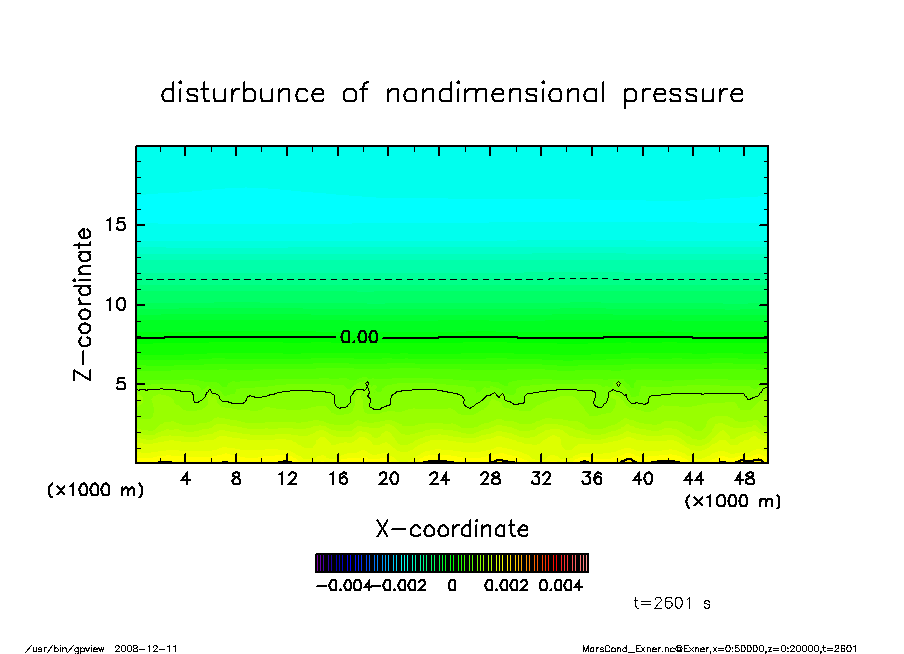

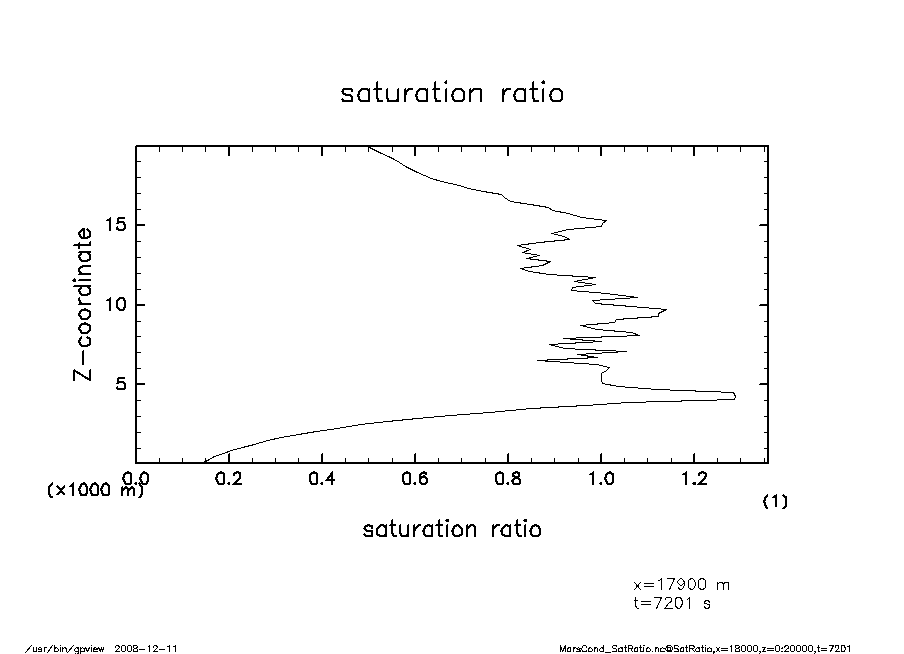

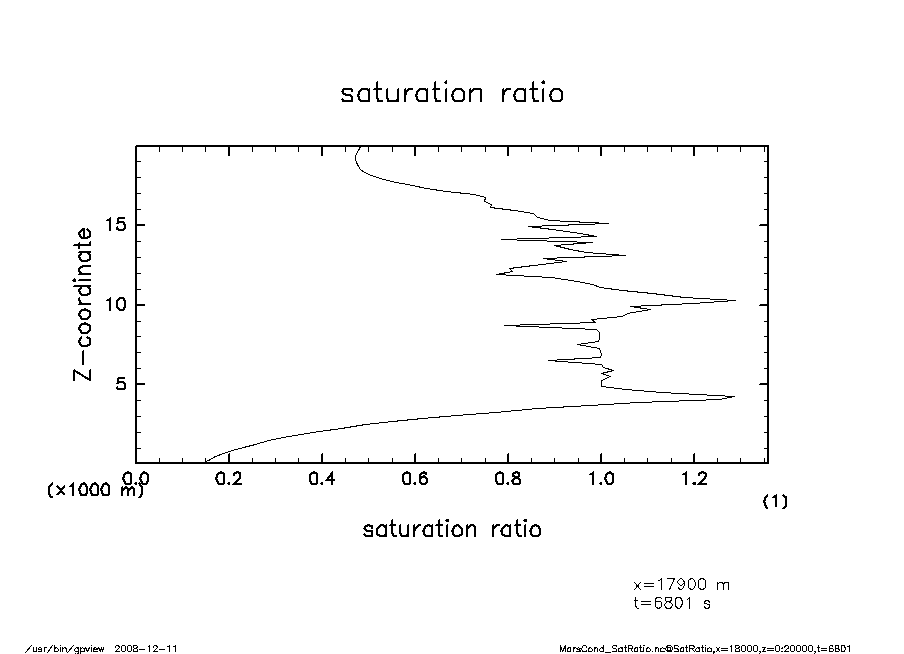

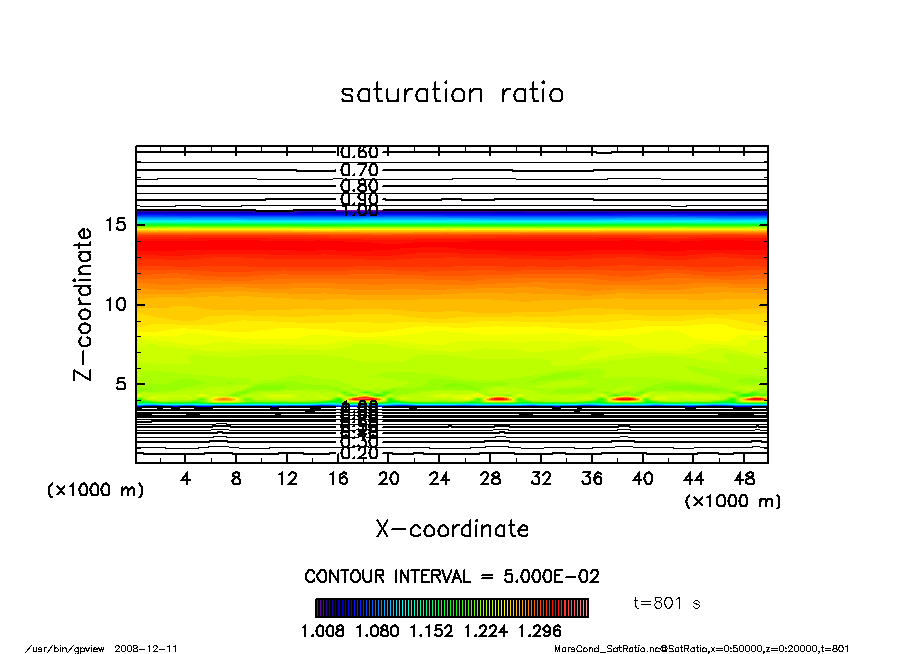

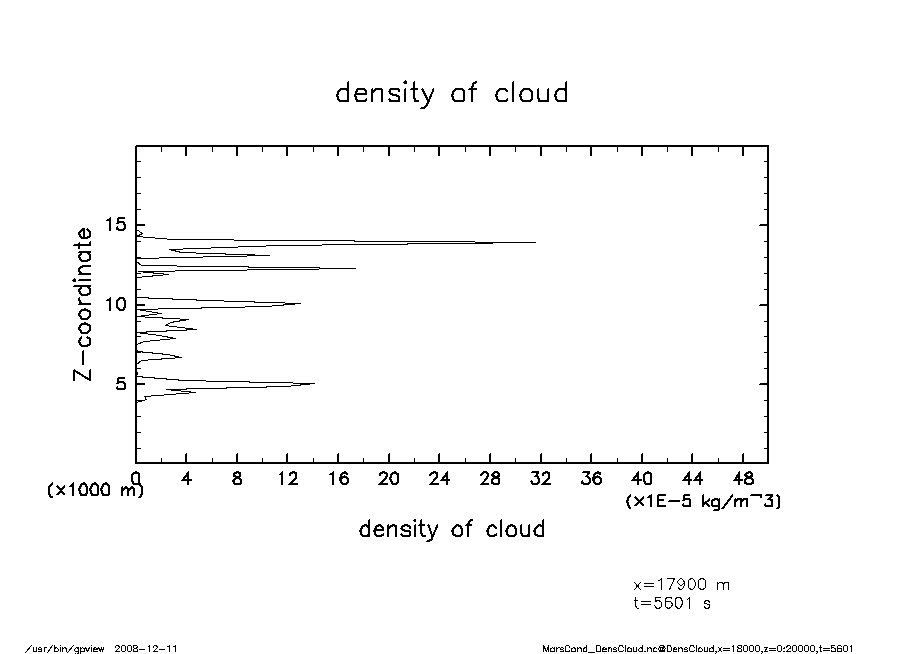

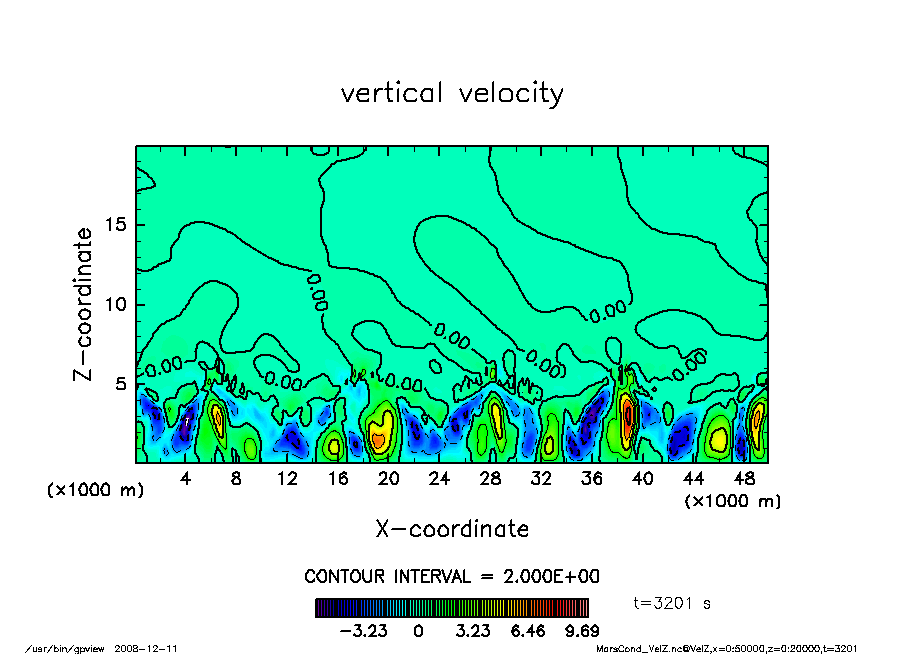

結果一覧
