arare4 テスト計算: サーマルの上昇 (2次元版)

概要

arare4 ソースコード中の音波の伝播を計算するモジュールのテストを行う.

• 初期の温位擾乱分布はガウス分布

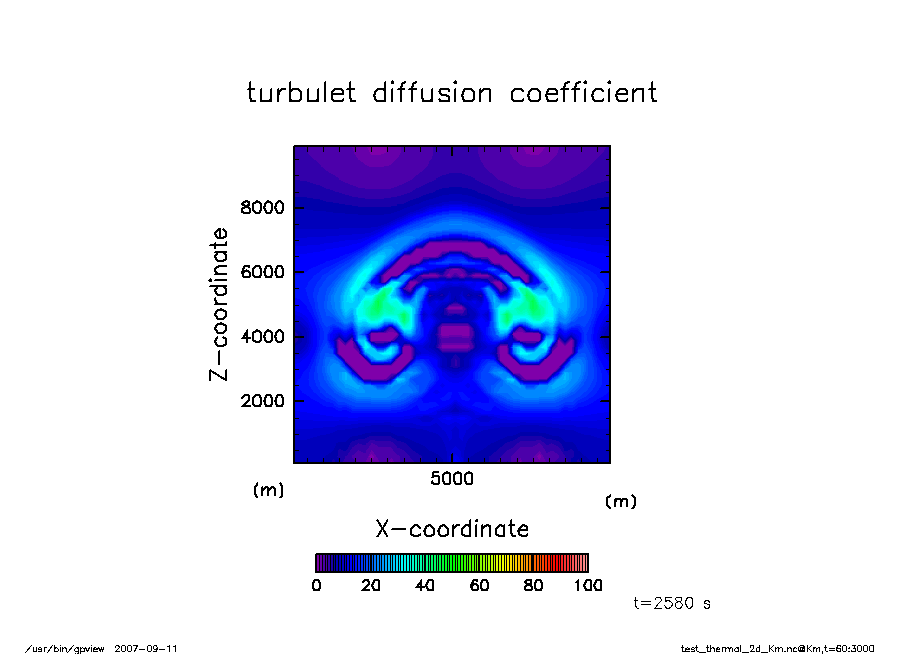

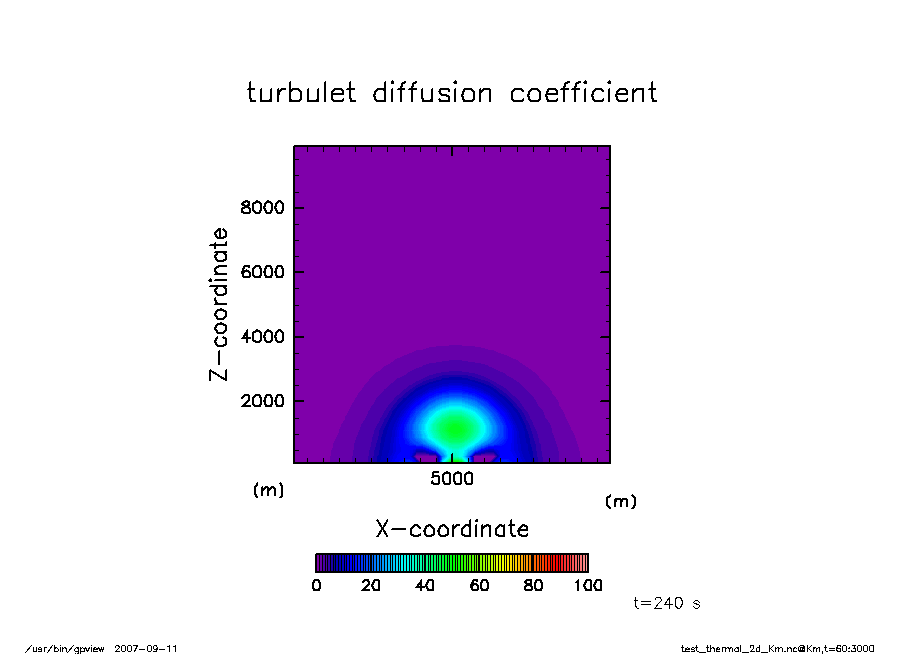

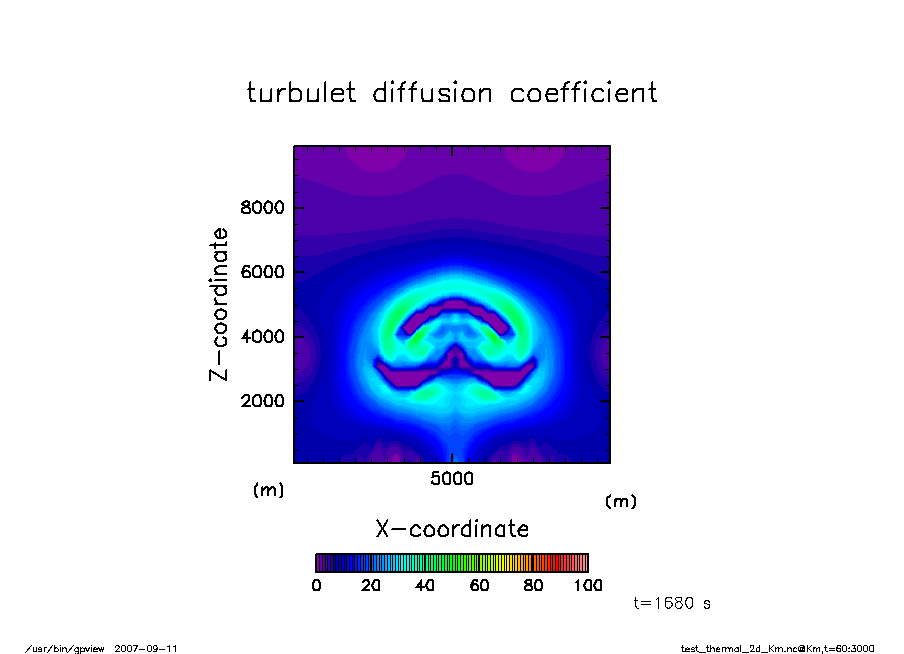

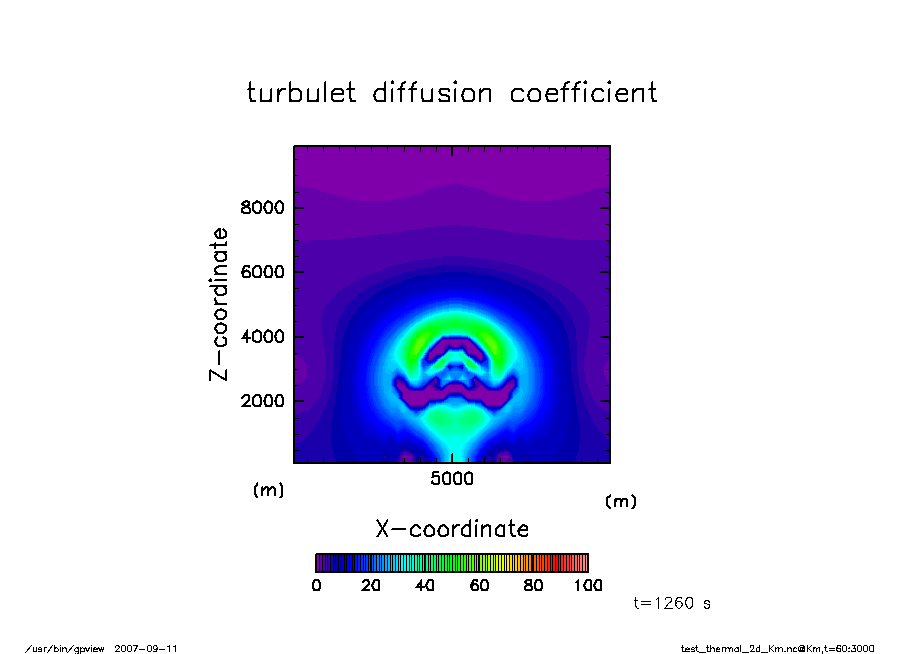

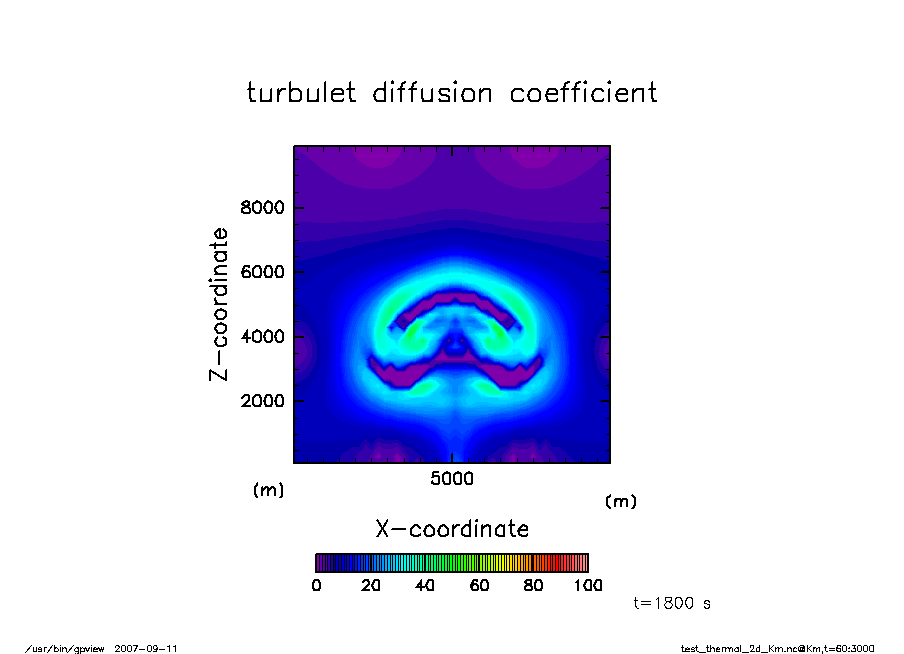

• 乱流拡散係数は, シアーと浮力による乱流エネルギー生成と散逸とのつりあいを 仮定し, 診断的に計算

ソースコード

• arare4-20070911.tgz を改変したもの
  • メインプログラムは arare_thermal.f90

計算設定

• 設定ファイル
• 設定概要
  • 音波減衰項の係数
    • 2.0e-7
  • 計算領域
    • 水平 10 km, 鉛直 10 km
  • 格子点数
    • 水平 50 点, 鉛直 50 点
  • 時間格子間隔
    • 長い時間ステップ: 2.0 sec, 短い時間ステップ 2.0e-1 sec
  • 境界条件
    • 水平方向周期境界, 鉛直境界で w = 0 m/sec
  • 初期条件
    • u = 0 m/sec, w = 0 m/sec
    • θ = 300 K の等温位大気に振幅 0.1 K のガウス分布型の擾乱を加える
  • 計算モデル時間
    • 3000 sec

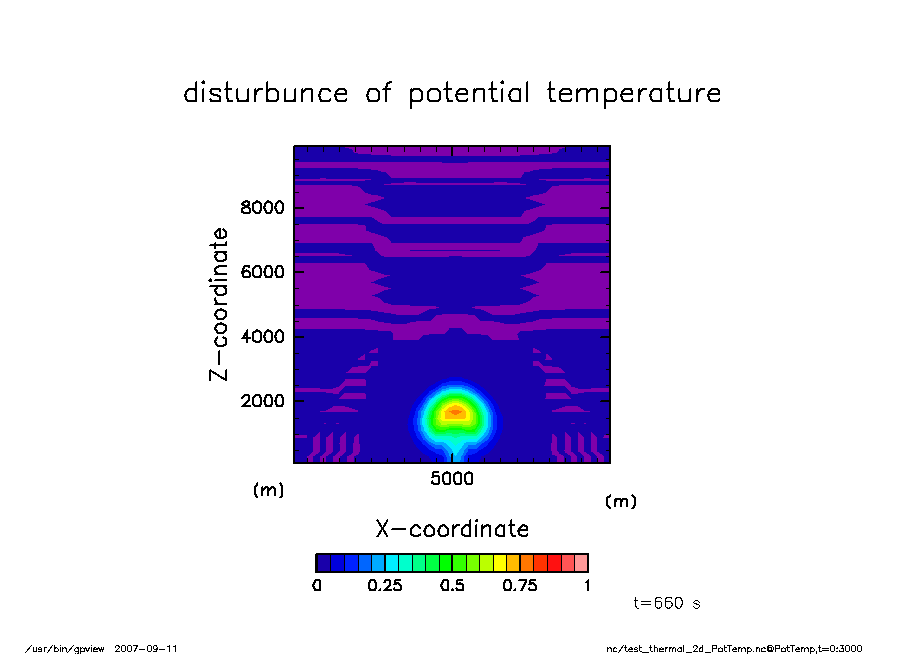

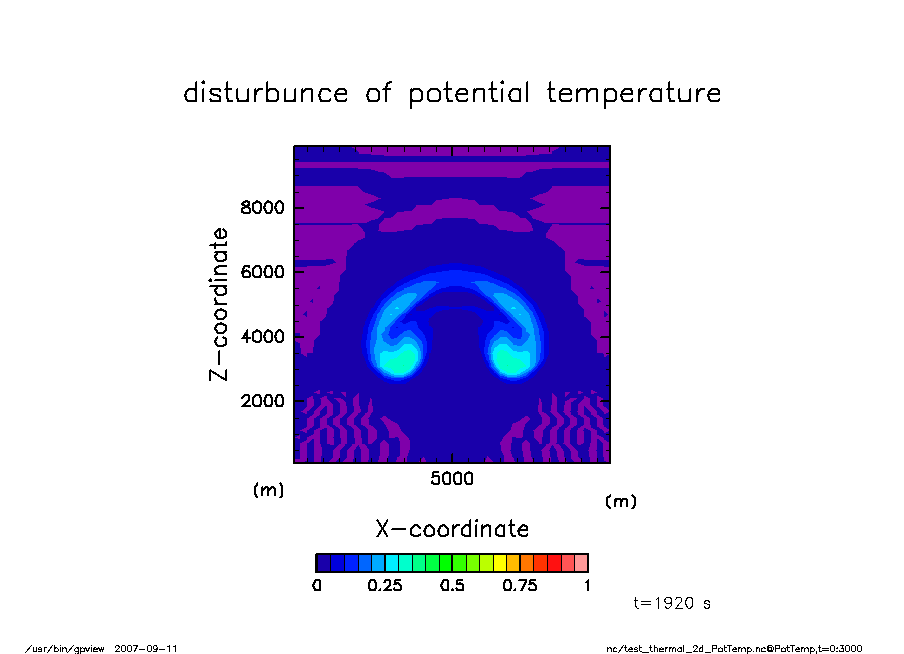

計算結果

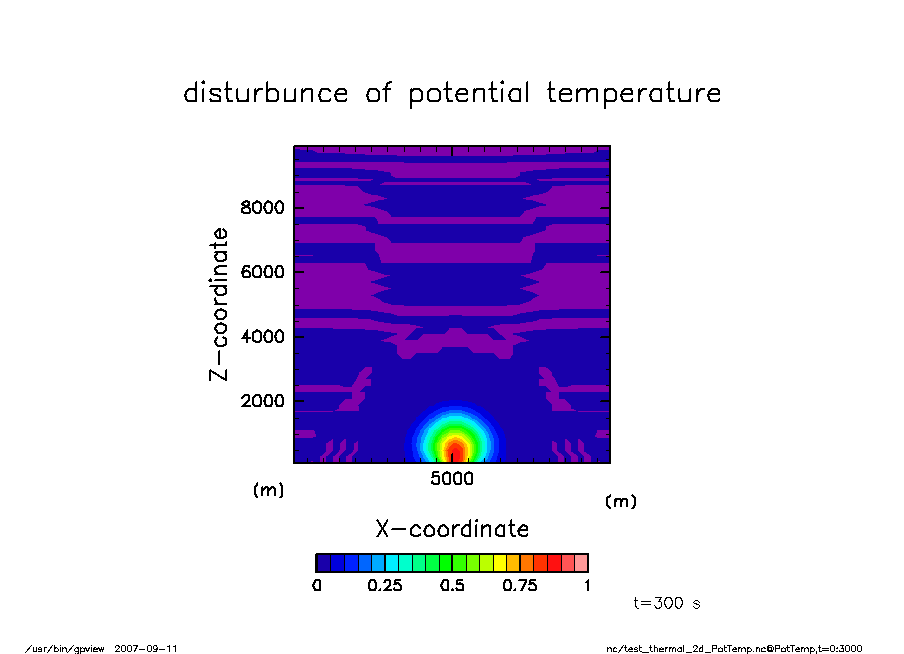

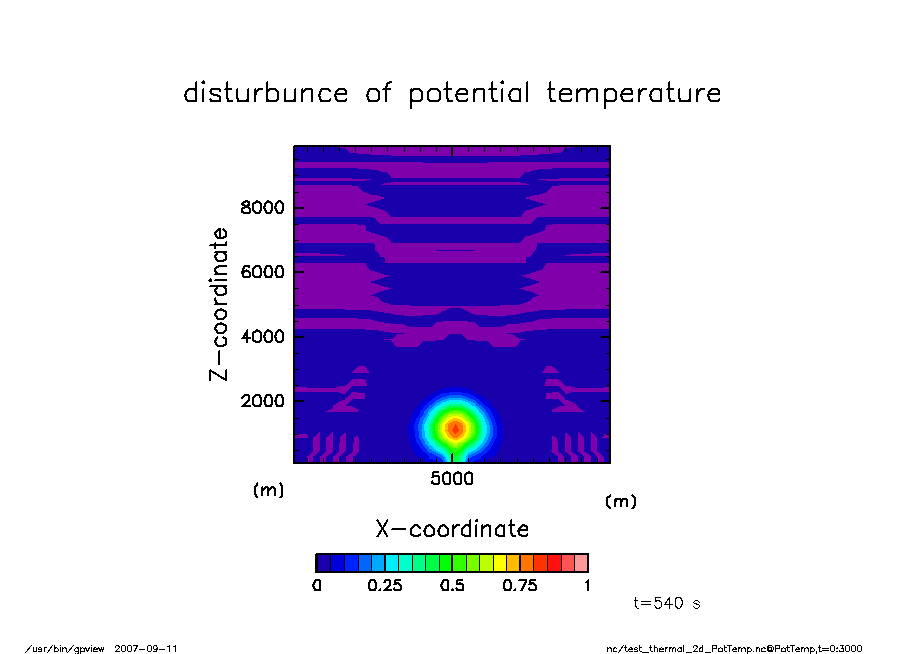

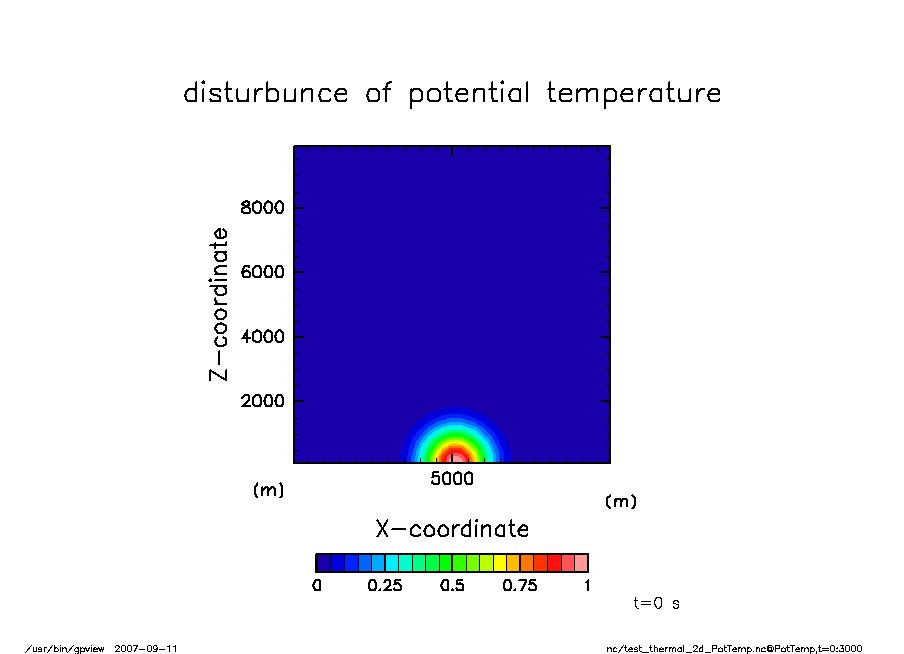

test_thermal_2d_pottemp_001.png 初期の温位擾乱分布
