Double-diffusive convection

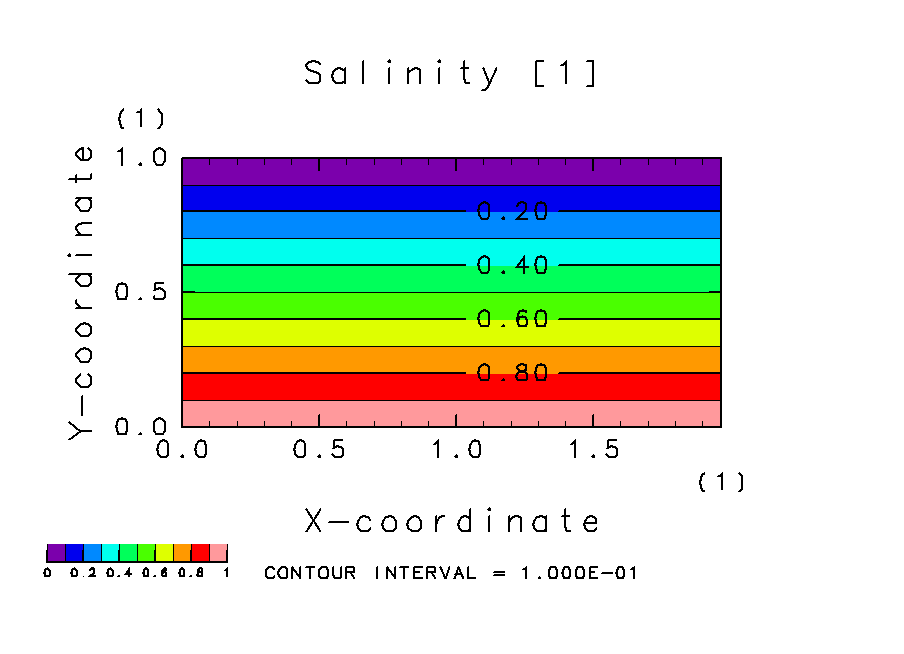

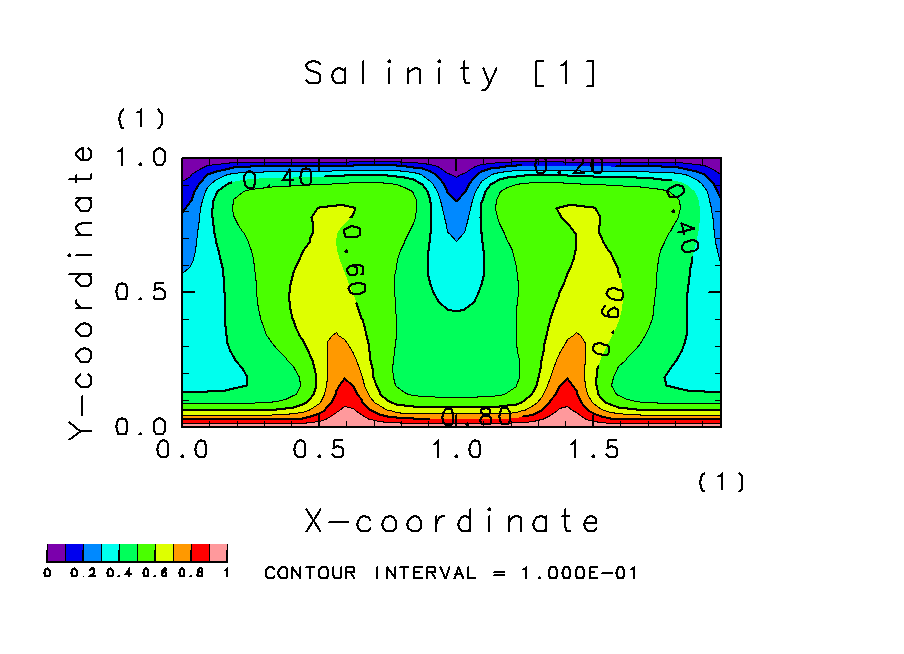

• The left figure is salinity distribution of boussinesq fluid double-diffusive convection.
• The basic stratification is stable for temperature and unstable for salinity.
• On the lower and upper boundary, temperature and salinity is fixed and tangential stress is equal to zero (free-slip boundary condition).
• The horizontal boundary condition is cyclic.
• Click figure to start movie.
• See also result of laboratory experiment presented by Atmosphere and Ocean in a Laboratory
• Source code

References

• GFD-online (S. Sakai, I, Iizawa, E. Aramaki), 1997: Atmosphere and Ocean in a Laboratory: Velvet Shanks the Grow in the Sea. http://www.gfd-dennou.org/library/gfd_exp/exp_e/doc/sf/guide01.htm
• Turner, I. S., 1973: Buoyance effects in fluids, Cambridge University Press.
